Overview

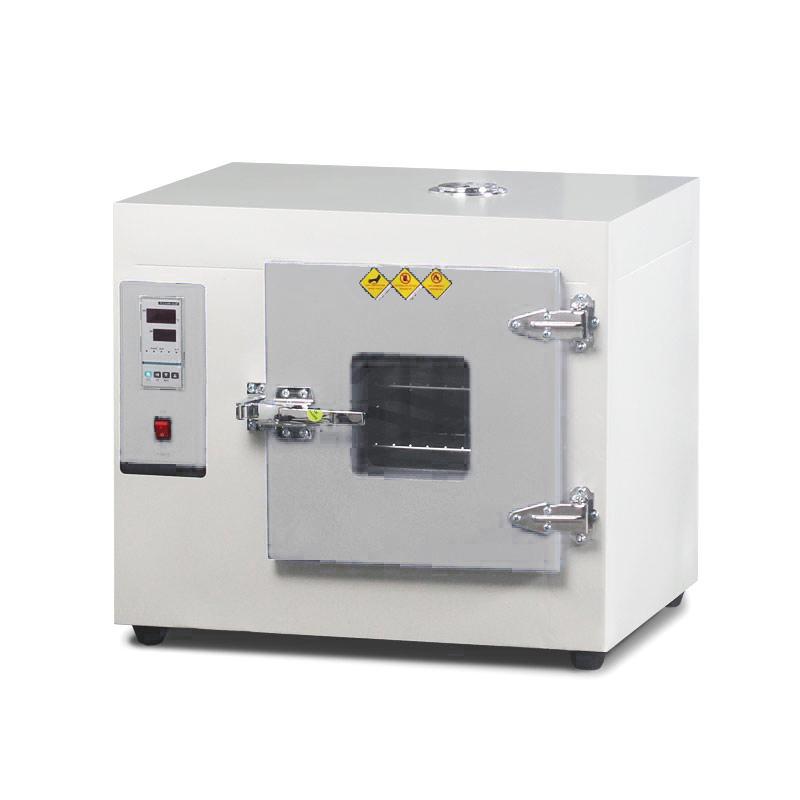

The Kenton 101-5AS digital electric air blowing dryer is a drying device with a microcomputer intelligent PID digital display thermostat. Inner chamber dimensions are 1000 × 1000 × 1000mm, Temperature range is RT + 5~ 300 ℃, Temperature Accuracy +/- 1 ℃, Fluctuation +/- 2%. The shell is sprayed with metallic paint, the liner is made of stainless steel, and it is equipped with a hot air circulation system and a double-decked tempered Glass observation window. It is suitable for general applications such as drying, baking, heat treatment, etc.
Features
1. The thermostat can be selected from Dial or microcomputer intelligent PID digital display of two types;
2. The shell is sprayed with metallic paint, and the overall design is beautiful and elegant;
3. The hot air circulation system consists of low-noise fans and air ducts;
4. The liner is divided into two types: mirror stainless steel and galvanized steel plate;

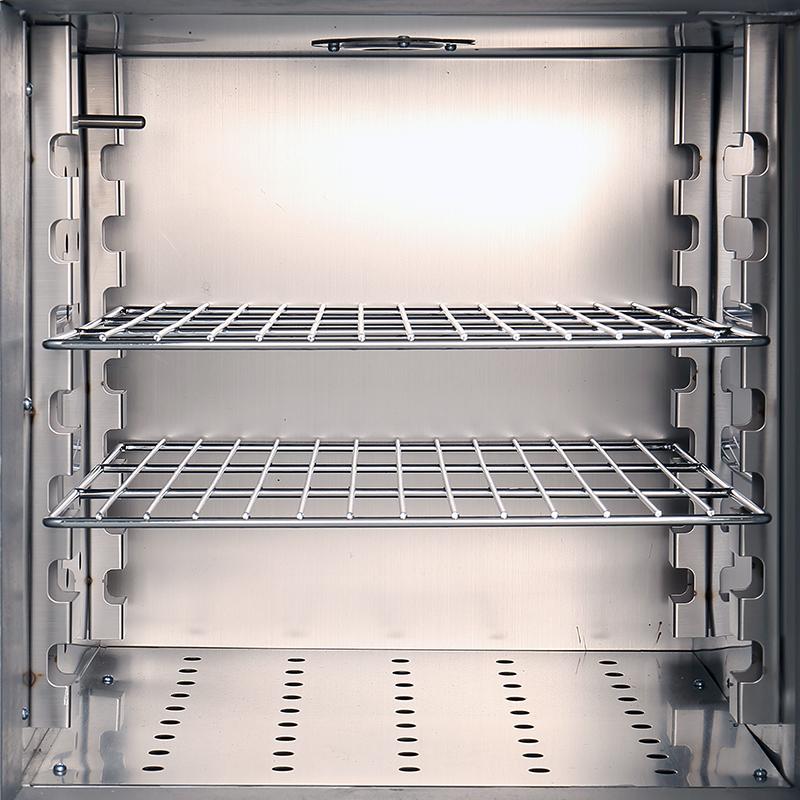

5. The height and quantity of shelves in the studio can be adjusted to facilitate access to samples of different specifications;

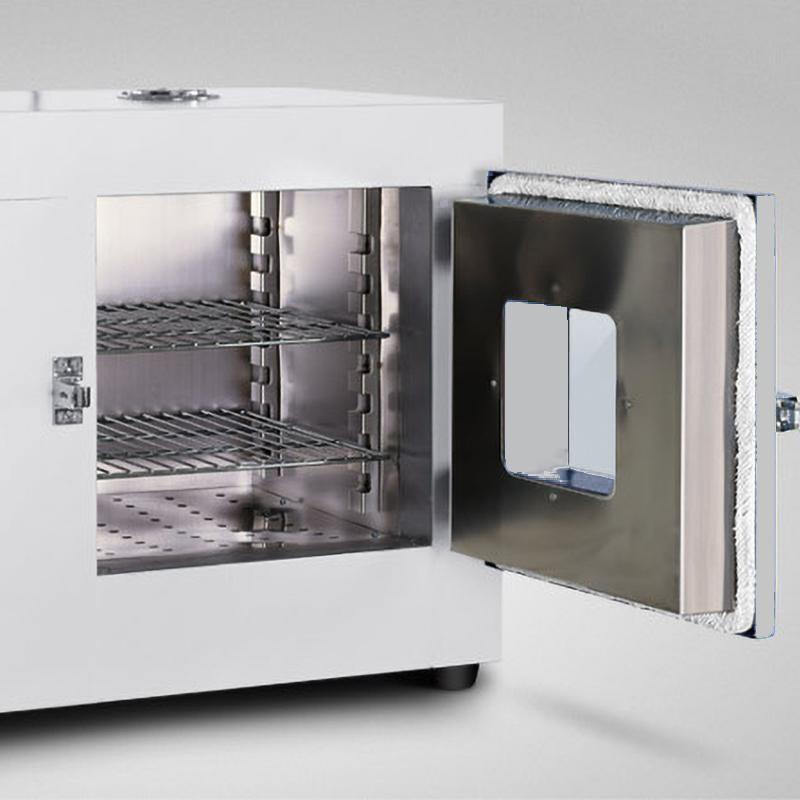

6. The box door is equipped with a double-decked tempered Glass observation window, which can clearly observe the contents of the box;
7. Optional accessories include intelligent digital temperature controller with timing function and independent temperature controller.
Principle
The drying oven is heated by an electric heating element and combined with a hot air circulation system (composed of a low-noise fan and an air duct) to force air flow to ensure uniform temperature distribution in the box. The microcomputer intelligent PID thermostat precisely adjusts the temperature to achieve stable temperature control, and is suitable for heat treatment processes such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions, basic laboratories, workshops
Steps
1. Place the device in a smooth and ventilated place and connect it to a power supply (380V).
2. Adjust the shelf height and quantity as needed;
3. Set the thermostat to the desired temperature (RT + 5~ 300 ° C).
4. Start the device and monitor the contents of the box through the observation window;
5. Turn off the power after use, and clean and maintain after chilling down.
Notice
• Suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops, and uninterrupted use for a long time is not recommended.
• Temperature uniformity requirements and high water content of the sample is not recommended;
• For more expensive samples, it is recommended to install an independent temperature limiting controller;
• Not suitable for volatile, flammable, explosive and other items to avoid explosion;
• Power supply voltage matching (380V) before use to avoid overload;
• Pay attention to high temperature during operation to prevent burns;
• Regularly check the hot air circulation system and thermostat functions to ensure safe operation.
