Overview

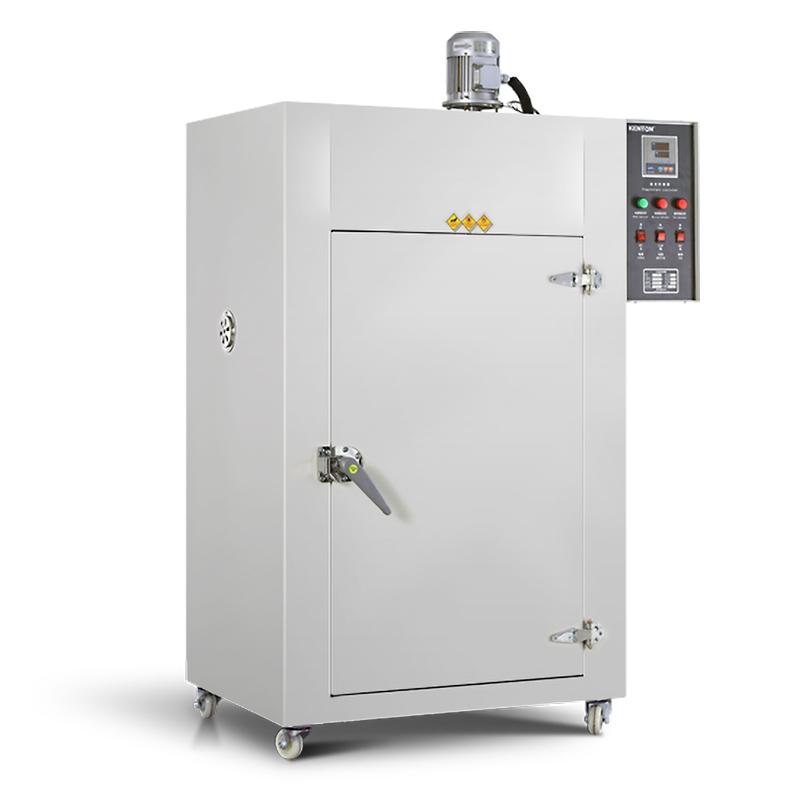

KH-100A digital display industrial air drying oven is a large industrial oven, using digital display intelligent PID self-tuning temperature control technology, equipped with large diameter centrifugal wind wheel, high power motor and multiple sets of electric heating tubes, rapid heating, uniform heat flow, can be used for a long time, high stoving efficiency. Suitable for batch dehydrating and drying of industrial products, suitable for mass production in industrial and mining enterprises and workshops.
Features
1. Digital display intelligent temperature controller with microcomputer PID self-tuning and timing functions;
2. Large diameter centrifugal wind turbine, uniform heat flow;
3. The shell is painted with metallic paint, which is beautiful and novel.
4. The liner can be galvanized steel or stainless steel;
5. Large storage capacity, Heating time is fast;
6. Standard aluminum shell motor, high temperature silicone door seal, progressive locking door buckle and thickened loose-leaf door are thicker, the box structure and steel plate material are thicker, and the high temperature resistant material heating pipe and familiar brand electrical components are used, which are more durable.
Principle
The large diameter centrifugal wind wheel is driven by a high-power motor to form an optimized air supply circulation air duct, so that the heat can circulate evenly in the box. The electric heating tube is rapidly heated, combined with the intelligent PID self-tuning temperature control system, the temperature is accurately adjusted to achieve efficient drying.
Applications
Eletroplating industry, electronics industry, alloy jewelry dripping oil, food plastic industry, leather industry, Hardware and other production industries
Steps
1. Connect the power supply and ensure that the voltage is 380V.
2. Open the box door and place the materials to be dried;
3. Close the box door and use the progressive locking door buckle to ensure sealing;
4. Set the temperature (RT + 5~ 250 ° C) and timing time (0~ 99h);
5. Start the equipment and monitor the running status.
6. After drying, turn off the power and remove the material.
Notice
• It is strictly forbidden to put flammable, explosive and volatile items to avoid explosion;
• For high-value materials, it is recommended to install an independent temperature limiter, set the maximum temperature limit, and double insurance;
• If there is an explosion-proof demand, it is necessary to install explosion-proof locks and explosion-proof doors and other safety facilities;
• Power supply voltage matching to avoid overload;
• Regularly check equipment sealing and electrical components to ensure safe operation.
