Overview

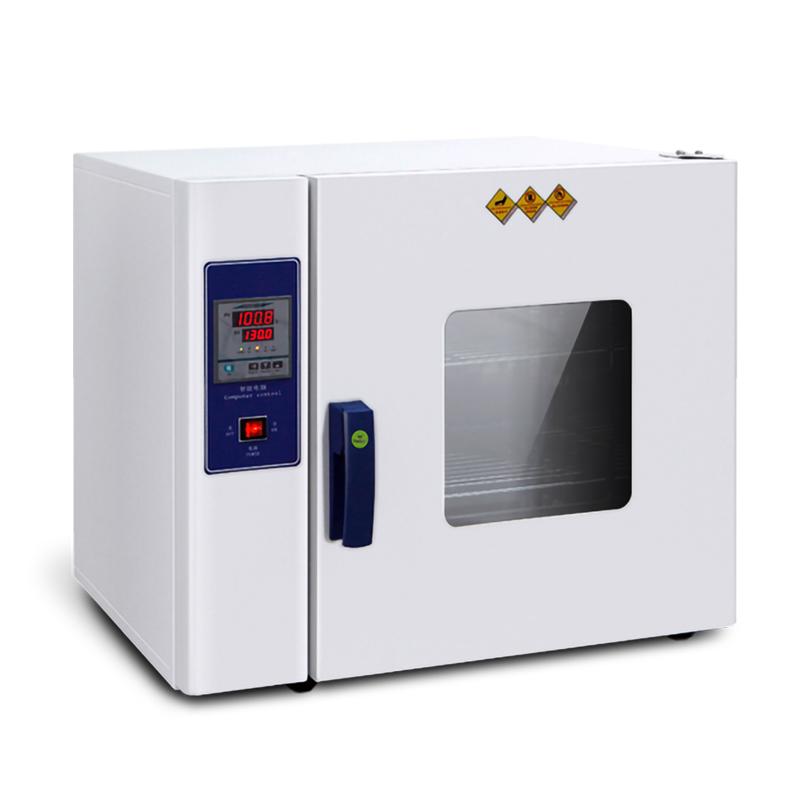

Kenton DHG-9230C thermostatic drying oven is a laboratory equipment using a microcomputer PID intelligent Control system. It has the characteristics of high Temperature uniformity and easy operation. It is suitable for laboratories and R & D institutions with high temperature control requirements.
Features
1. Adopt precision LCD microcomputer intelligent PID control technology, optional digital display, the system has temperature control, timing, over-temperature alarm function, with RS485 microcomputer interface (digital display does not have this interface);
2. Standard brand with cooling fan, maintenance-free, high durability, combined with good air duct design to ensure uniform temperature in the working cavity;
3. Mirror stainless steel liner, with anti-acid and alkali, anti-corrosion and other characteristics;
4. Cold rolled steel plate with good electrostatic spray treatment, the overall design is beautiful and novel, and has a large viewing window;
5. The shelf spacing and shelf number in the working room can be adjusted to facilitate access to samples of different specifications;
6. Using high temperature silicone as the sealing edge of the door, high temperature heating tube as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle, easy to operate, and ensure sealing.
Principle
The temperature is precisely controlled by the microcomputer PID intelligent automatic Control system, combined with the high temperature heating tube as the heating element, and the fan and air duct are designed to achieve uniform temperature distribution in the working cavity to ensure the thermostatic drying effect.
Applications
Drying process, sterilizing, thermostatic storage, heat treatment
Steps
1. Connect the power supply and ensure that the voltage is single-phase AC220V/50Hz;
2. Set the required temperature (RT + 5~ 250 ° C) and timing time (0~ 999min) through the microcomputer controller;
3. Place the sample in the studio, and adjust the shelf spacing and quantity to adapt to different specifications;
4. Start the equipment and monitor temperature fluctuations and operating conditions.
5. Turn off the power after use and clean the equipment.
Notice
• Modern intermediate and advanced laboratories are recommended for users with high Temperature uniformity;
• For more expensive samples, it is recommended to install an independent temperature limiting controller;
• Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box;
• For high-value materials to be heated, it is better to install an independent temperature limiter, set the maximum temperature limit, and double insurance to ensure that the material will not be damaged due to the failure of the electronic components of the box and the overheating;
• Not suitable for volatile, flammable, explosive and other items to avoid explosion;
• Environmental humidity should be less than 70% RH.
