Overview

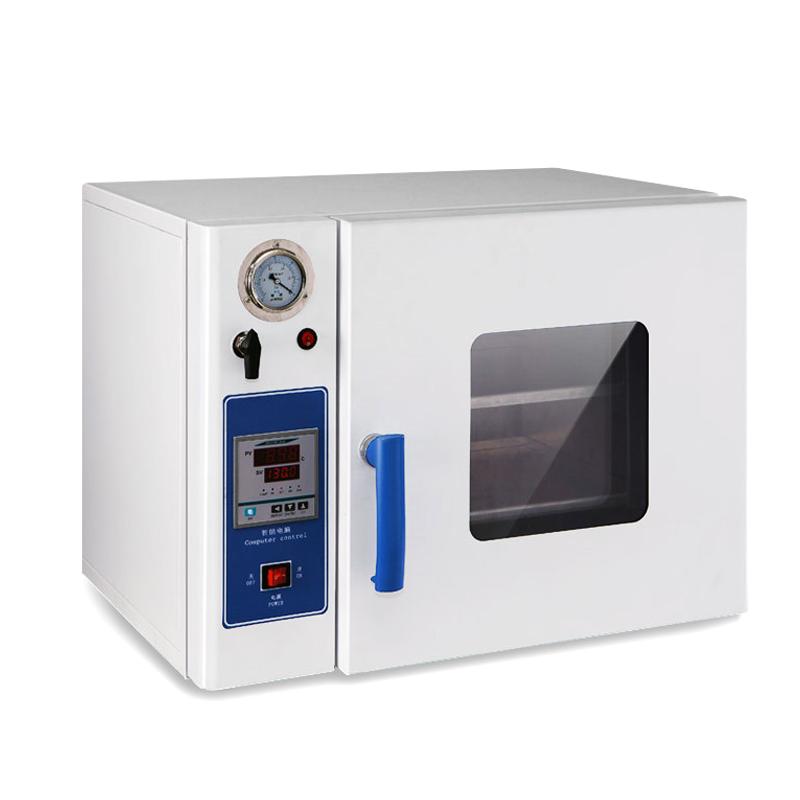

The Kenton DZF-3020S Vacuum oven is a device for drying heat-sensitive substances, powders or granular samples. It reduces the boiling point of liquids in a vacuum environment for fast and efficient drying.
Features
1. Vacuum environment reduces liquid boiling point, suitable for heat-sensitive substances and non-drying samples, shortening drying time
2. Vacuum inert conditions eliminate the risk of thermal explosion of oxides
3. The powder sample will not be blown away when drying
4. liner streamline arc design, shell Cold rolled steel plate electrostatic spraying

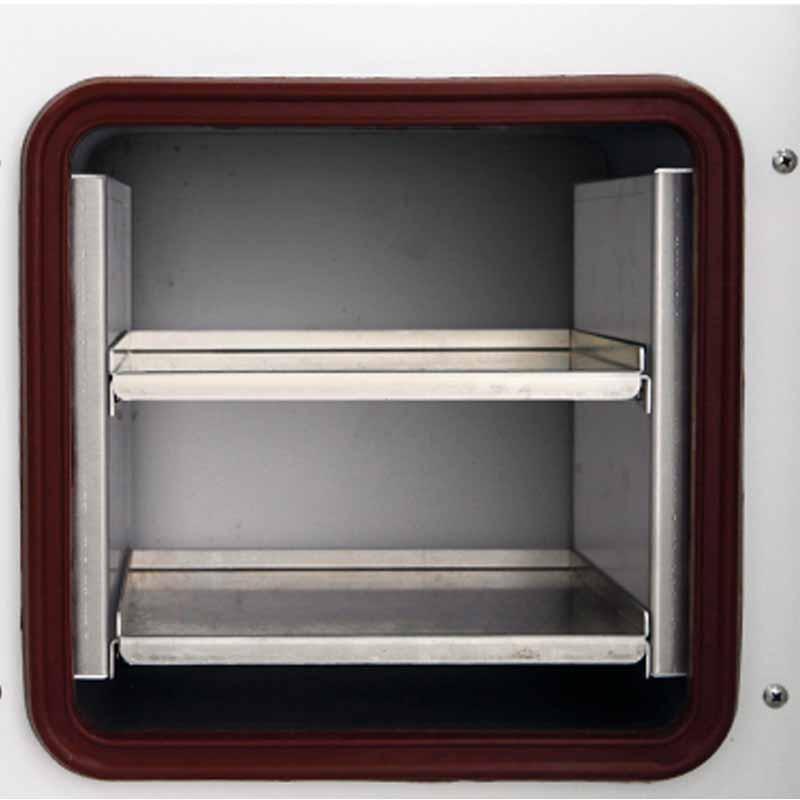

5. liner stainless steel or Cold rolled steel plate, semi-circular four corners easy to clean
6. Door elastic and adjustable, integrally formed silicone rubber door seal to ensure high Vacuum Level
7. Microcomputer intelligent PID control with timing and over-temperature alarm function
8. Tempered explosion-proof double-decked Glass Door for Easy Viewing of Studio
9. Different series of Heating modes, DZF-30 series can independently set the temperature of each layer
Principle
Vacuum ovens allow heat-sensitive substances to dry rapidly at lower temperatures by creating a vacuum environment that lowers the boiling point of liquids. Under vacuum inert conditions, oxides are prevented from exploding with heat and powder samples are prevented from being blown away.
Applications
Biochemistry, chemical industry, agricultural research, environment protection, powder drying, baking, Glass container sterilization and sterilization
Steps
1. Put the sample in the studio.
2. Adjust the tightness of the box door to ensure sealing
3. Set the required temperature and time parameters
4. Start the equipment for drying
5. Remove the sample after drying
Notice
• Make sure the door is well sealed to maintain Vacuum Levels
• Avoid exceeding the upper limit of 200 ° C when setting the temperature
• Regularly clean the four corners of the semi-circular liner
• Power supply voltage check compliance with single phase AC220V/50Hz before use
• Pay attention to the over-temperature alarm function to prevent the equipment from overheating
