Overview

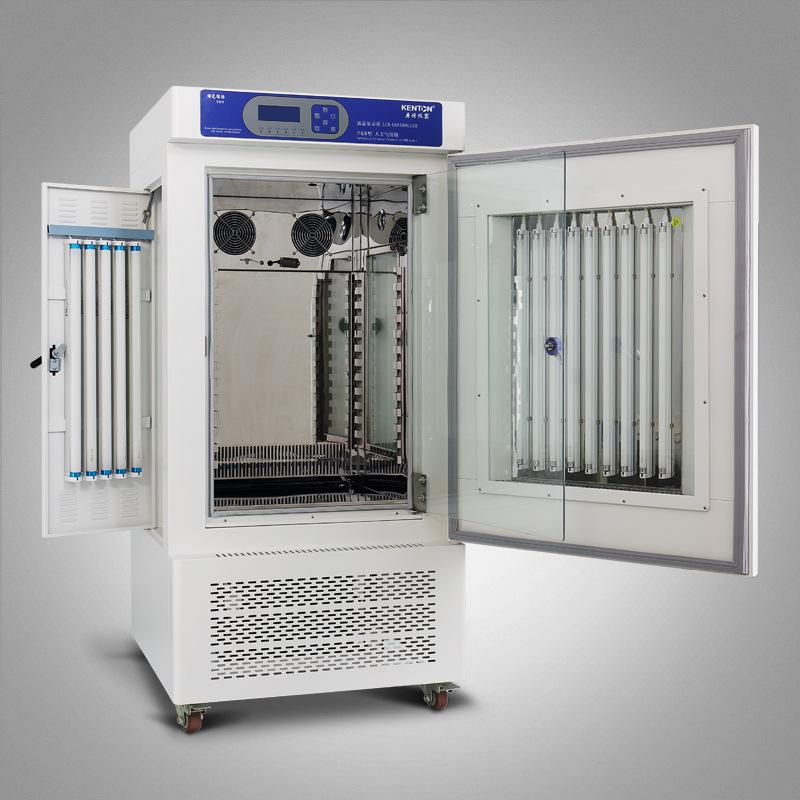

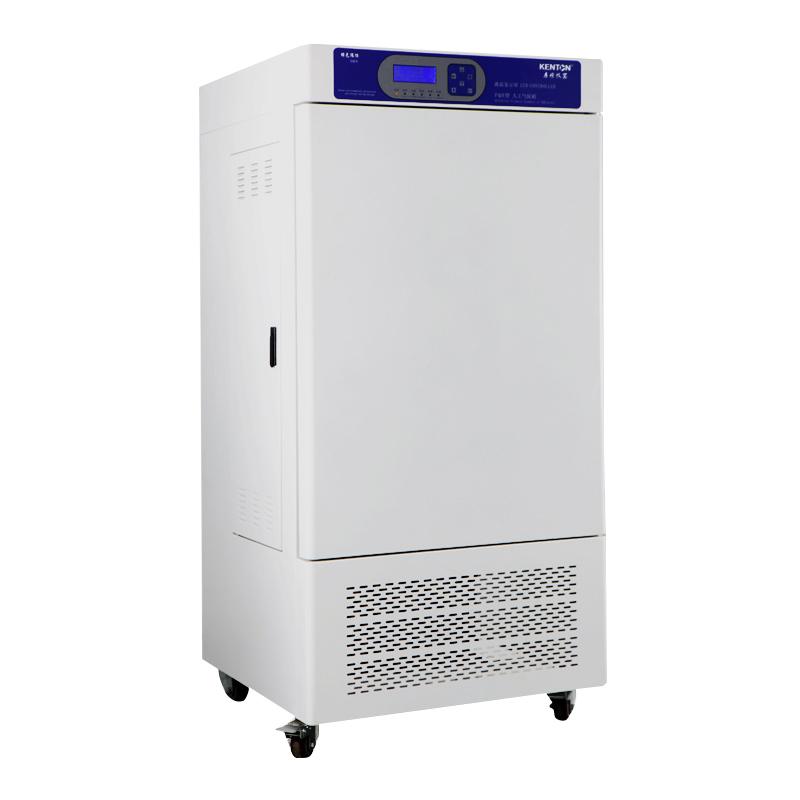

Kenton GZP-350S light chamber is an environmental testing equipment specially designed for biological, agriculture, animal husbandry, forestry, environment science and other scientific research departments. It is suitable for plant seed germination, seedling cultivation, bacteria, microbial foster and preservation, small animals, insects, product mass detection and other purposes of light, thermostatic experiments, can simulate the natural climate environment, simulate day and night through light control, Humidity and temperature in the box can be adjusted constant.
Features
1. Equilibrate refrigeration, so that the temperature fluctuation is small, and automatic defrosting, multi-layer Safety protection, to meet the needs of long-term operation, equipped with international good brand Compressor, with delay protection function, smooth operation;
2. Introduce the concept of green environmental protection and use fluorine-free R134 refrigerant to make the system more energy-saving, effective and make the environment healthier;
3. The temperature control system adopts an upgraded LCD screen, programmable microcomputer intelligent PID control technology, and has timing and ultra-high temperature alarm functions.
4. Unique air circulation, soft wind speed, to ensure Temperature uniformity;
5. Illumrination degree five adjustable, liner are mirror stainless steel material, shelf upper and lower spacing adjustable;

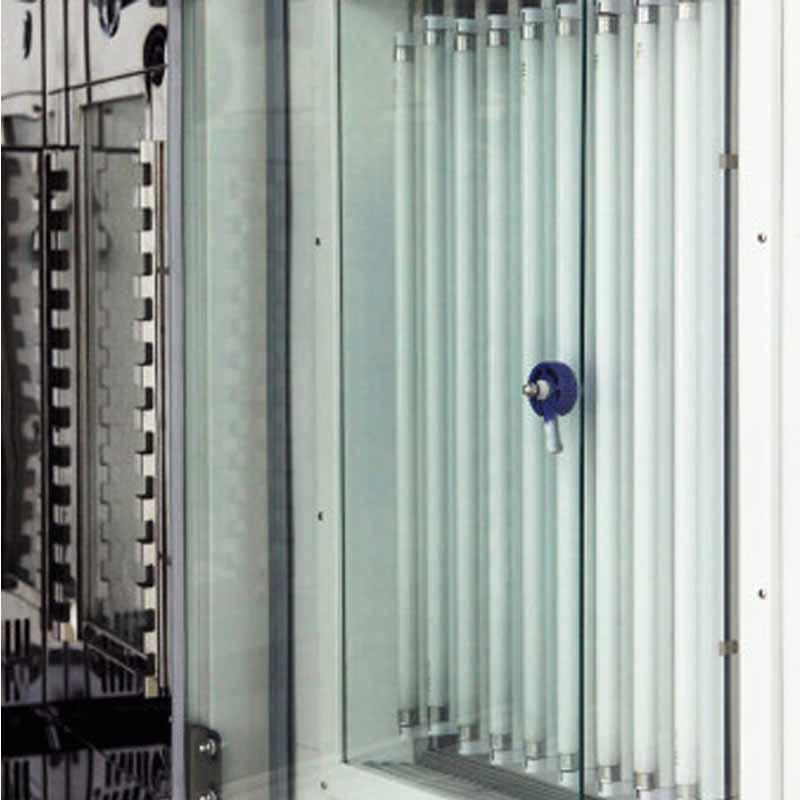

6. Double door design, built-in tempered Glass observation window, can clearly observe the contents of the box;
7. Artificial climate box adopts built-in large-capacity intelligent humidification system, and the external water tank automatically replenishes water.
Principle
The light chamber precisely adjusts the temperature in the box through the equilibrated refrigeration system and the microcomputer intelligent PID control technology to ensure that the temperature fluctuation is small and uniform. The lighting system can simulate the natural day and night changes, and the Illumrination degree can be adjusted at five levels. Combined with the built-in intelligent humidification system, a constant Humidity environment is maintained, providing stable light and thermostatic conditions for the experiment.
Applications
Seed germination of plants, seedling cultivation, fostering and preservation of bacteria and microorganisms, small animals, insect feeding, mass testing of products, light and thermostatic experiments for Miscellaneous uses, biological research, agricultural and animal husbandry research, forestry research, environment science research
Steps
1. Connect the power supply and ensure that the voltage is 220V.
2. Set the required temperature, Illumrination degree and Humidity parameters through the LCD screen;
3. Start the equipment, observe the operating status, and ensure that the temperature is uniform and stable.
4. Regularly check the external water tank to ensure that the automatic replenishment is normal.
5. After the experiment, turn off the power and clean the liner.
Notice
• Power supply voltage check before use meets 220V requirements;
• Avoid ultra-high temperature when setting parameters to prevent alarm triggering;
• Maintain the Compressor regularly to ensure that the delay protection function is normal;
• Use a soft cloth to wipe the mirror stainless steel liner when cleaning to avoid scratches;
• Through the tempered glass window when observing the contents of the box, avoid frequent opening of the door to affect the temperature Stability;
• Long-term operation needs to ensure that the environment is ventilated to prevent overheating.
