Overview

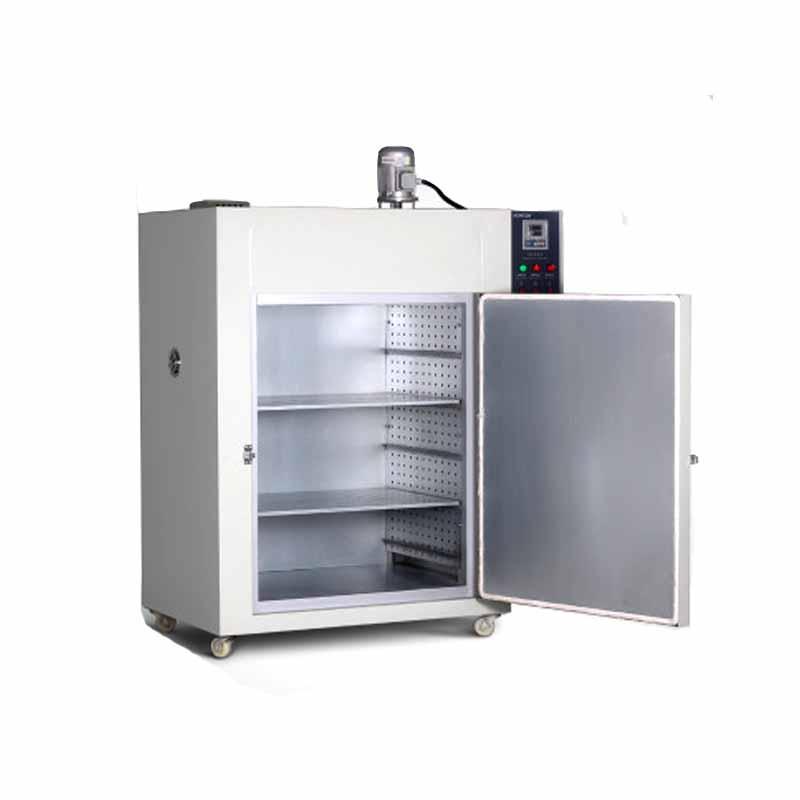

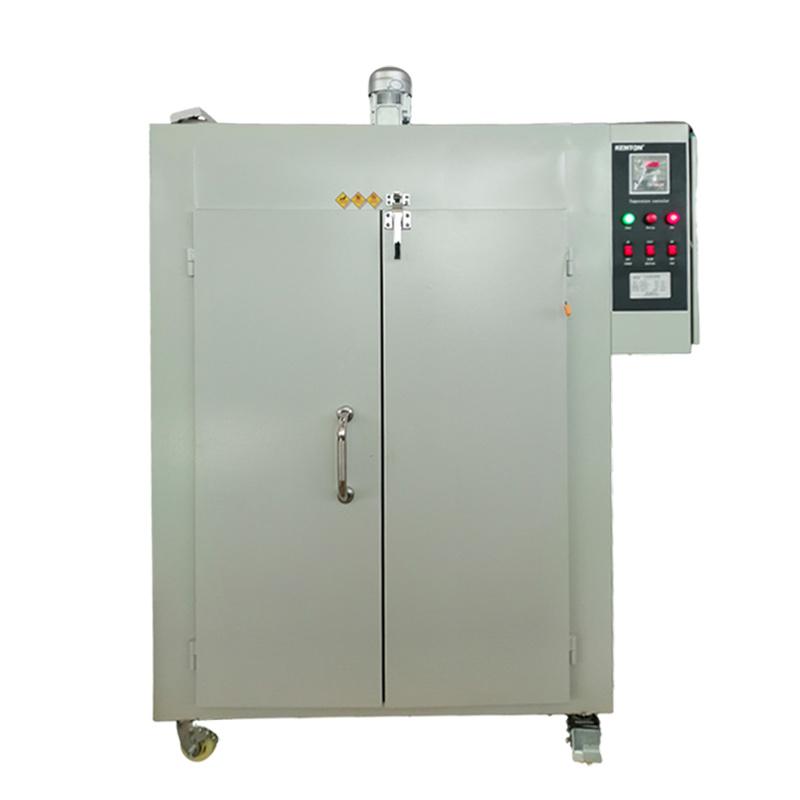

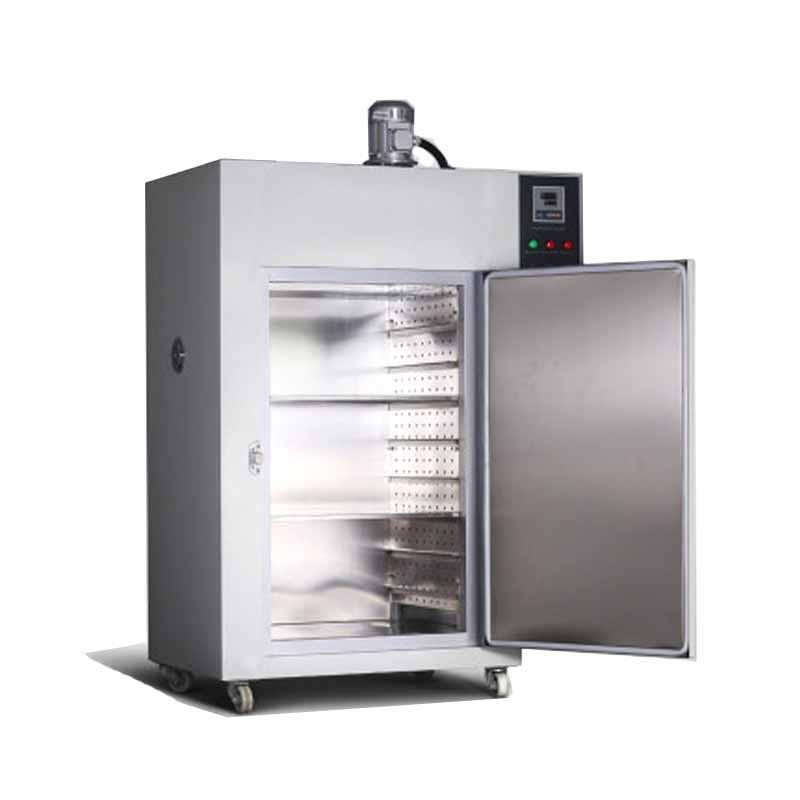

KH-120C digital display industrial air drying oven is a large industrial oven with digital display intelligent PID self-tuning temperature control. It has the characteristics of large storage capacity, rapid heating and uniform heat circulation, and can be efficiently stoving for a long time. It is suitable for batch dehydration and drying of industrial products, and is suitable for mass production in industrial and mining enterprises and workshops.
Features
1. Digital display intelligent temperature controller with microcomputer intelligent PID self-tuning and timing function
2. Large diameter centrifugal wind turbine, uniform heat flow
3. The shell is sprayed with metallic paint, which is beautiful and novel
4.The liner can be galvanized steel or stainless steel
5. Large storage capacity and fast heating time
6. Optional single or double door design, practical and generous
Principle
The drying oven drives a large-diameter centrifugal wind wheel through a high-power motor, combines multiple sets of electric heating pipes to heat, and optimizes the air supply circulation air duct to circulate heat evenly and achieve efficient drying. The intelligent PID self-tuning temperature control system precisely adjusts the temperature to ensure stable operation.
Applications
Eletroplating industry, electronics industry, alloy jewelry dripping oil, food plastic industry, leather industry, Hardware and other production industries
Steps
1. Connect the 380V power supply
2. Set the required temperature (RT + 5~ 250 ° C) and timing time (0~ 99h)
3. Start the device to start heating
4. Monitor Temperature Fluctuation （ +/- 2%) and Accuracy （ +/- 0.5 ° C)
5. Power off after stoving
Notice
• It is strictly forbidden to put flammable, explosive and volatile items
• It is recommended to install an independent temperature limiter when heating high-value materials
• Not suitable for highly volatile, flammable and explosive items
• If there is an explosion-proof demand, an explosion-proof lock and an explosion-proof door need to be installed
• Be aware that the electronic components of the box may fail, resulting in excessive heating
