Overview

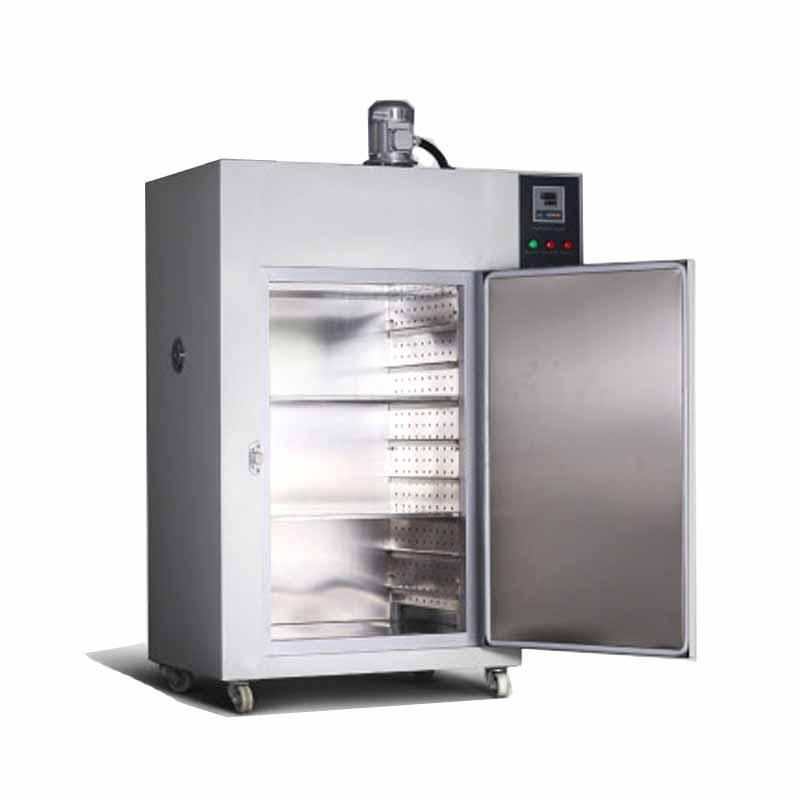

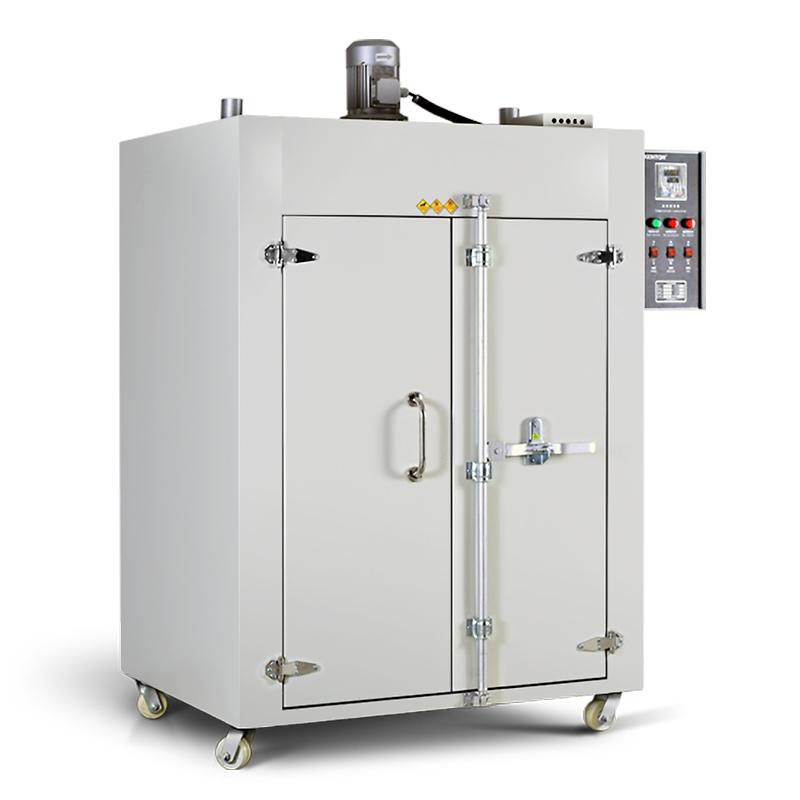

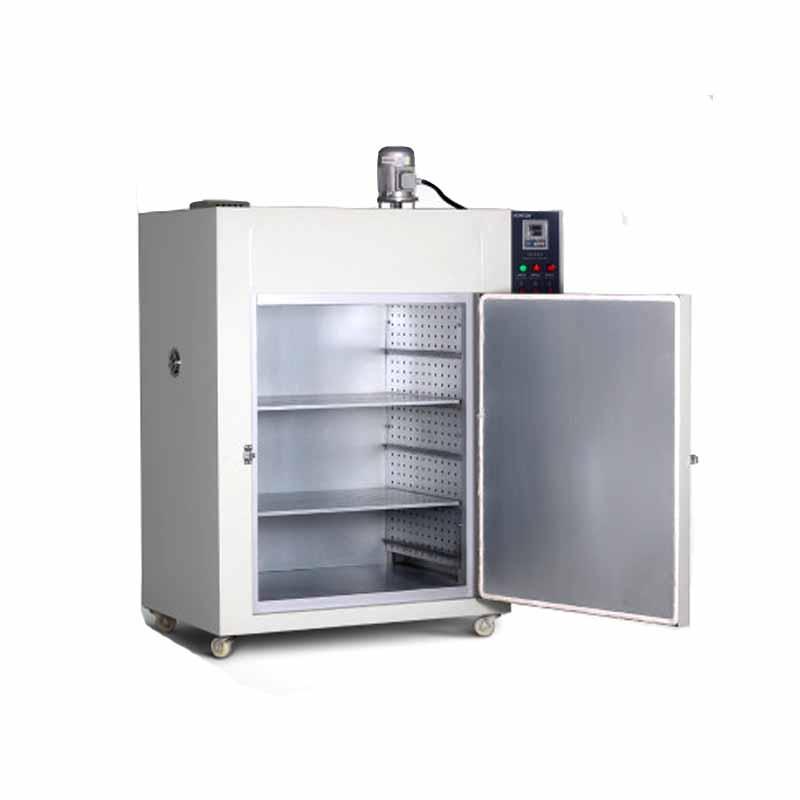

Kenton KH-120AS digital display industrial air drying oven is a mass production equipment specially designed for industrial and mining enterprises and workshops, supporting long-term uninterrupted use. It adopts digital display intelligent temperature controller and microcomputer PID self-tuning technology, Temperature range RT + 5~ 250 ℃, Temperature Fluctuation +/- 2%, Accuracy +/- 0.5 ℃, Inner chamber dimensions 1200 * 900 * 800mm, the outer box is sprayed with metal paint, the overall appearance is practical.
Features
1. Digital display intelligent temperature controller with microcomputer intelligent PID self-tuning and timing functions;
2. Single door or double door design, flexible choice according to the size of the box;
3. Large diameter centrifugal wind turbine to ensure uniform heat flow.
4. The shell is painted with metallic paint, which is beautiful and novel.
5. The liner can be galvanized steel or stainless steel;
6. Large storage capacity and fast heating time.
Principle
The drying oven precisely controls the temperature through digital display intelligent temperature controller and microcomputer PID self-tuning technology, and uses large diameter centrifugal wind wheels to force hot air circulation to ensure uniform heat distribution inside the studio and achieve efficient dehydrating and drying process.
Applications
Eletroplating industry, Electronics industry, Alloy jewelry dripping oil, Food plastic industry, Leather industry, Hardware
Notice
- Flammable, explosive and volatile items are strictly prohibited from being heated and dried in the box;
When heating high-value materials, it is recommended to install an independent temperature limiter and set the maximum temperature limit.
- It is not suitable for highly volatile, flammable and explosive items. If there is an explosion-proof demand, an explosion-proof lock and an explosion-proof door need to be installed.
