Overview

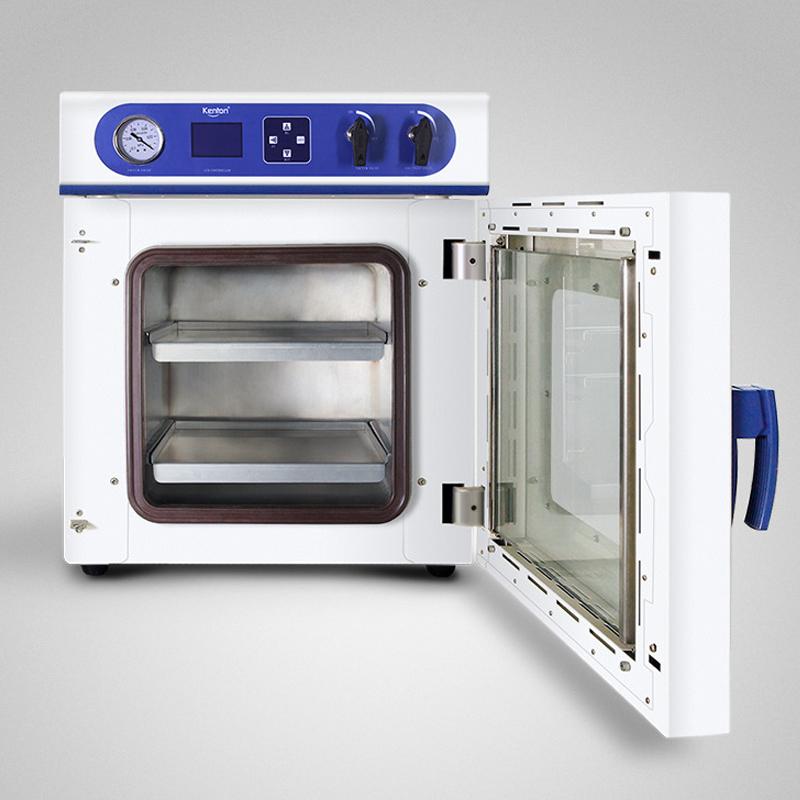

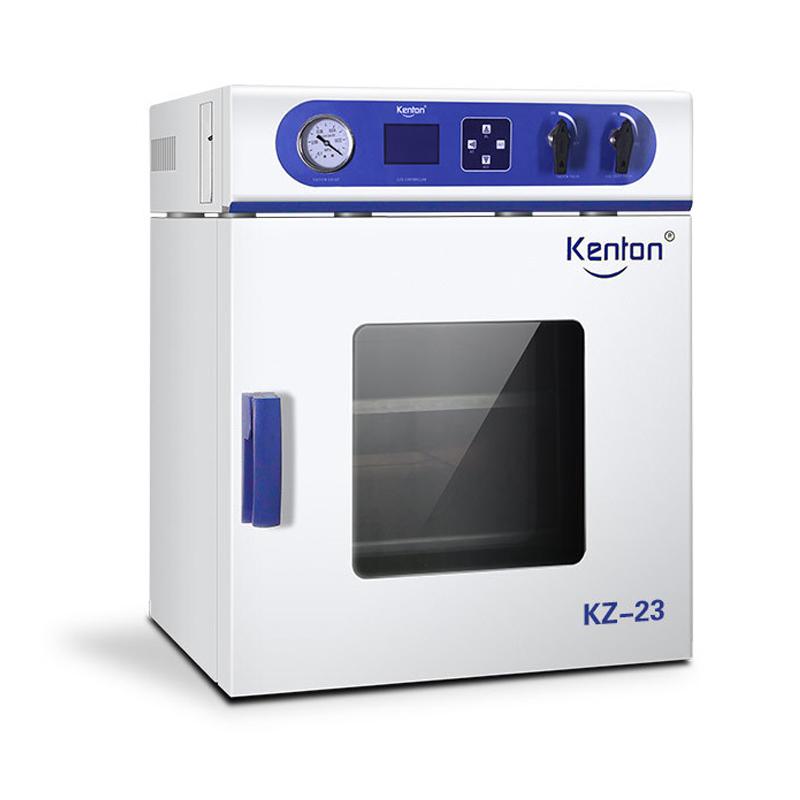

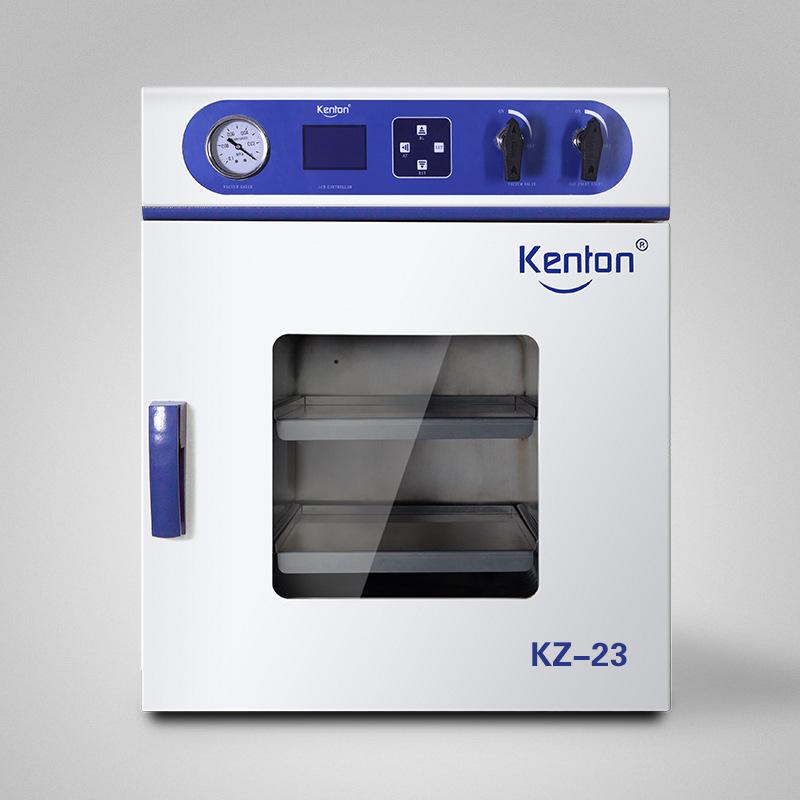

HENGLI KZ-23G Vacuum oven is specially designed for drying heat sensitive and easy oxidation substances, especially suitable for powder or granular samples, which can effectively shorten the drying time. Using ALLHEAT ™ cavity preheating technology, S. H-Transfer ™ shelf heat transfer technology to ensure uniform temperature distribution in the cavity, suitable for biological, industrial, agricultural research and other fields. The product has passed the European Union CE safety certification, complies with the Australian AS/NZS3350 standard, and provides a 2-year mass warranty.
Features
1. ALLHEAT ™ cavity preheating technology, the heating elements are evenly distributed to achieve uniform temperature distribution and low energy consumption.
2. ALLFLOW ™ air circulation system to ensure quick recovery of temperature after opening the door, adjustable wind speed, with fan switch function.
3. ALLSENS ™ microcomputer PID control technology, integrated LCD display, supports Chinese and English display, adaptive PID control, precise temperature control, user password control, RS485 interface can connect multiple devices.
4. Pro-Insulation ™ isolation and insulation technology, liner and shell are completely isolated, using high-density insulation materials, effective thermal insulation.
5. Original imported industrial grade PT100 temperature transducer, Response is fast, self-heating effect is small.
6. Ergonomic design, circular arc structure, adjustable movable mesh Shelf, double door design (incubator series).
7. Easy to clean, arc liner is easy to clean, activity can be extracted Shelf design.
8. Easy to maintain, LCD control appliance diagnostic function, the inner cavity is made of SUS304 stainless steel, and the electrical components are easy to maintain.
9. Multiple safety protection, including abnormal parameter alarm, automatic double temperature protection, UL certified electronic components, explosion-proof tempered Glass observation window.
Principle
Vacuum oven uses ALLHEAT ™ cavity pre-heating technology, the heating element is evenly distributed around the inner tank, the inner wall of the inner cavity is pre-heated, through heat transfer and forced fan convection, to ensure that the temperature of each point in the cavity accurately reaches and maintains the set value, to achieve uniform temperature distribution. ALLFLOW ™ air circulation system to ensure rapid recovery of temperature after opening the door, with microcomputer PID control technology to accurately control temperature, prevent temperature overshoot, maintain a constant environment.
Applications
Biology, business, agricultural research
Standards
European Union CE safety certification, Australian AS/NZS3350 standard, German DIN 12880 Class3.1, international IEC 61010-1, US UL 61010-1, European Union EN 61010-1
Steps
1. Connect the power supply and ensure that the voltage is single-phase AC220V/50Hz.
2. Open the device and select the Chinese or English interface through the integrated LCD display.
3. Set the temperature range (RT + 50~ 250 ℃), Timer Range (0~ 99 hours or 0~ 9999 minutes) and other parameters.
4. Adjust the wind speed and fan switch as required.
5. Place the sample on the movable mesh Shelf, close the door and ensure sealing.
6. Start the equipment, monitor the temperature, wind speed and other conditions, and connect multiple devices through the RS485 interface for real-time monitoring.
7. After the experiment, turn off the equipment and clean the lumen and Shelf.
Notice
• Before operation, make sure that the Ambient Temperature is at RT + 10~ 30 ℃ and the humidity is < 70%.
• Avoid use under conditions where voltage fluctuations exceed +/- 10%.
• Regularly check door seals and isolation devices to ensure sealing.
• Use mild detergent when cleaning to avoid damage to the stainless steel cavity.
• Pay attention to the location of electrical components during maintenance to avoid the risk of electric shock.
• In case of abnormal alarm during use, immediately stop operation and check.
• The observation window is made of explosion-proof tempered Glass to avoid violent impact.
