Overview

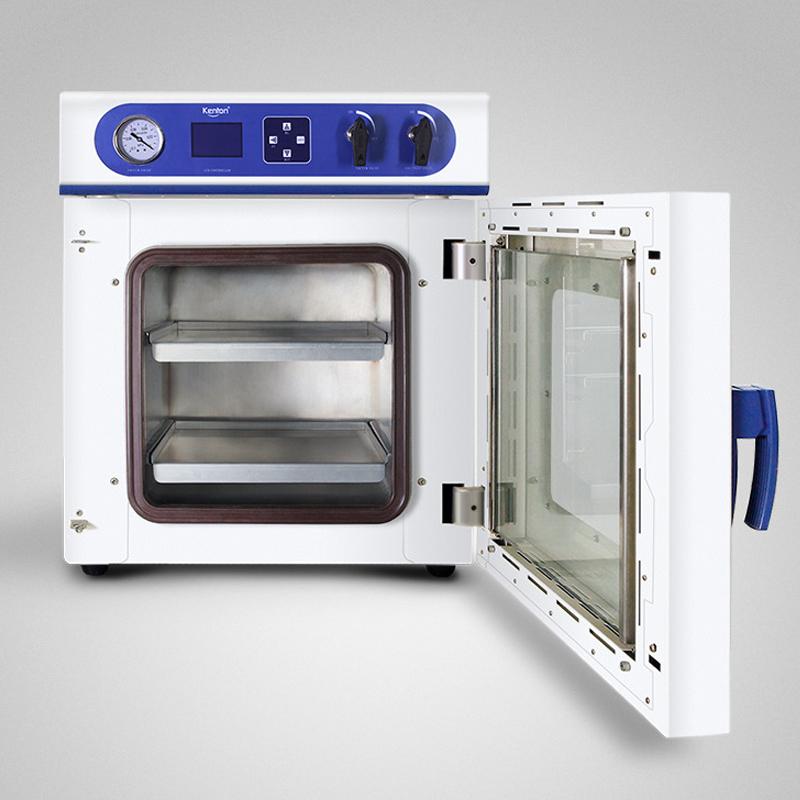

HENGLI KZ-50G Vacuum oven is specially designed for drying heat-sensitive and easily oxidized substances, especially suitable for powdery or granular samples, effectively shortening the drying time. Using professional technologies such as ALLHEAT ™ cavity preheating technology, S. H-Transfer ™ shelf heat transfer, etc., to ensure uniform and constant temperature distribution in the cavity, suitable for biological, industrial, agricultural research and other fields. The product has passed the European Union CE safety certification, complies with the Australian AS/NZS3350 standard, and provides Chinese/English IQ, OQ, PQ and a variety of verification services.
Features
1. Using ALLHEAT ™ cavity preheating technology, the heating elements are evenly distributed to ensure uniform temperature distribution, low energy consumption, and heat energy is not easy to lose.
2. Equipped with ALLFLOW ™ air circulation system to ensure quick recovery of temperature after opening the door, adjustable wind speed, with fan switch function.
3. Integrated ALLSENS ™ microcomputer PID control technology, LCD point array large screen display, support Chinese and English, adaptive PID control, precise temperature control, prevention of temperature overshoot.
4. User password control, built-in multi-function memory menu, RS485 interface can connect multiple devices for real-time monitoring, and the time setting range is wide.
5. Adopt Pro-Insulation ™ isolation insulation technology, high-density imported insulation materials, silicone door seals and isolation door hinge design to ensure sealing.
6. Original imported industrial grade PT100 temperature transducer, Response is fast, self-heating effect is small.
7. Ergonomic structural design, circular arc liner, adjustable movable mesh Shelf, double door design (incubator series), easy to operate and observe.
8. Easy to clean, arc liner is easy to clean, activity can be extracted Shelf design.
9. Easy to maintain, LCD control appliance diagnostic function, inner cavity SUS304 stainless steel material, electrical components installed in the upper part of the box.
10. Multiple safety protection, including abnormal parameter alarm, automatic double temperature protection, UL certified electronic components, explosion-proof tempered Glass observation window, etc.
Principle
Vacuum uses ALLHEAT ™ cavity preheating technology, the heating elements are evenly distributed around the inner tank, the inner wall of the inner cavity is preheated, and the temperature of each point in the cavity is accurately reached and maintained at the set value through heat transfer and forced fan convection to achieve uniform temperature distribution. ALLFLOW ™ air circulation system ensures that the temperature recovers quickly after opening the door, and cooperates with microcomputer PID control technology to accurately control the temperature to prevent temperature overshoot and maintain the constant temperature in the cavity.
Applications
Biology, business, agricultural research
Standards
European Union CE safety certification, Australian AS/NZS3350 standard, German DIN 12880 Class3.1, international IEC 61010-1, US UL 61010-1, European Union EN 61010-1
Steps
1. Connect the power supply and ensure that the voltage is single-phase AC220V/50Hz.
2. Turn on the device and select Chinese or English display through the LCD point array large screen.
3. Set the temperature range (RT + 50~ 250 ℃), time (0~ 99 hours or 0~ 9999 minutes) and Miscellaneous parameters.
4. Start the equipment and monitor the temperature, wind speed, running time, and other conditions.
5. After use, turn off the device and disconnect the power.
Notice
• Ensure that the working Ambient Temperature is at RT + 10~ 30 ℃ and humidity < 70% before operation.
• Avoid overloading and regularly check the sealing and safety devices of the equipment.
• Use appropriate tools when cleaning to avoid damage to the lumen and Shelf.
• Refer to the historical data displayed by the diagnostic function during maintenance to ensure that the electrical components are normal.
In case of abnormal alarm during use, immediately stop the operation and check the parameters.
