Overview
HENGLI CR-160 Co2 Incubator is specialized in cell fostering, microbial research, pathology academia, life sciences and other fields. It successfully creates a simulated environment similar to natural growth, uses ALLHEAT ™ cavity preheating technology to provide stable temperature, and is equipped with a professional grade infrared CO2 Sensor to ensure accurate detection of CO2 concentration. Standard ultraviolet sterilizing lamp effectively prevents cross-contamination of foster.
Features
1. ALLHEAT ™ cavity preheating technology, heating elements are evenly distributed around the liner to ensure uniform temperature distribution, low energy consumption, heat energy is not easy to lose
2. ALLFLOW ™ air circulation system to ensure quick recovery of temperature after opening the door, adjustable wind speed, with fan switch function

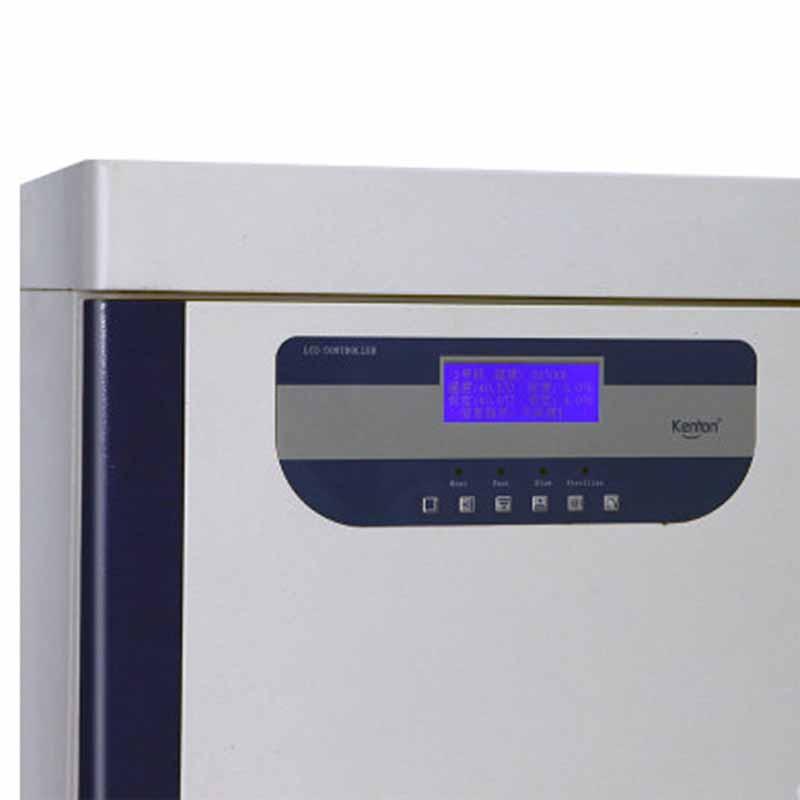

3. ALLSENS ™ microcomputer PID control technology, integrated LCD point array large screen LCD display, adaptive PID control precise temperature control, user password control, RS485 interface can connect multiple devices
4. Pro-Insulation ™ insulation technology, liner and shell complete isolation design, high density imported insulation materials, silicone door seal and isolation hinge to ensure sealing
5. Original imported industrial grade PT100 temperature transducer, Fast Response, Small Self-heating Effect

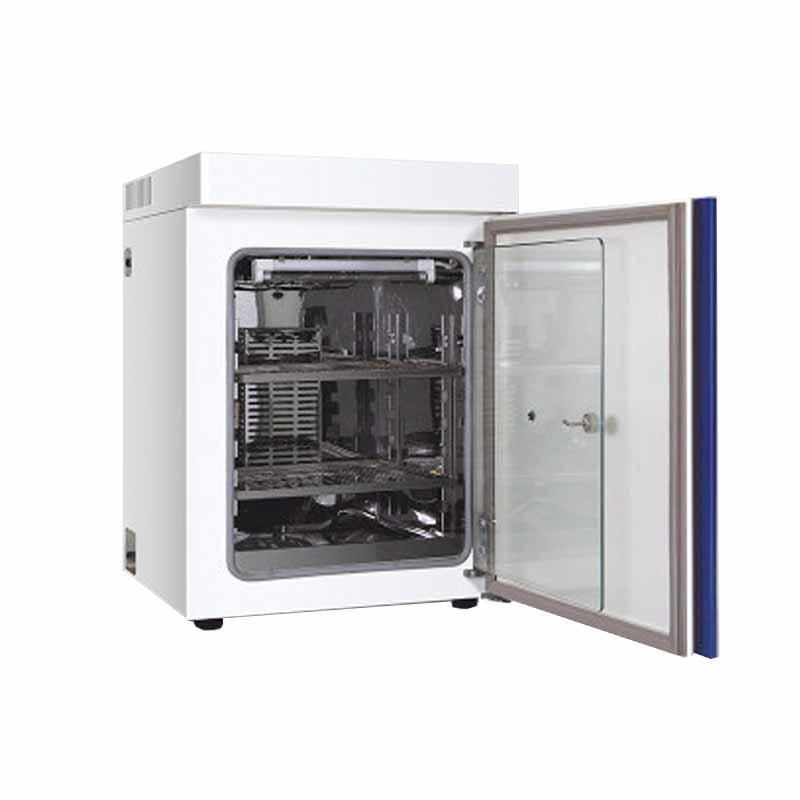

6. Ergonomic structural design, circular arc design, adjustable spacing of movable mesh Shelf, double door design
7. Easy to clean, liner minimum splicing design, activities can extract multi-layer shelves
8. Easy maintenance, LCD micro-electric control appliance diagnostic function, electrical control components main control and control panel separation
9. Safe and effective protection concept, multiple over-temperature protection functions, sound and light alarm, all electronic components have passed UL certification
Principle
ALLHEAT ™ cavity preheating technology preheats the inner wall of the inner cavity by evenly distributing the heating elements around the liner, and then through heat transfer and forced fan convection, the temperature at each point in the cavity is accurately reached and maintained at the set value to ensure uniform temperature distribution. The ALLFLOW ™ air circulation system adopts forced convection and is matched with a cooling fan to ensure continuous temperature stability in the working cavity. ALLSENS ™ microcomputer PID control technology controls the temperature accurately through the adaptive PID program to prevent temperature overshoot and keep the temperature in the cavity uniform and constant.
Applications
Cell fostering, microbiology, pathology, life sciences
Standards
Australian AS2064 standard, European Union CE safety certification, German DIN 12880 Class 3.1 standard
Steps
1. Connect the power supply and turn on the device.
2. Select Chinese or English display through LCD point formation large screen LCD display, set temperature, wind speed and other parameters
3. Use the user password control function for secure operation
4. Multiple devices can be connected through the RS485 interface for real-time monitoring
5. Set the running time (0 to 99 hours or 0 to 9999 minutes)
6. All setting operations have confirmation tone prompts
7. Optional ALLSENS ™ programmable software for microcomputer software remote control
Notice
• Ambient Temperature should be kept at 10~ 30 ℃, relative humidity below 70%
• Regularly clean the liner and use the active extractable multi-layer shelf design for maintenance
• Pay attention to multiple over-temperature protection functions, and deal with sound and light alarms in time
• Electrical control components are installed at the back of the box, and safety should be paid attention to during maintenance
• Pay attention to prevent cross-contamination when using ultraviolet sterilizing lamps
Equipment comes with a 2-year mass warranty
