Overview

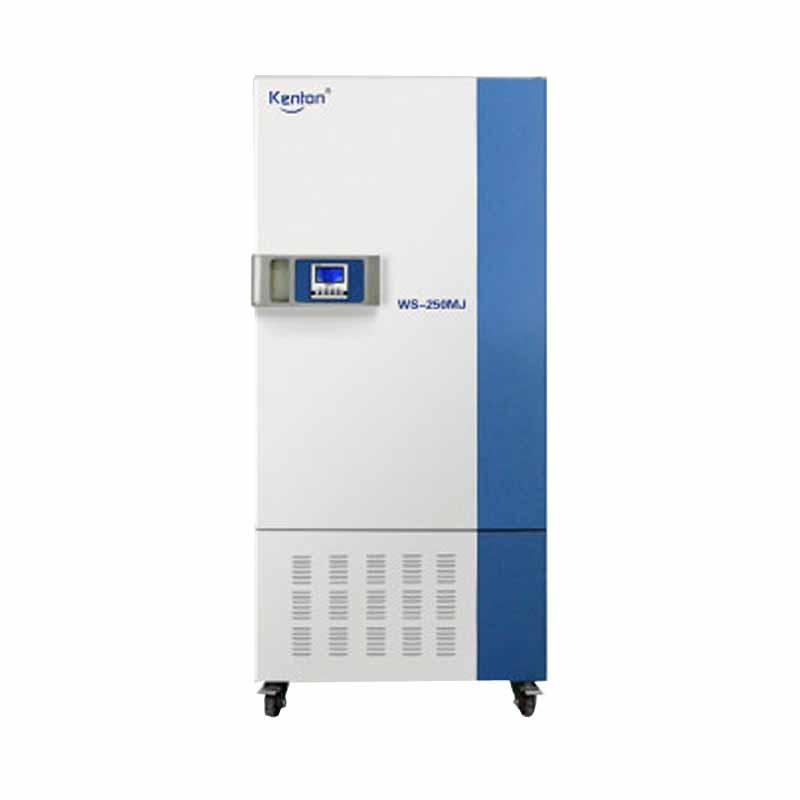

HENGLI WS-250 Constant Temperature and Humidity Chamber is widely used in scientific research, food, material science, cosmetics, Tobacco, microbiology, chemical industry, electronics and other fields. It can provide a stable temperature and humidity environment and simulate various climate conditions. Especially suitable for sample stability testing, long-term experiments, shelf life testing and fostering of plants, seeds and microorganisms.
Features
1. ALLCOLD ™ refrigeration technology: international leader equilibrate refrigeration, equipped with automatic defrosting, multi-layer safety protection, international good brand Compressor, the use of environmentally friendly refrigerants, energy saving and efficient.
2. ALLFLOW ™ air circulation system: good forced convection system, to ensure rapid recovery of temperature after opening the door, wind speed can be adjusted, with fan switch function.

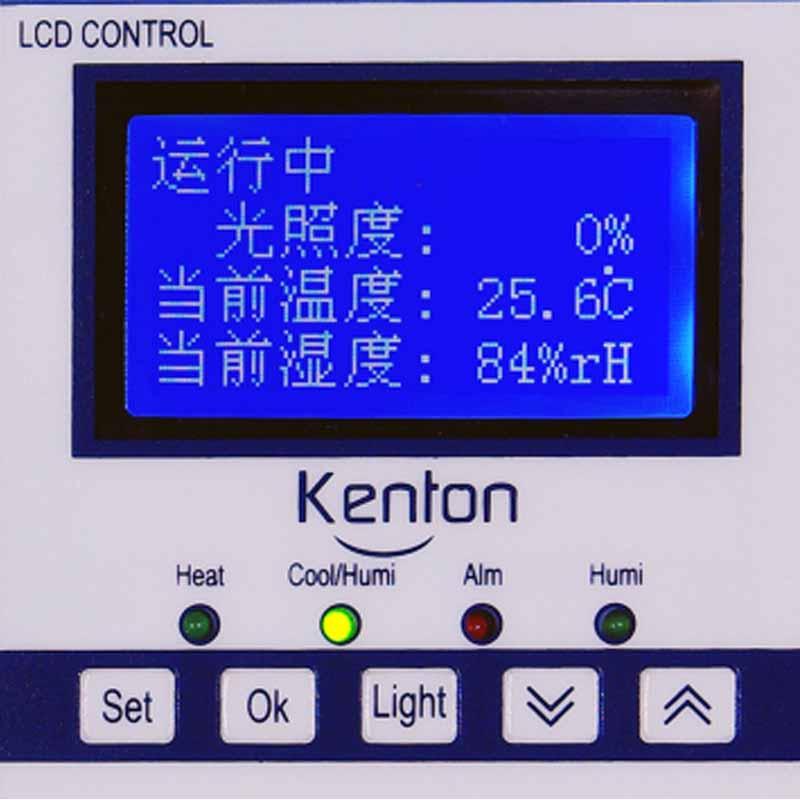

3. ALLSENS ™ microcomputer PID control technology: integrated LCD large screen display, adaptive PID control precise temperature, user password control, RS485 interface can connect multiple devices.
4. Excellent original imported temperature transducer: Industrial grade PT100 Sensor, Fast Response, Small Self-heating Effect.
5. Effective isolation design: double-decked isolation insulation technology, internal isolation door design to ensure temperature conformity.

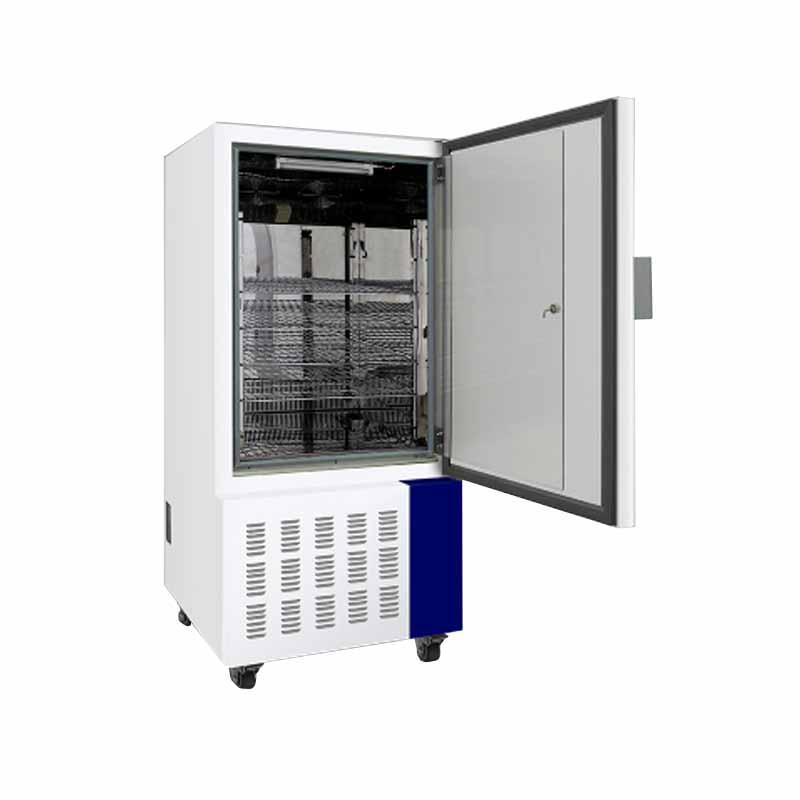

6. Ergonomic structural design: circular arc design, adjustable movable mesh Shelf, double door design (incubator series).
7. Easy to clean: liner minimum splicing design, activities can extract multi-layer shelves.
8. Easy maintenance: control appliance diagnostic function, separate installation of electrical control components.
9. Safe and effective protection concept: multiple over-temperature protection, sound and light alarm, and electronic components have passed UL certification.
Principle
Constant Temperature and Humidity Chamber through ALLCOLD ™ equilibrate refrigeration technology implementation automatic defrosting and temperature control, with ALLFLOW ™ air circulation system forced convection to ensure uniform and stable temperature in the cavity. Microcomputer PID control technology adaptively adjusts temperature to prevent overshoot and ensure a constant environment. Original imported PT100 temperature transducer Fast Response to changes, double-decked isolation design reduces energy consumption.
Applications
Research, Food, Material Science, Cosmetics, Tobacco, Microbiology, Chemical, Electronics
Standards
National Pharmacopoeia, Australian AS3100, US FDA, EN, ICH, cGMP, ICH, 380, 95, Q1A, Q1B, German DIN 12880 Class 3.1, European Union CE safety certification
Steps
1. Connect power supply: use single-phase AC220V/50Hz power supply.
2. Setting parameters: Select Chinese or English through the LCD display, set the temperature (0~ 65 ° C), humidity (40~ 95% R. H), and time (0~ 99 hours or 0~ 9999 minutes).
3. Start operation: After confirming the setting, the device starts to work, and the controller displays the status of temperature, wind speed, running time, etc.
4. Monitoring and adjustment: Multiple devices can be connected through the RS485 interface for real-time monitoring, or remotely controlled using optional software.
5. End operation: stop automatically after completion of operation, or stop manually.
Notice
• Ambient Temperature should be kept at 10~ 30 ℃ and humidity below 70%.
• Avoid opening doors frequently to maintain a stable temperature.
• Regularly clean liners and shelves to ensure hygiene.
• Check whether the over-temperature protection function is normal before use.
• Disconnect the power supply during maintenance, and the electrical control components are located at the back of the box.
• Follow safety standards and deal with alarms promptly.
