Overview

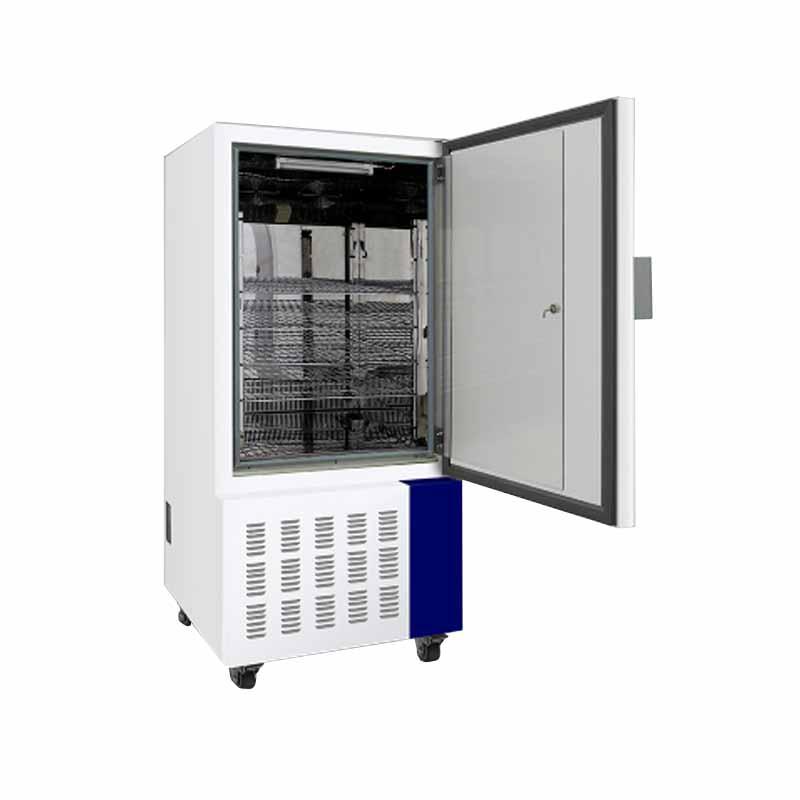

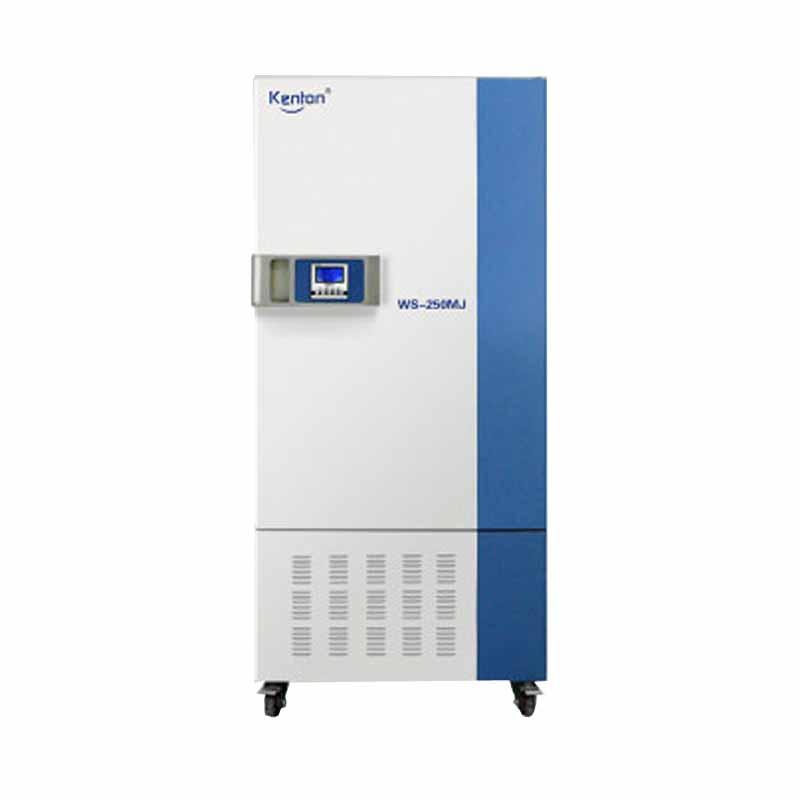

HENGLI WS-400 Constant Temperature and Humidity Chamber is widely used in scientific research, food, material science, cosmetics, Tobacco, microbiology, chemical industry, electronics and other fields. It can provide a stable temperature and humidity environment and simulate various climate conditions. It is especially suitable for sample stability testing, long-term experiments, shelf life testing and fostering of plants, seeds and microorganisms. This series of products has passed the European Union CE safety certification and enjoys a 2-year mass warranty.
Features
1. ALLCOLD ™ equilibrate refrigeration technology, equipped with automatic defrosting, multi-layer safety protection and international good brand Compressor, energy saving and environmental protection.
2. ALLFLOW ™ air circulation system to ensure quick recovery of temperature after opening the door, adjustable wind speed, with fan switch function.

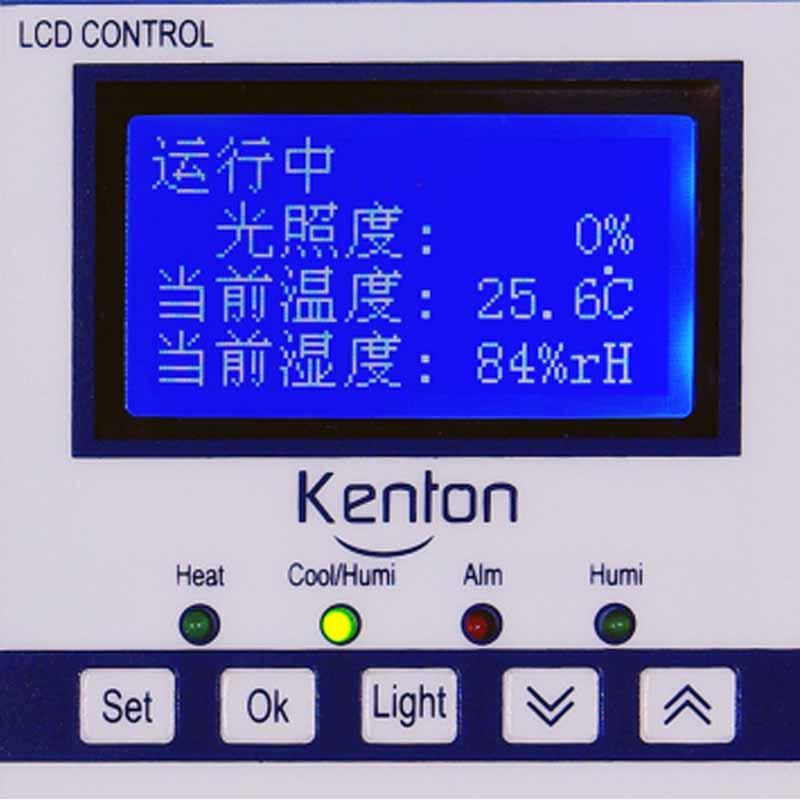

3. ALLSENS ™ microcomputer PID control technology, integrated LCD display, support Chinese and English display, adaptive PID control, precise temperature control.
4. Original imported industrial grade PT100 temperature transducer, Response is fast, self-heating effect is small.
5. Double-decked isolation insulation technology, internal isolation door design, to ensure temperature conformity.
6. Ergonomic Structural Design, Arc Appearance, Active Network Shelf, Easy to operate and observe.
7. Easy to clean, less splicing liner, activities can be extracted shelf, easy to clean.
8. Easy maintenance, control appliance diagnostic function, and separate installation of electrical components.
9. Multiple over-temperature protection functions, sound and light alarm, in line with safety standards.
Principle
Constant Temperature and Humidity Chamber through ALLCOLD ™ equilibrate refrigeration technology implementation automatic defrosting and temperature control, with ALLFLOW ™ air circulation system forced convection to ensure uniform and stable temperature in the working chamber. ALLSENS ™ microcomputer PID control technology adaptively adjusts the temperature to prevent overshoot, combined with the original imported PT100 temperature transducer rapid Response changes to maintain the set temperature and humidity environment.
Applications
Research, Food, Material Science, Cosmetics, Tobacco, Microbiology, Chemical, Electronics
Standards
National Pharmacopoeia, Australian AS3100, US FDA, EN, ICH, cGMP/ICH/380/95/Q1A/Q1B, German DIN 12880 Class 3.1, European Union CE safety certification
Steps
1. Connect the power supply and ensure that the voltage is single-phase AC220V/50Hz.
2. Open the device and select the Chinese or English interface through the LCD display.
3. Set the required temperature (0~ 65 ° C) and humidity (40~ 95% R. H), and use the user password to control.
4. Adjust the wind speed and running time as required (0 to 99 hours or 0 to 9999 minutes).
5. Place the sample on the movable mesh Shelf and close the double door.
6. Start the device, monitor the running status, and connect multiple devices through the RS485 interface for real-time monitoring.
7. After the experiment, stop running and clean the liner and shelf.
Notice
• Ambient Temperature should be kept at 10~ 30 ℃ and humidity below 70%.
• Regularly check the over-temperature protection device to ensure that the safety function is normal.
• Use appropriate tools when cleaning to avoid damage to liners and accessories.
• Disconnect the power supply during maintenance, and the electrical components are located at the back of the box.
• Use original imported refrigerant to avoid environment pollution.
• Read the user manual before operation and follow the set parameters.
