Overview
HENGLI KL-150 strong light stability test chamber is suitable for enterprise failure evaluation, accelerated test and long-term test of products. It is a special equipment for GMP certification and product stability test of pharmaceutical companies. There are silicon Resin material test holes and caps on the right side of the box, which is convenient for testing instruments. It conforms to the national pharmacopoeia, GB/T10586-2006 standards and the US FDA, EN, ICH and other relevant standards. It provides Chinese/English IQ, OQ, PQ and various verification services. It has passed the European Union CE safety certification and enjoys a 2-year mass warranty period.
Features
1. ALLCOLD ™ equilibrate refrigeration technology, equipped with automatic defrosting, multi-layer safety protection and international brand Compressor, energy saving and environmental protection.
2. ALLFLOW ™ air circulation system to ensure rapid temperature recovery, adjustable wind speed, with fan switch function.

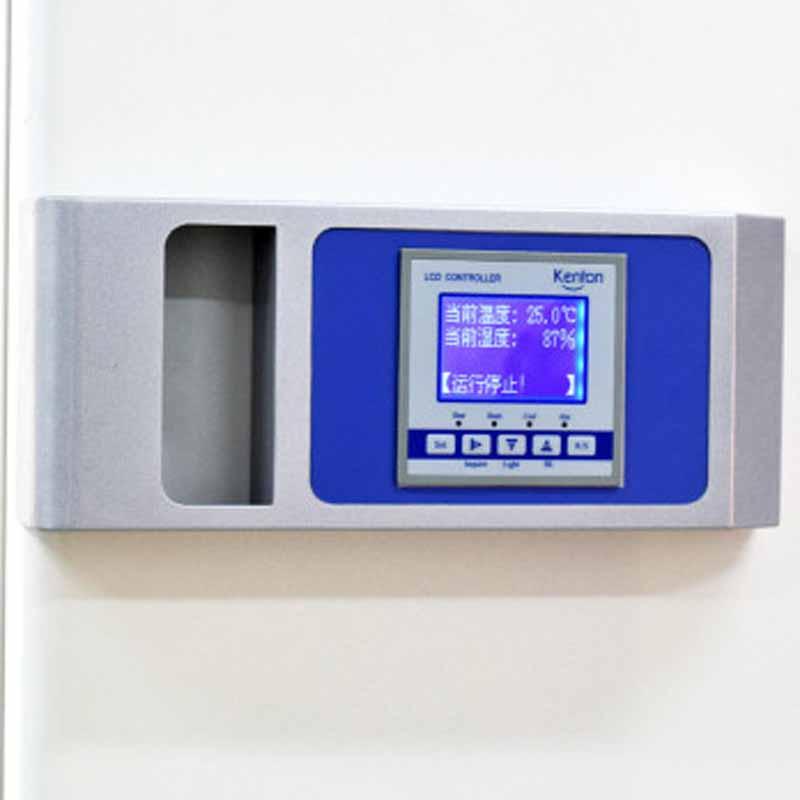

3. ALLSENS ™ microcomputer PID control technology, integrated LCD display, support Chinese/English display, adaptive PID control, user password and RS485 interface multi-device connection.
4. Original imported PT100 temperature transducer, Response is fast, self-heating effect is small.
5. Double-decked isolation insulation technology, internal isolation door design, to ensure temperature conformity.

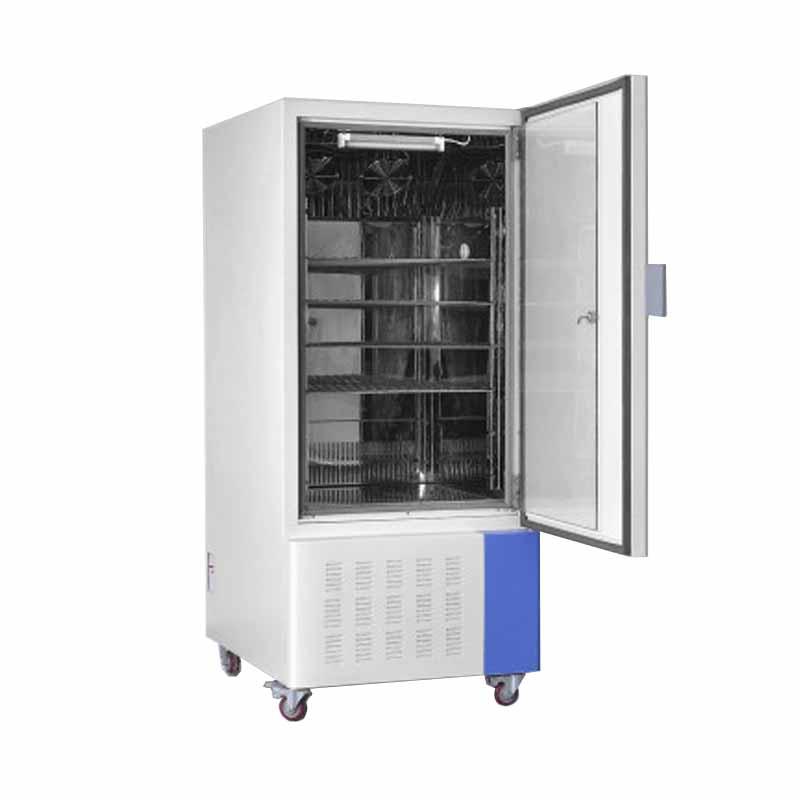

6. Ergonomic Structural Design, Arc Appearance, Active Mesh Shelf, Double Door Design.
7. Easy to clean, less splicing liner, activities can be extracted shelf easy to clean.

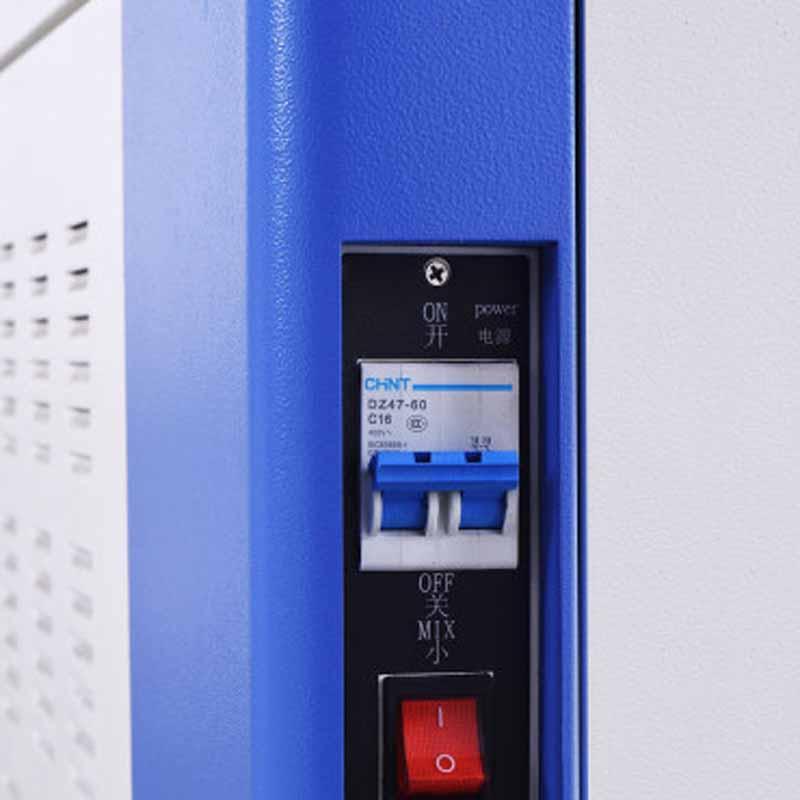

8. Easy maintenance, control appliance diagnostic function, and separate installation of electrical components.
9. Multiple over-temperature protection, sound and light alarm, in line with German DIN 12880 Class 3.1 standard.
10. Pro-Bright ™ professional lighting system, simulate natural light, 3D Illuminant uniform distribution, Illumrination degree grading adjustable, lamp double-decked Glass insulation.
Principle
The test chamber is automatically defrosted and temperature controlled by the ALLCOLD ™ equilibrate refrigeration technology implementation, and the ALLFLOW ™ forced convection of the air circulation system ensures temperature stability and fast recovery. The ALLSENS ™ microcomputer PID control technology adaptively adjusts the temperature to prevent overshoot and keep the cavity uniform and constant. The Pro-Bright ™ lighting system simulates daytime and nighttime lighting, and compensates for heat through a precision control system to ensure constant temperature. Double-decked isolation and insulation technology reduces energy consumption, and the inner isolation door maintains the inner cavity temperature conformity.
Applications
Drug failure assessment, accelerated testing, long-term testing, pharmaceutical GMP certification, drug stability testing
Standards
National Pharmacopoeia, GB/T10586-2006, US FDA, EN, ICH, cGMP/ICH/380/95/Q1A/Q1B, German DIN 12880 Class 3.1, European Union CE safety certification
Steps
1. Connect the power supply to AC 220V/50Hz.
2. Select the Chinese/English interface through the LCD display screen, and set parameters such as temperature and Illumrination degree.
3. Use the user password control to set the Timer Range from 0 to 99 hours or 0 to 9999 minutes.
4. Place the sample on the movable mesh Shelf, adjust the interval and quantity.
5. Start the device, monitor the running status, and connect multiple devices through the RS485 interface for real-time monitoring.
6. After the run is complete, use the diagnostic function to view the historical data.
Notice
• Ambient Temperature should be kept at 10~ 30 ℃, humidity < 70% RH.
• Avoid the Temperature range exceeding 10~ 60 ° C when there is no light, and not exceeding 10~ 65 ° C when there is light.
• Regularly clean liners and shelves to ensure equipment hygiene.
• When maintaining, pay attention to the electrical components located at the back of the box, and install them separately for easy maintenance.
• Use the over-temperature protection function to deal with the alarm in time.
• When the lighting system is running, pay attention to the heat dissipation of the ventilation holes to avoid overheating.
Equipment net weight 107Kg, handling need to be careful to prevent damage.
