Overview
HENGLI KL-250 strong light stability test chamber is suitable for enterprise failure evaluation, accelerated test and long-term test of products. It is a special equipment for GMP certification and product stability test of pharmaceutical companies. The equipment meets the requirements of the National Pharmacopoeia and GB/T10586-2006 standards, as well as the relevant standards of the US FDA, EN, ICH, etc. It has passed the European Union CE safety certification and enjoys a 2-year mass warranty period.
Features
1. Adopt ALLCOLD ™ equilibrate refrigeration technology, equipped with automatic defrosting function and manual control of cooling capacity
2. Adopt ALLFLOW ™ air circulation system to ensure rapid temperature recovery and adjustable wind speed
3. Adopt ALLSENS ™ microcomputer PID control technology, with adaptive PID control and user password control function
4. Equipped with Pro-Bright ™ professional lighting system, can simulate natural light and Illumrination degree grading adjustable
5. Adopt double-decked isolation and thermal insulation technology and internal isolation door design

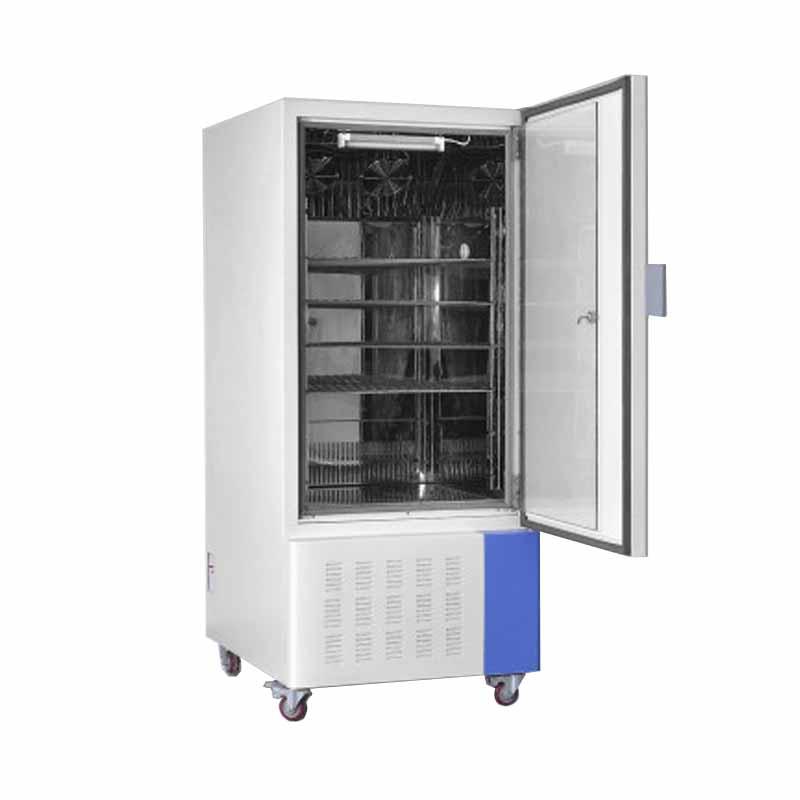

6. Ergonomic structural design, equipped with movable mesh Shelf
7. Design features convenient cleaning and maintenance
8. Equipped with multiple over-temperature protection functions and sound and light alarm system
Principle
设备通过ALLCOLD™平衡式制冷系统实现温度控制，采用ALLFLOW™气流循环系统保证工作腔内温度连续稳定性。ALLSENS™微电脑PID控制技术精准控制温度，预防温度过冲。Pro-Bright™光照系统模拟自然光照，并通过精密的控制系统对光照产生的热量进行有效补偿，确保温度恒定不变。
Applications
Drug failure assessment, accelerated testing, long-term testing, pharmaceutical GMP certification, drug stability testing
Standards
GB/T10586-2006, US FDA, EN, ICH, cGMP, ICH380, ICH95, Q1A, Q1B, European Union CE safety certification, German DIN 12880 Class 3.1
Steps
1. Connect AC 220V/50Hz power supply

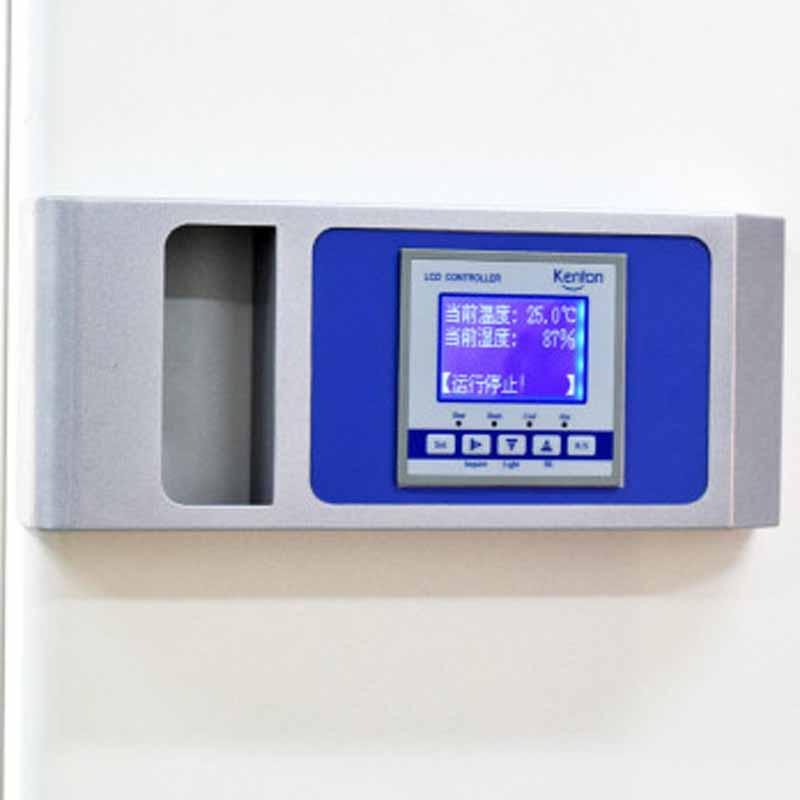

2. Set parameters such as temperature and Illumrination degree through LCD point formation large screen LCD display
3. Adjust the wind speed and light level as needed
4. Set Timer Range (0~ 99 hours or 0~ 9999 minutes)
5. Start the device running
6. Real-time monitoring of equipment status through RS485 interface
Notice
• Ambient Temperature should be maintained at 10~ 30 ℃
The working environment humidity should be less than 70% RH
• When the equipment is running, pay attention to the over-temperature protection alarm prompt
• When cleaning, activities should be used to extract multi-layer shelf design
• Maintenance can be operated by electrical control components at the back of the box
• Before use, confirm that all electronic components are in good condition and nondestructive
