Overview

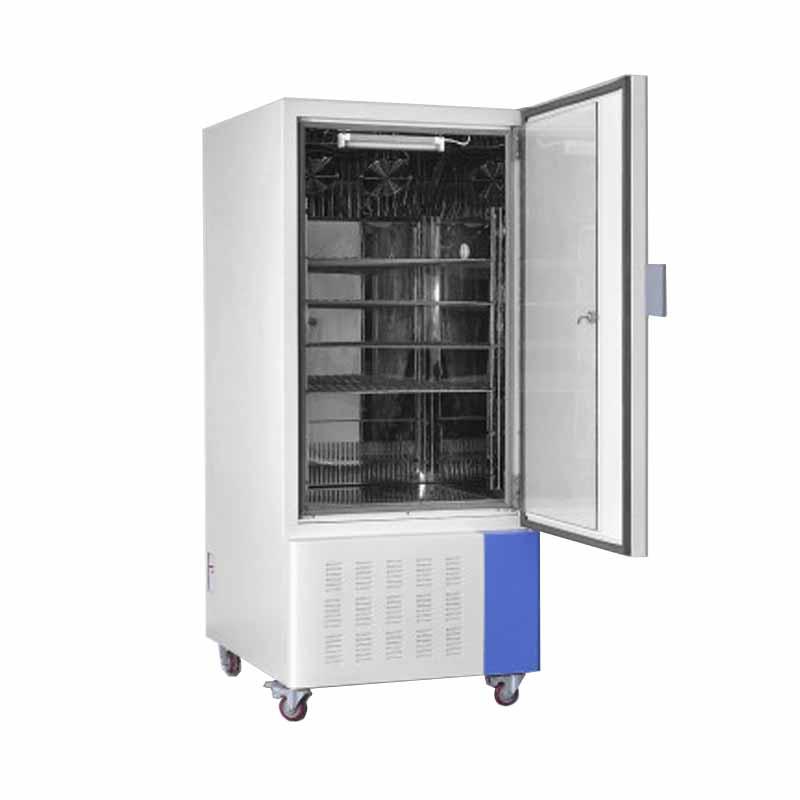

HENGLI KL-400 strong light stability test chamber is suitable for enterprise failure evaluation, accelerated test and long-term test of products. It is a special equipment for GMP certification and product stability test of pharmaceutical companies. There are test holes and caps made of silicon Resin material on the right side of the box, which is convenient for the use of testing instruments, and provides Chinese/English IQ, OQ, PQ and various verification services. It has passed the European Union CE safety certification and enjoys a 2-year mass warranty period.
Features
1. ALLCOLD ™ equilibrate refrigeration technology, equipped with automatic defrosting, multi-layer safety protection and environmentally friendly and energy-saving design.
2. ALLFLOW ™ air circulation system to ensure rapid temperature recovery and stability, and adjustable wind speed.
3. ALLSENS ™ microcomputer PID control technology, support Chinese and English display, adaptive control and remote monitoring.
4. Original imported PT100 temperature transducer, Response is fast and self-heating effect is small.
5. Double-decked isolation and thermal insulation technology to reduce energy consumption.
6. Ergonomic design, including Arc Appearance, Shelf and Double Door.
7. Easy to clean and maintain, liner splicing less, electrical control separation.
8. Multiple over-temperature protection, meeting safety standards.
9. Pro-Bright ™ professional lighting system, simulating natural light, Illumrination degree grading adjustable.
Principle
The test chamber is controlled by ALLCOLD ™ refrigeration technology implementation, using equilibrate refrigeration scheme and fast heat pump defrosting technology to ensure continuous operation. ALLFLOW ™ forced convection of the air circulation system to ensure uniform and stable temperature in the chamber. ALLSENS ™ microcomputer PID control technology precisely adjusts the temperature to prevent overshoot, and simulates the lighting conditions through the lighting system, and cooperates with the humidification system for climate simulation.
Applications
Pharmaceutical GMP certification, product stability testing, failure evaluation, accelerated testing, long-term testing
Standards
GB/T10586-2006, US FDA, EN, ICH, cGMP/ICH/380/95/Q1A/Q1B, German DIN 12880 Class 3.1
Steps
1. Connect the power supply and turn on the device.

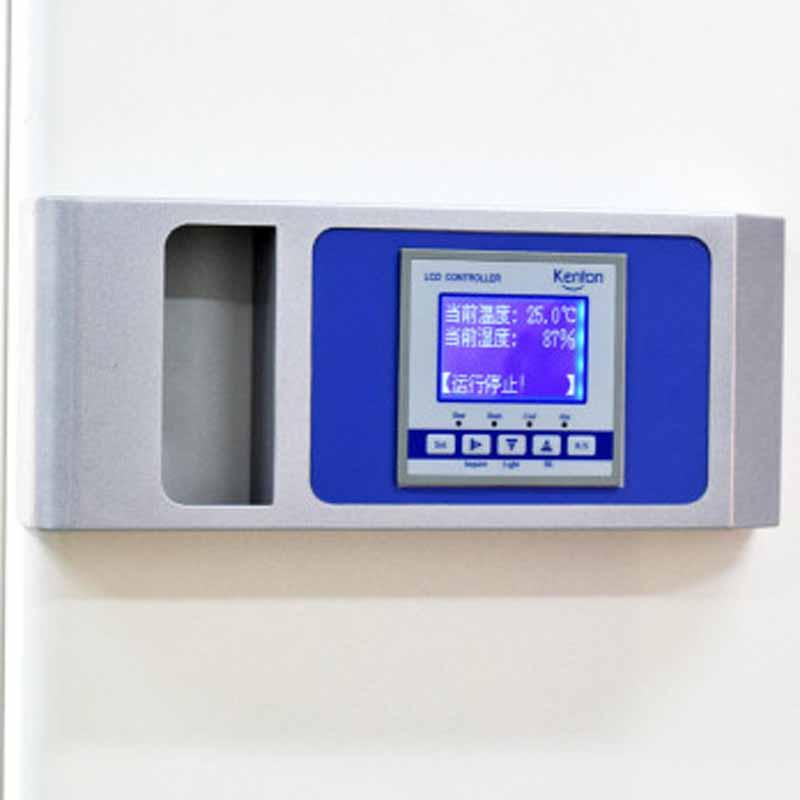

2. Select the language through the LCD display and set parameters such as temperature, humidity, and lighting.
3. Use the user password control to set the running time.
4. Place the sample on the active Shelf and adjust the interval.
5. Start running and monitor the status through the RS485 interface.
6. After the operation, turn off the equipment and clean the liner.
Notice
• Ambient Temperature should be kept at 10~ 30 ℃ and humidity below 70% RH.
• Avoid temperature control exceeding 60 ° C when there is no light, and do not exceed 65 ° C when there is light.
• Regularly check the over-temperature protection device to ensure that the sound and light alarm function is normal.
• Pay attention to the liner material when cleaning and avoid using corrosive cleaners.

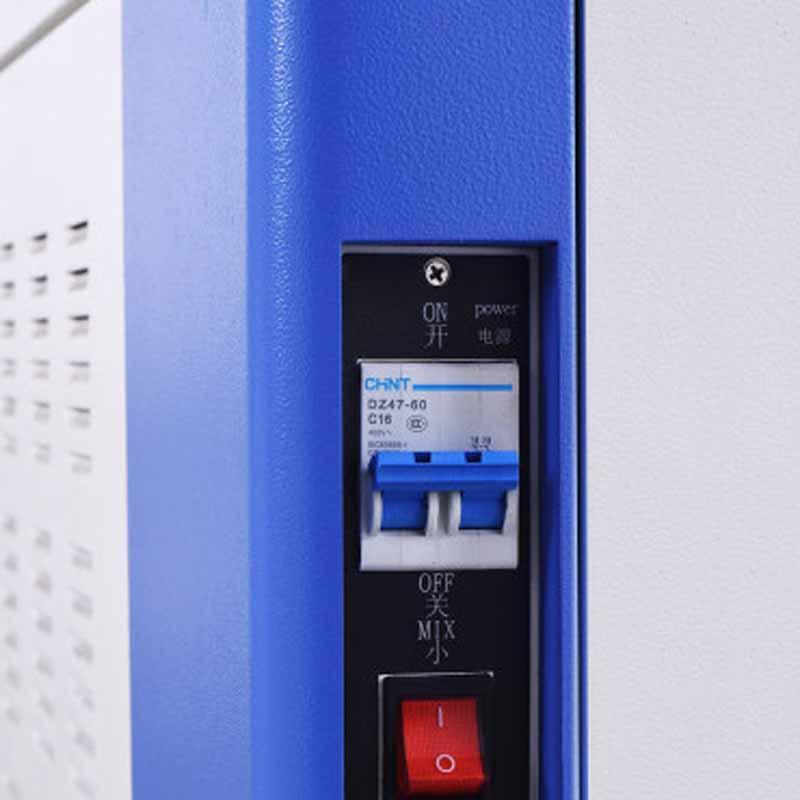

• Disconnect the power supply during maintenance, and the electrical control element is located at the back of the box.
• Pay attention to ventilating heat during the use of the lighting system to prevent overheating.
