Overview

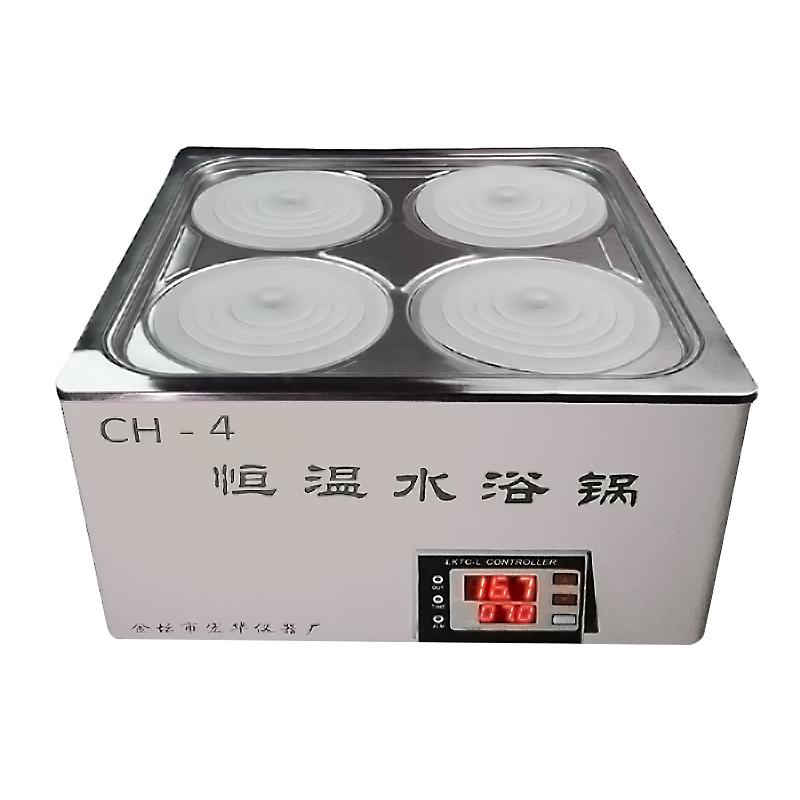

CH-4 digital thermostatic water bath adopts 304 stainless steel one-time stretch forming liner, instead of welding process, to ensure long-term use without water leakage and corrosion resistance. Equipped with stainless steel cover plate and silicone ring cover (high temperature is not hot), hidden outlet pipe, four corners and bottom arc design to avoid temperature control dead angle, to ensure uniform water temperature. The shell adopts cold-rolled plate spray, the outer arc design is beautiful and generous, anti-drop and pressure easy to clean. High temperature control accuracy, digital display, automatic temperature control. Widely used in drying, condensing, distillation, impregnation of chemical Reagents, impregnation products and biological products, water bath thermostatic heating and Miscellaneous temperature test.
Features
1.304 stainless steel liner one stretch forming, no leakage, corrosion resistance
2. Stainless steel cover and silicone ring cover, high temperature is not hot
3. Concealed outlet pipe design
4. Four corners and bottom arc design to avoid temperature control dead ends and uniform water temperature
5. High Accuracy Temperature Control, Digital Display, Automatic Temperature Control
6. Shell cold-rolled plate spray, outer arc design, beautiful, anti-drop, pressure-resistant and easy to clean
Principle
The water in the Tank is heated by an electric heating system, and the temperature is automatically adjusted by digital temperature control technology to keep the water bath thermostatic. The arc design ensures uniform heat distribution and avoids local temperature differences.
Applications
Drying, condensing, distillation, impregnation Chemical Reagents, impregnated products and biological products, water bath thermostatic heating, Miscellaneous temperature testing, biology, genetics, viruses, aquatic products, environmental protection, biochemical laboratories, analysis rooms, education and research
Steps
1. Power on AC 220V 50Hz
2. Set the required temperature (RT +~ 99.9 ° C)
3. Start heating and automatically control the temperature to the set value
4. Turn off the power after use and clean the equipment
Notice
• Power frequency matching AC 220V 50Hz before use
• Avoid long-term over-temperature operation
• Regularly inspect liners and covers to prevent corrosion or damage
• Pay attention to safety when cleaning to avoid water entering the electrical part
• Handle with care during transportation and storage to prevent deformation of the shell
