Overview

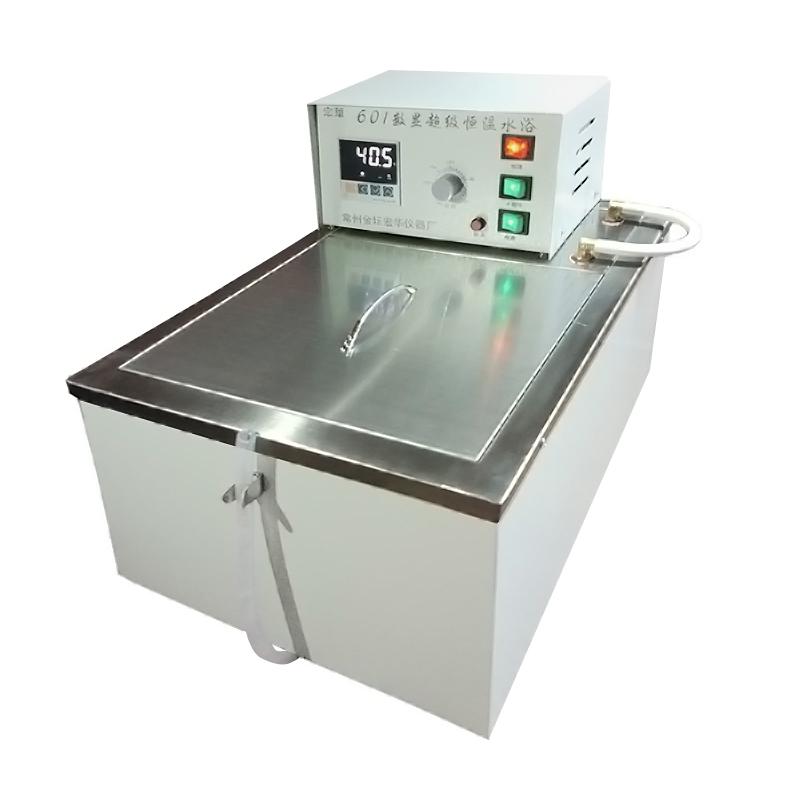

HH-601 super constant temperature water bath is a HONGHUA brand product. It is made of imported stainless steel plate and professional technology, and all technical indicators meet national standards. There is a circulating pump, which can lead the thermostatic liquid in the tank to establish a second thermostatic field or as a heat source. Using a microcomputer intelligent control system, the LED dual window displays the temperature measurement value and set value, which has the advantages of high temperature control accuracy, corrosion resistance, compact structure and energy saving.
Features
1. Made with imported stainless steel plates and professional craftsmanship
2. With a circulating pump, a second thermostatic field can be established or used as an external heat source
3. Microcomputer intelligent control system, touch the soft key to quickly set the temperature
4. LED dual-window digital display, the upper window displays the measurement value, and the lower window displays the setting value
5. Microcomputer correction temperature measurement deviation, digital display resolution 0.1 ℃
6. High temperature control accuracy, strong corrosion resistance, compact structure and beautiful appearance
7. Save energy and have a long service life
Principle
The HH-601 super constant temperature water bath adopts a microcomputer intelligent control system for temperature control, and the temperature value is set by touching the soft key. The system automatically corrects the temperature measurement deviation to achieve accurate temperature control. The built-in imported water pump is used as a circulating power to ensure the uniform distribution of water temperature, solve the problem of uneven warm water, and make the temperature control accuracy and water uniformity meet higher requirements.
Applications
Biological, physical, plant, chemical, environmental protection and other experimental science fields or auxiliary heating
Standards
national standard
Steps
1. Connect AC 220V 50Hz power supply
2. Set the desired temperature value by touching the soft key
3. Observe the LED display window, the upper window displays the actual temperature measurement value, and the lower window displays the set temperature value
4. If you need to establish a second thermostatic field, you can connect a circulating pump to lead the liquid out of the tank
5. Equipment automatic temperature control operation
Notice
• Power frequency must be AC 220V 50Hz
• Make sure the equipment is well grounded before use
• Temperature range between RT + 5~ 95 ℃
• Regularly check the working status of the circulating pump
• Keep equipment clean to avoid corrosion
