Overview

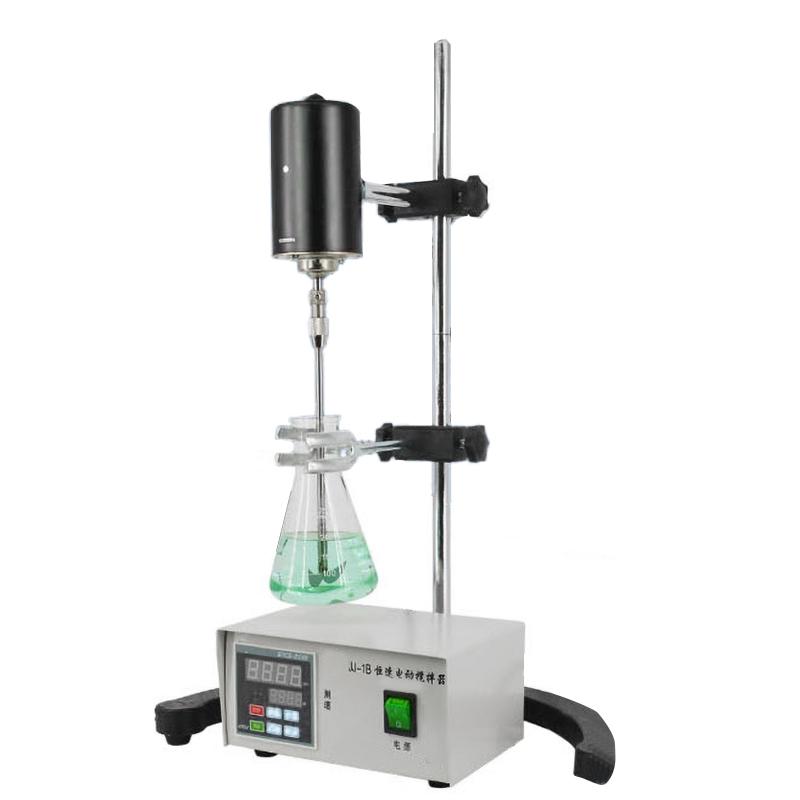

JJ-1B constant speed powerbasic stirrer adopts constant speed control circuit and professional DC motor, with force-boosting speed regulation circuit, with the characteristics of increasing torque at low speed, equilibrating speed, no noise, and continuous adjustable speed. The speed is stable, not affected by external Power frequency changes, and has greater torque than ordinary Stirrer. It is an updated product of ordinary powerbasic stirrer.
Features
1. Using constant speed control circuit, stable speed, not affected by external Power frequency changes
2. Adopt professional DC motor, equipped with force-increasing speed control circuit
3. Increased torque at low speeds
4. Speed equilibrating, no noise
5. Speed continuously adjustable
6. Greater torque than the ordinary Stirrer
Principle
The JJ-1B constant speed powerbasic stirrer controls the operation of the DC motor through the constant speed control circuit and the booster speed control circuit to achieve stable speed output. At low speed, the output torque is increased through the booster circuit to ensure that the constant speed can be maintained under different load conditions.
Standards
Power frequency: AC 220V 50Hz
Steps
1. Connect 220V 50Hz AC power supply
2. Set the required speed (within the range of 200~ 3000rpm)
3. Set the timing time (within the range of 0~ 120min or 0~ 9999min)
4. Stirrer starts working
Notice
• Power frequency is 220V 50Hz before use
• The speed setting range should be between 200 and 3000rpm
• Timing settings can be selected according to needs 0~ 120min or 0~ 9999min range
• Pay attention to keep the equipment clean and avoid liquid entering the motor part
