Overview

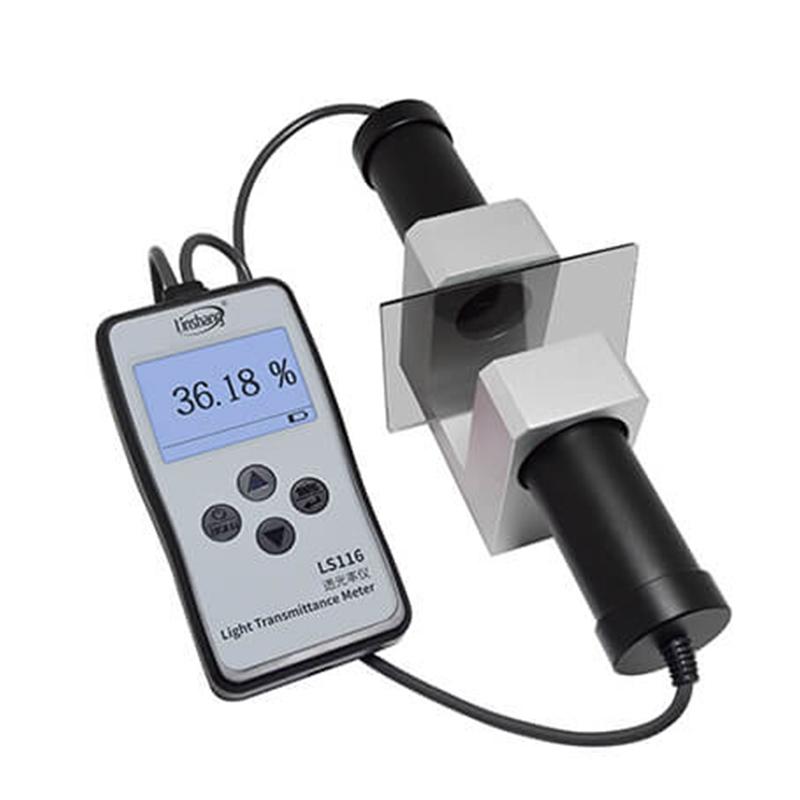

The LS116 Transmittance meter is an Optical inspection test instrument of the LINSHANG brand, which is mainly used for the measurement of light transmitance of Glass, Solar Film, Film Glass and other materials. The instrument uses Visible Illuminant to illuminate the measured substance, detects the incident ray intensity and the transmitted Light intensity through the sensor, and calculates the transmittance and expresses it as a percentage. The parallel light path design is suitable for the detection of large thickness materials, and the accuracy can reach +/- 1%. Illuminant meets the CIE visual function standard to ensure that it passes the measurement institute inspection.
Features
1. Adopt parallel light path and receiver condenser design, capable of measurement of large thickness materials

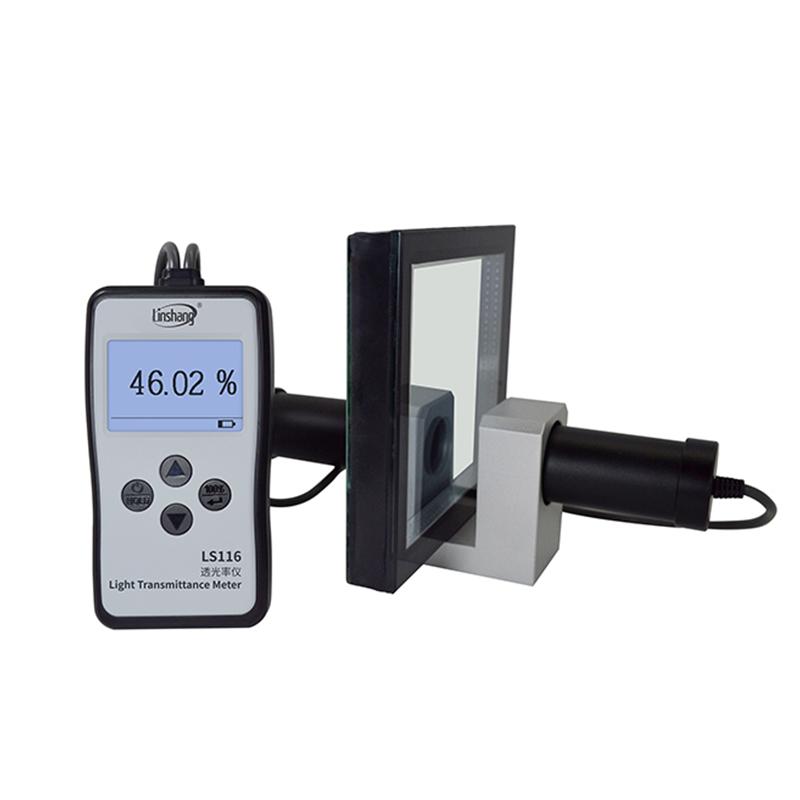

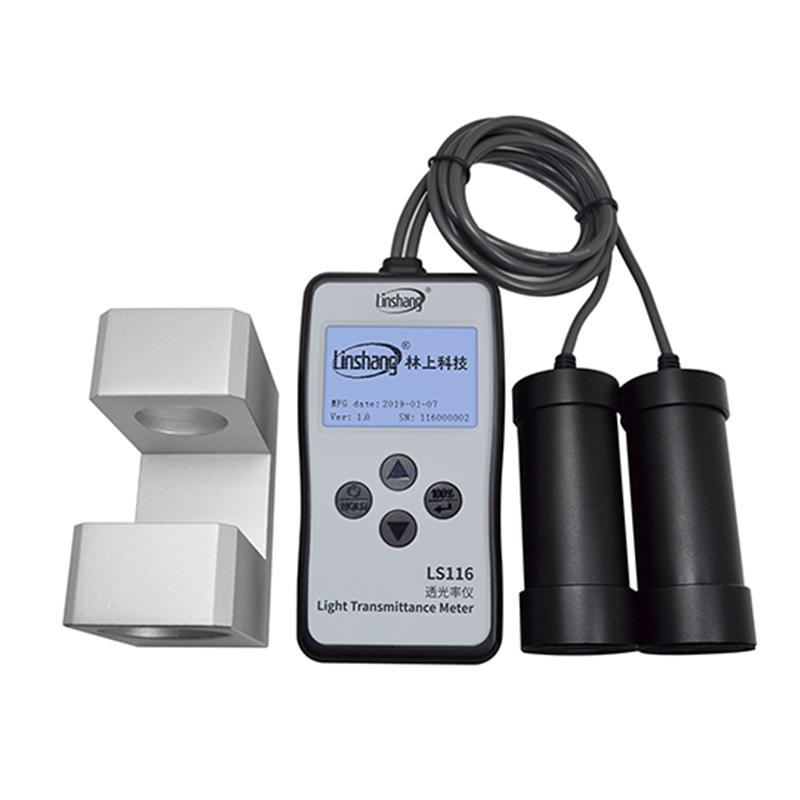

2. Equipped with fixed seat, with two Measurement modes, suitable for on-site measurement and fixed-point measurement
3. High Accuracy data collection, Measurement accuracy, fast speed, simple operation
4. Measurement range 0.001% -99.8%, can test the light transmitance of high transparent materials
5. Suitable for light transmitance testing of various materials, up to 0.001% resolution
6. Suitable for exhibition, production, Quality control, inspection and other occasions
Principle
The test principle of the light transmitter is to use the Illuminant to illuminate the measured substance, and the sensor detects the incident ray intensity of the Illuminant and the light intensity after passing through the measured substance, respectively. The ratio of the incident ray intensity to the incident ray intensity is the transmittance, expressed as a percentage.
Applications
Glass Products, Solar Film, Coating Glass, Coating Materials, Organic Material Panels, Exhibition, Production, Quality control, Inspection
Standards
CIE standard for visual function
Steps
The specific operation step information is not provided in the data.
Notice
No specific information is provided in the document
