Overview

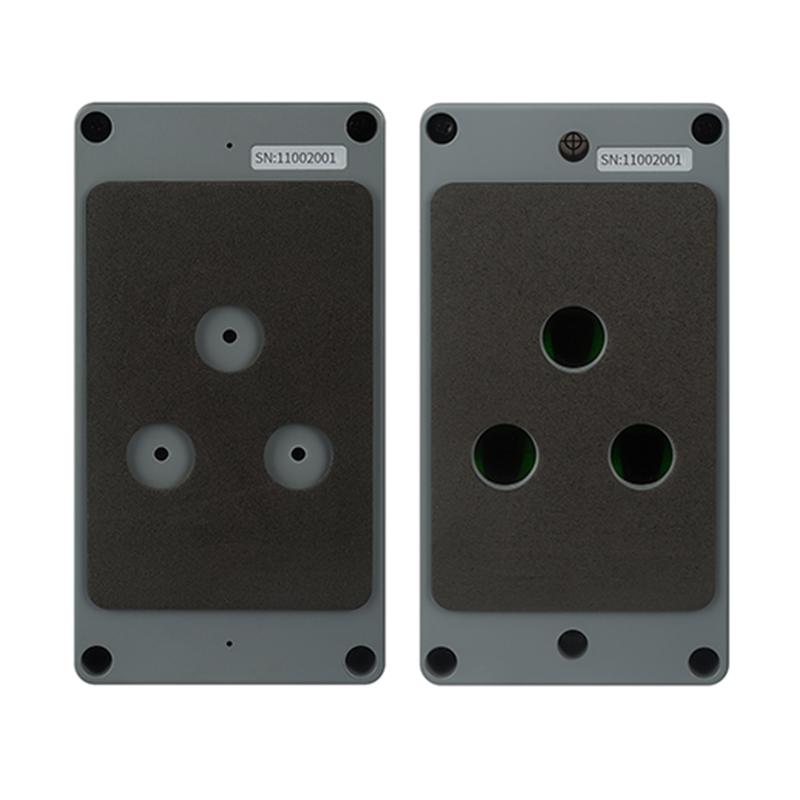

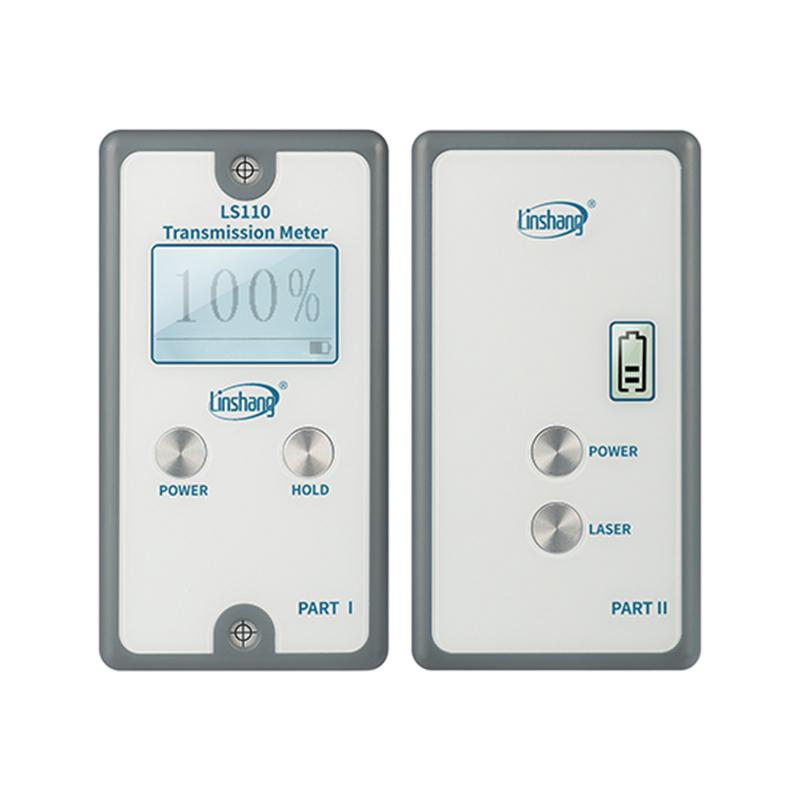

The LS110 split Transmittance meter is a professional light transmitance test instrument for detecting the front gear Glass of automobiles. The instrument consists of a main machine and an auxiliary machine. The main machine functions as measurement and display, and the auxiliary machine functions as measurement light source and alignment laser. The instrument consists of three independent test units, and the display value is the visible light transmittance value (the average of three measurements).
Features
1. Main and auxiliary mode, convenient for light transmitance measurement of car front gear Glass and building Glass
2. The instrument contains three independent Transmittance meters and displays the results as the average of the three measurements
3. Three-in-one design, more accurate measurement results, strong anti-interference ability
4. Built-in lithium rechargeable battery, no need to replace the battery, just charge it, easy to use
5. Laser alignment function to ensure accurate alignment of the main and auxiliary machines in the measurement process to ensure measurement accuracy
Principle
The test principle of the instrument is to use visible Illuminant to illuminate the transparent substance to be measured, and the sensor detects the incident ray intensity of the Illuminant and the Light intensity after passing through the transparent substance to be measured. The ratio of the incident ray intensity to the incident ray intensity is the light transmitter, expressed as a percentage.
Applications
Car Front Glass, Building Glass
Steps

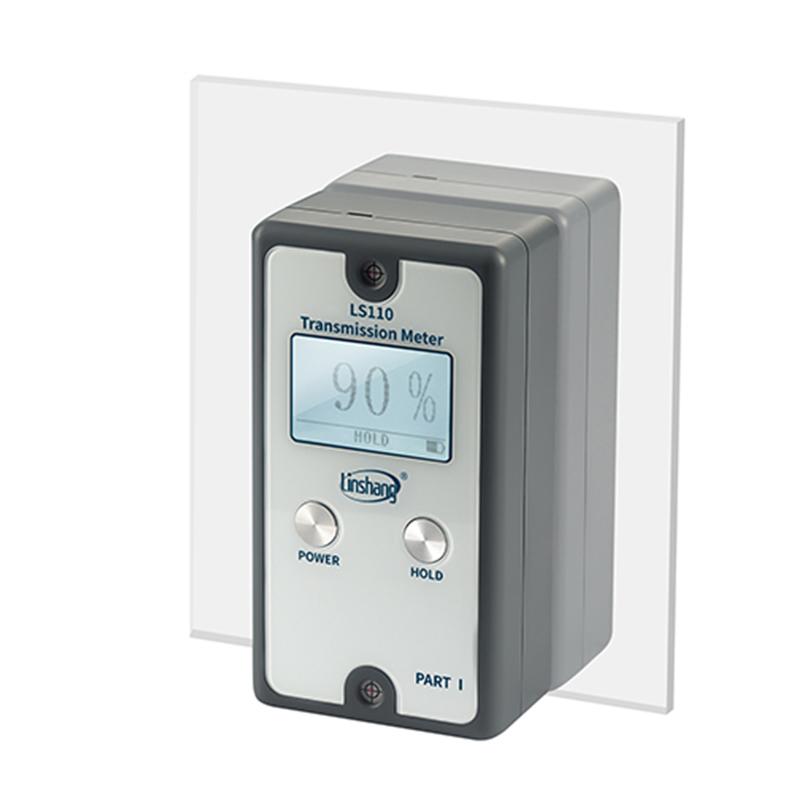

1. Place the main machine and the auxiliary machine on both sides of the Glass to be tested
2. Turn on the laser alignment function to ensure accurate alignment of the main and auxiliary machines
3. Activate the measurement function for light transmitance detection
4. Read the displayed three-way measurement average result
Notice
• Ensure accurate alignment of main and auxiliary machines before measurement
• The size of the measured object must be greater than 40 * 40mm
• Regularly charge the built-in lithium battery
• Avoid use in strong interference environments
