Overview

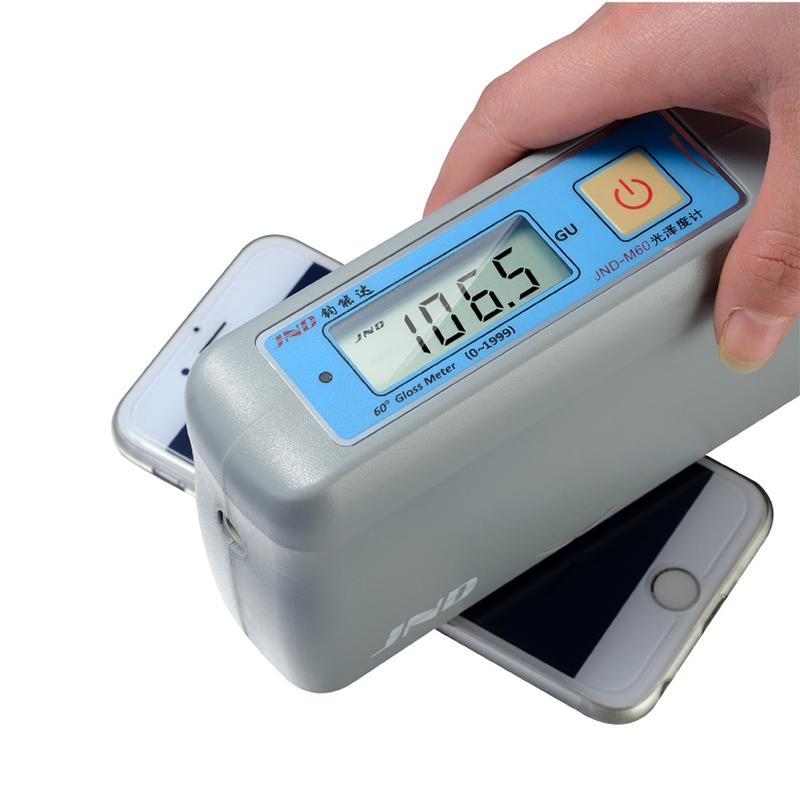

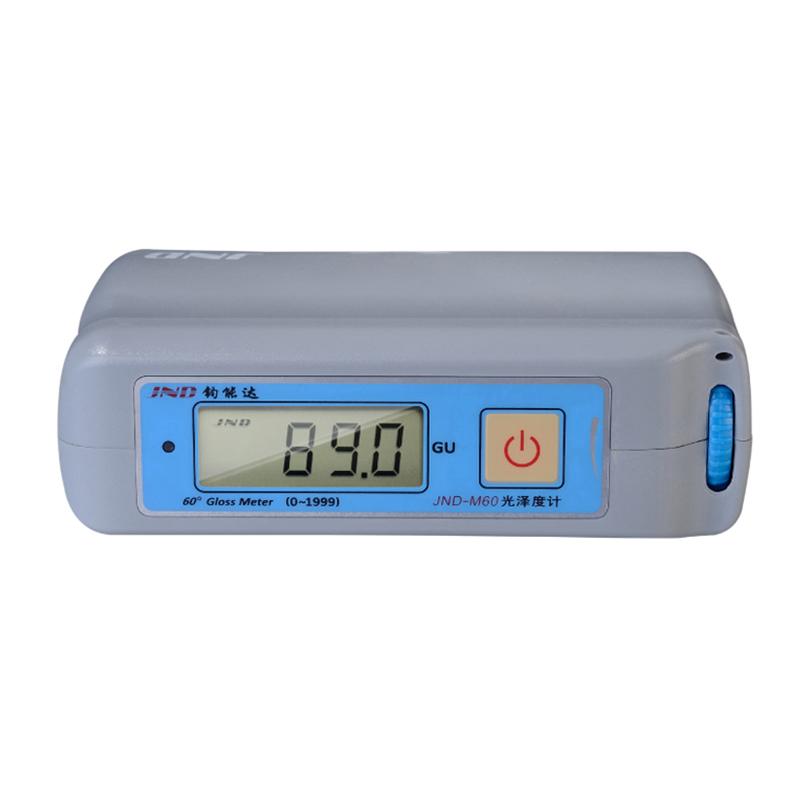

JND-M60 Metal Glossiness Meter is a gloss measurement instrument designed and manufactured with reference to international standard ISO 2813 and Chinese national standard GB/T9754. In order to adapt to high Gloss and wide range measurement, this instrument extends according to ISO 2813 definition and expands the measurement range of instrument gloss. All performance indicators meet the national standard JJG 696-2002 "Mirror Glossiness Meter and Gloss Board" work machine requirements.
Features
1. High Accuracy, Large Range Design
2. Intelligent, high stability, ready to test, simple and convenient operation
3. Traceability of measurement data to "SIMT" National Measurement verification center through trusted certification for five consecutive years
4. National level standard: mirror (high) black (medium) white (low) calibration plate, in line with national standards, can easily pass Measurement verification
5. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility
6. Ergonomic shell, high-end mold one-time molding, anti-skid, lightweight, and can resist a variety of solvents
7. Pay attention to safety with high-end nonconductive shell, high safety factor, avoid electric shock
8. Built-in rechargeable battery pack, the power supply adopts imported high-end management chip, and the continuous measurement can be carried out for more than 48 hours after being fully charged. The industry has effective performance
9. Adopt imported non-mechanical three-proof power switch, long life and good feel
10. Elliptical angle, soft surface probe design, effectively prevent the measurement process from scratching the test object
Principle
JND-M60 Metal Glossiness Meter extends according to ISO 2813 definition, expands the measurement range of instrument gloss, adopts professional optical path design to ensure stable and reliable measurement data, with minimal Inter-instrument Agreement and excellent reproducibility.
Applications
Metal polished surfaces, Eletroplating surfaces, Brushed surfaces, Non-metallic surfaces, paints, decoration materials, building materials, plastic materials, bamboo and wood products, Pottery and porcelain products, leather products, film paper, Printing ink, Stone
Standards
GB/T9754、ISO 2813、JJG 696-2002、GB/T13891
Steps
1. It is tested immediately after startup, and the operation is simple and convenient
2. Use the national standard calibration plate for calibrating
3. Align the elliptical angle and soft surface probe with the measured object for measurement
Notice
• operation temperature range is 15~ 40 ℃
• relative humidity should be less than 85%, no condensation
• Storage temperature is -10~ 60 ℃
• Charging time is 14 to 16 hours
• Pay attention to prevent the probe from scratching the tested object during measurement
