Overview

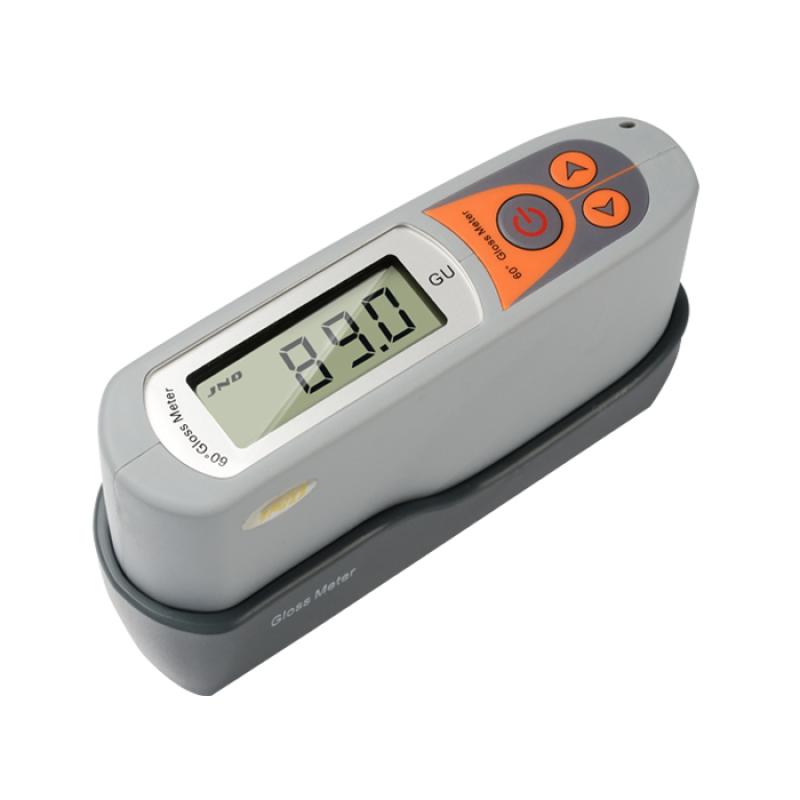

MP6 Portable Glossiness Meter is an ultra-high accuracy gloss measurement instrument of JND brand. It is designed and manufactured with reference to international standard ISO 2813 and Chinese national standard GB/T13891, GB9754, GB7706, GB8807. The technical parameters meet ASTM D2457 and ASTM D523 standards. The performance indicators meet the national standard JJG 696-2002 first-class working machine requirements. Traceability of Gloss can be obtained from Shanghai Institute of Measurement and Testing Technology (SIMT).
Features
1. Fully intelligent boot self-calibrating, High Accuracy, High stability, immediate test, simple and convenient operation.
2. The new intelligent error compensation device design allows users to easily adjust without returning to the factory.
3. Traceability of measurement data to the "SIMT" National Measurement verification center through trusted certification for five consecutive years.
4. National level standard black (high) white (low) calibration plate, in line with national standards, can easily pass Measurement verification.
5. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility.
6. Ergonomic shell, high-end mold one-time molding, anti-skid, lightweight, and resistant to a variety of solvents (patent number: ZL 2014 3 024 2920.5).
7. Pay attention to safety with high-end nonconductive shell, high safety factor, to avoid electric shock.
8. The power supply adopts imported high-end management chips, and the maximum charge can reach 80 hours of continuous measurement, which is effective in the industry.
9. Adopt imported non-mechanical three-proof power switch, which has a long lifespan and a good feel.
10. Elliptical angle, soft surface probe design, effectively prevent the measurement process from scratching the measured object.
Principle
Through professional optical path design, the instrument emits and receives rays of light at 60 ° Measurement Angles, calculates the ratio of surface reflected light intensity to standard plate reflected light intensity, and obtains gloss value to ensure High Accuracy and stability.
Applications
Paints, decoration materials, building materials, plastic materials, bamboo and wood products, Pottery and porcelain products, metal polishing surface, Eletroplating surface, painting surface, leather products, film paper, Printing ink, Stone and many other fields of material products and various Non-metallic surface gloss measurement
Standards
ISO 2813、GB/T9754、ASTM D2457、ASTM D523、GB/T13891、GB/T7706、GB/T8807、JJG 696
Steps
1. The boot instrument automatically self-calibrates.
2. Align the probe on the surface of the object to ensure that the light spot covers the measurement area.
3. Press the measurement button for gloss measurement.
4. Read and record measurement results.
Notice
- The operating language is Chinese to ensure correct understanding of the interface prompts.
- operation temperature range is 15~ 40 ℃, avoid use in extreme temperatures.
- relative humidity should be less than 85%, no condensation, to prevent instrument moisture.
Storage temperature range is -10~ 60 ℃, avoid long-term exposure to high or low temperature environment.
- Use 1.2~ 1.5V AA (No. 5) rechargeable or alkaline batteries to ensure that the power supply meets the requirements.
- Measuring Area is 9 * 18mm to ensure that the surface of the measured object is flat and the light spot is completely covered.
- The instrument weight is 186g, and the lightweight design is easy to carry, but it needs to avoid severe impact.
- Operating Time exceeds 80 hours, regular charging is recommended to maintain battery performance.
