Overview

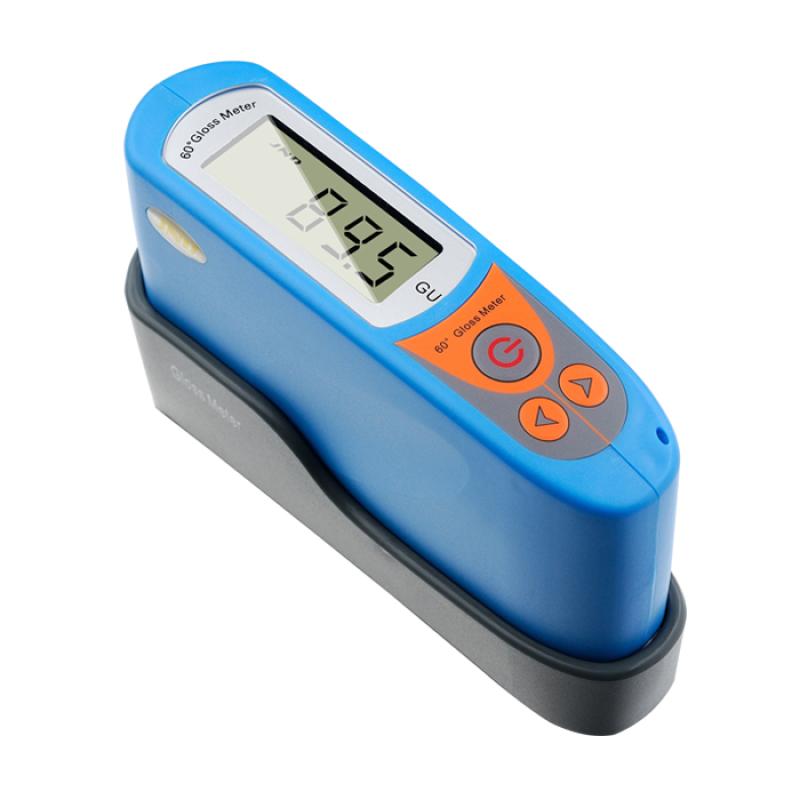

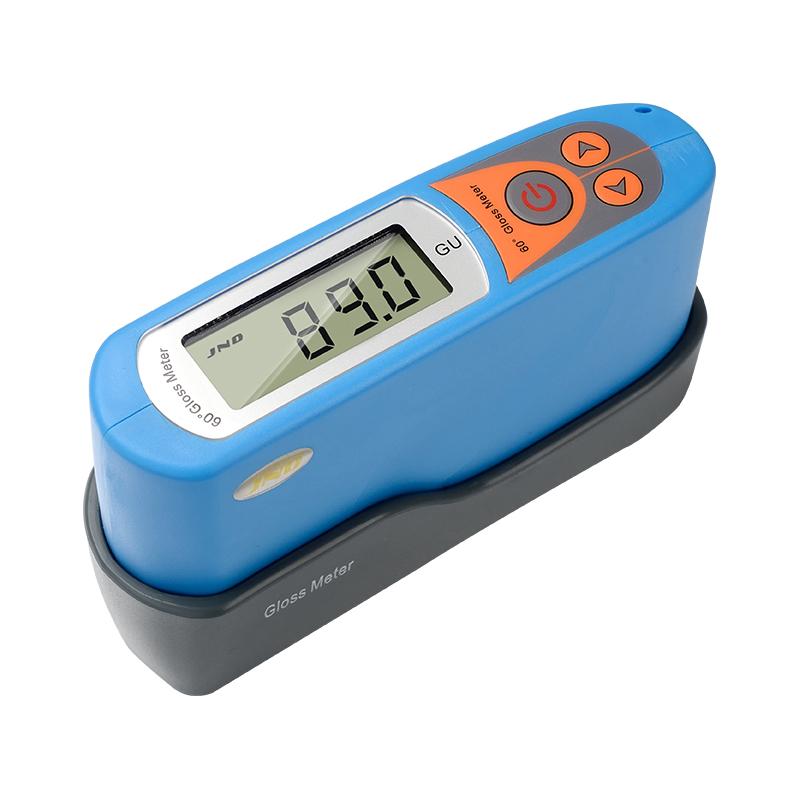

MS6 Portable Glossiness Meter is a Portable gloss measurement instrument specially designed by JND brand for Stone products. It is manufactured with reference to international standard ISO 2813 and Chinese national standards GB/T13891, GB9754, GB7706, GB8807. The technical parameters meet ASTM D2457 and ASTM D523 standards. The performance indicators meet the requirements of JJG 696-2002 secondary working machine. Traceability of Gloss can be obtained from Shanghai Institute of Measurement and Testing Technology.
Features
1. Fully intelligent boot self-calibrating, High Accuracy, High stability, immediate test, simple and convenient operation.
2. The new intelligent error compensation device design allows users to easily adjust without returning to the factory.
3. The measurement data has passed the trusted certification for five consecutive years and can be Traceability to the SIMT National Measurement verification center.
4. National level standard black (high) white (low) calibration plate, in line with national standards, can easily pass Measurement verification.
5. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility.
6. Ergonomic shell, high-end mold one-time molding, anti-skid, lightweight, and can resist a variety of solvents.
7. Pay attention to safety with high-end nonconductive shell, high safety factor, to avoid electric shock.
8. The power supply adopts imported high-end management chips, and the maximum charge can reach 80 hours of continuous measurement.
9. Adopt imported non-mechanical three-proof power switch, which has a long lifespan and a good feel.
10. Elliptical angle, soft surface probe design, effectively prevent the measurement process from scratching the measured object.
Principle
Instrument through 60 ° Measurement Angles, using professional optical path design, transmit and receive rays of light to measure Stone surface gloss, stable and reliable data, Indication Error small, Graduation accuracy.
Applications
Stone products such as granite, marble, terrazzo, sand, slate, artificial stone, polyester condense surface gloss measurement
Standards
ISO 2813、GB/T9754、ASTM D2457、ASTM D523、GB/T13891、GB/T7706、GB/T8807、JJG 696
Steps
1. The boot instrument automatically self-calibrates.
2. Align the probe with the measured Stone surface to ensure that the elliptical angle of the measurement port is in contact.
3. Press the measurement button for gloss measurement.
4. Read and record measurement data.
Notice
- operation temperature range is 15~ 40 ℃, relative humidity < 85% and no condensation.
- Storage temperature range is -10~ 60 ℃.
- Use 1.2~ 1.5V AA (No. 5) rechargeable or alkaline batteries to ensure sufficient power supply.
- Avoid scratching the probe during measurement, using elliptical angle and soft surface design.
- Instrument housing is non-conductive material, pay attention to safe operation to prevent electric shock.
