LINSHANG LS300 Insulation film temperature Tester Automotive film temperature measuring box, double lamp temperature unevenness 2C °

Name: LINSHANG LS300 Insulation film temperature Tester Automotive film temperature measuring box, double lamp temperature unevenness 2C °
Brand: LinShang
SKU: NB002150
Price: 245.0 USD
Availability: InStock

$ 245.00Ex works

150W Philips infrared lamp, double lamp temperature non-uniformity of 2C °, unilateral temperature Measurement accuracy +/- 0.5 ° C, can compare the heat insulation effect of two materials at the same time and display the temperature difference in real time.

Model

LS300

Get Quote

Category : Thermo-Hygrometer

Brand : LinShang

SKU : NB002150

Service :The delivery and service By NBCLab.Com

Overview

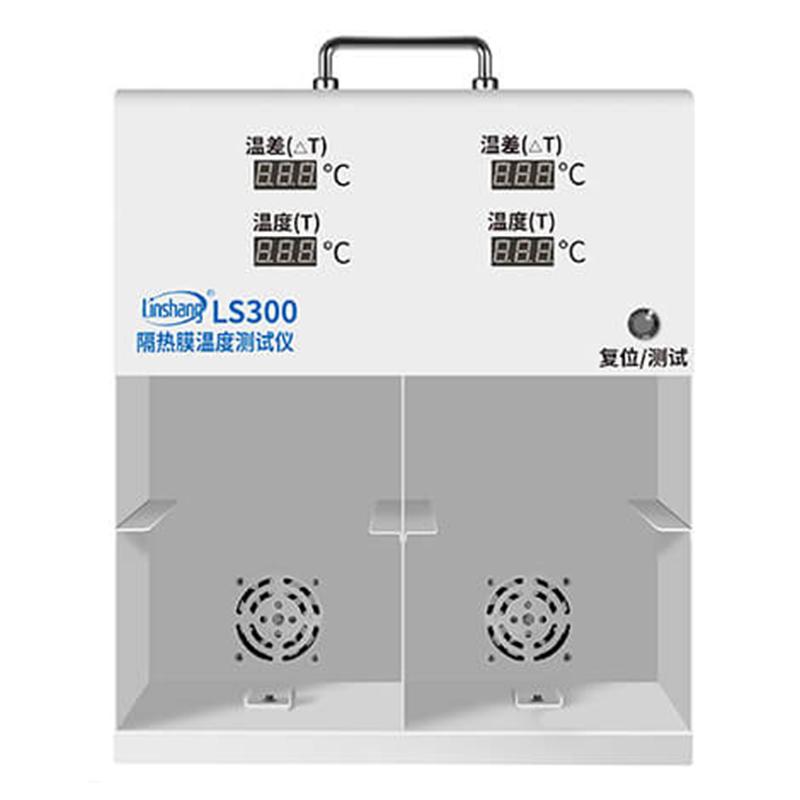

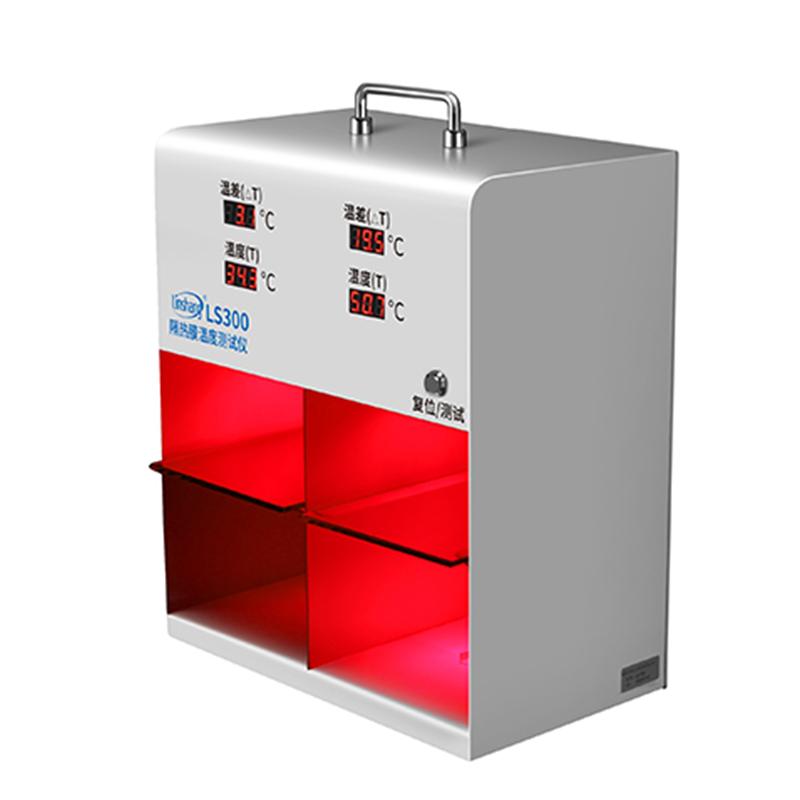

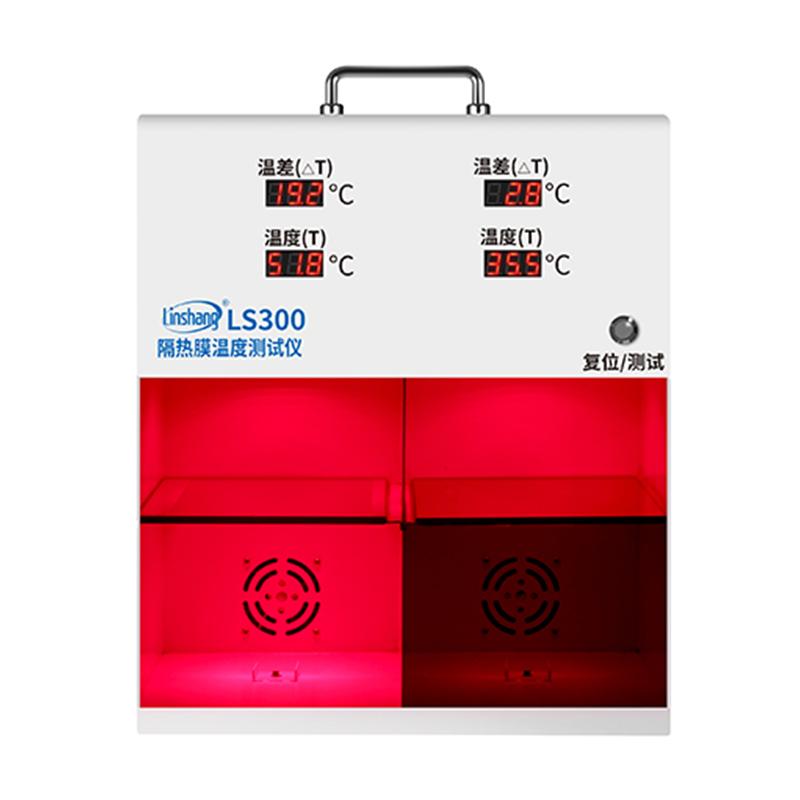

LS300 insulation film temperature tester is a professional test box for testing the insulation temperature of automotive film. It can compare and test the insulation effect of two different materials at the same time, and directly display the temperature difference before and after the test. It is a solar film temperature tester that can be sensed by hand.

Features

1. Adopt 150W genuine Philips infrared lamp, better thermal insulation effect demonstration 2. You can directly use your hands to feel the temperature change with or without the thermal insulation film 3. Simultaneously display the real-time temperature value and the rising temperature difference during the test

Principle

The test sample is illuminated by infrared lamp, and the real-time temperature value and temperature difference are measured and displayed at the same time, and the thermal insulation effect of two different materials is compared.

Applications

Automotive membrane insulation performance test

Measurement accuracy of unilateral temperature
±0.5℃
Double lamp temperature unevenness
2℃
Measurement Range
-55℃——+125℃
Temperature test time
1 minute
Measurement accuracy of insulation rate
+/- 2% (colorless uniform light-transmitting substance)
Glass Size for testing
200*160mm
instrument weight
About 13kg
Dimension
340*200*400mm（L*W*H）
power supply
220V AC
