Overview

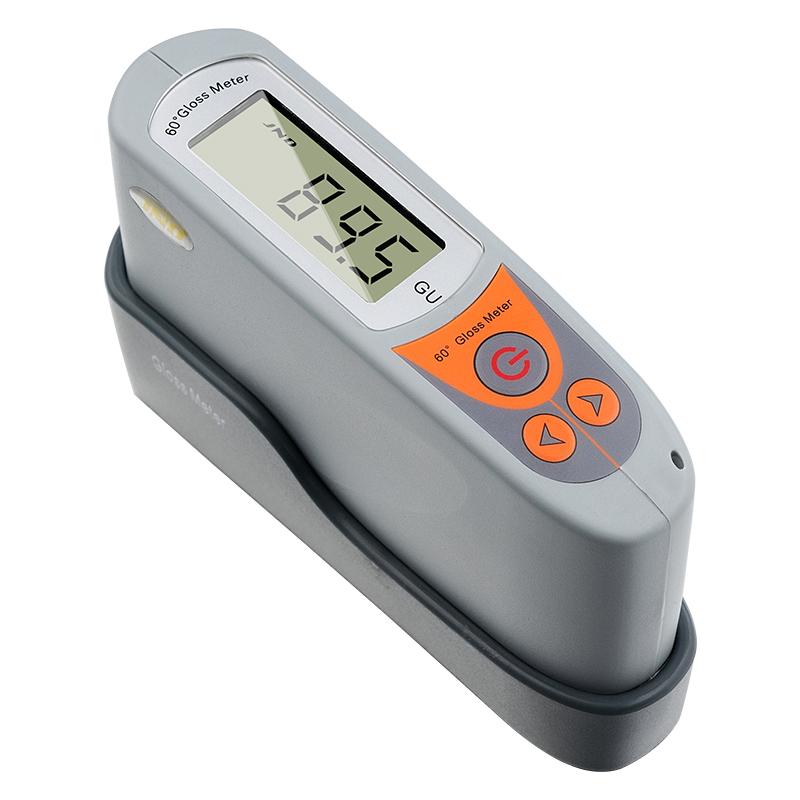

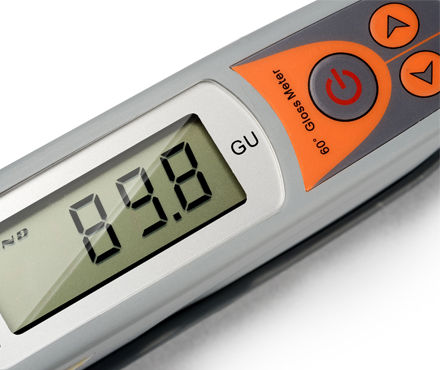

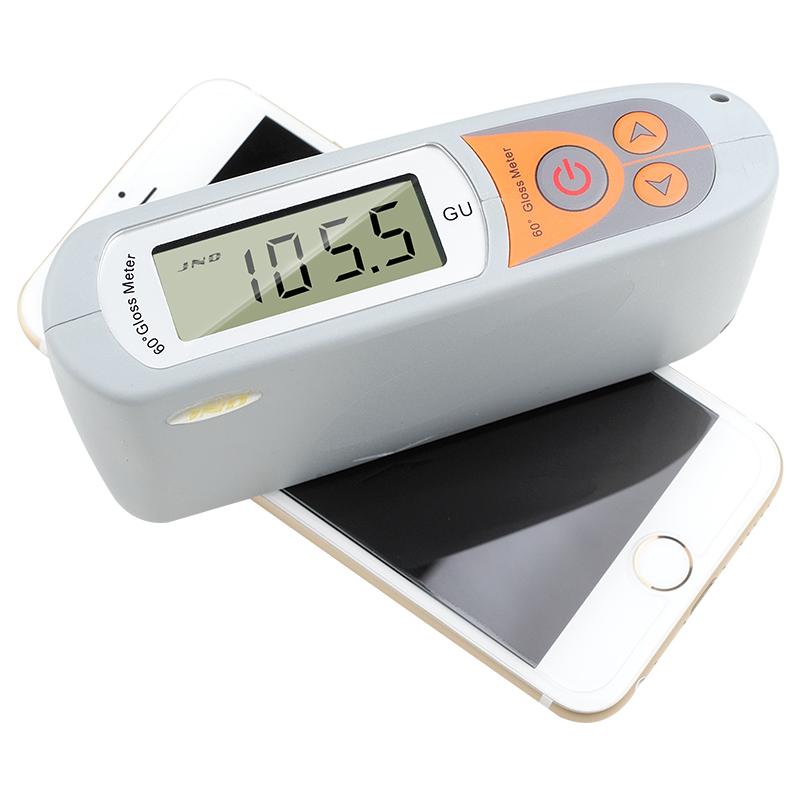

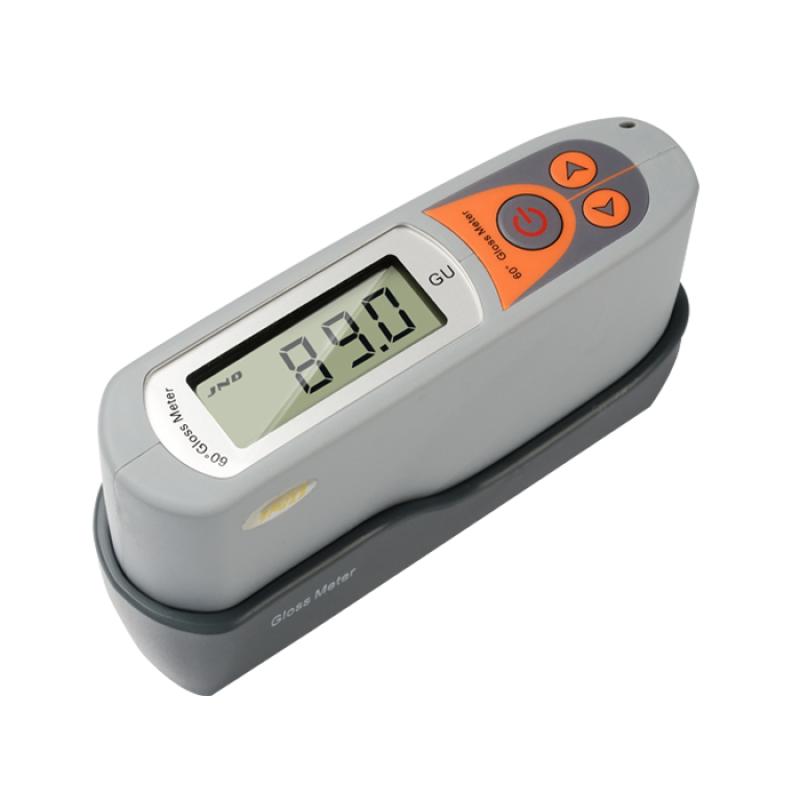

XP6 small aperture Portable Glossiness Meter is an ultra-high accuracy gloss measurement instrument of JND brand. It is designed and manufactured with reference to international standard ISO 2813 and Chinese national standards GB/T13891, GB9754, GB7706, GB8807. Its technical parameters comply with ASTM D2457, ASTM D523 standards, and use small Measuring Area and window. It is suitable for small plane gloss measurement. The performance indicators meet the requirements of the national standard JJG 696-2002 first-class working machine. Traceability of Gloss value comes from Shanghai Institute of Measurement and Testing Technology (SIMT).
Features
1. Small hole probe design, suitable for concave-convex surface and small area gloss measurement.
2. Intelligent boot self-calibrating, High Accuracy, High Stability, Instant test, Simple and convenient operation.
3. Intelligent error compensation device design, users can easily adjust without returning to the factory.
4. The measurement data has passed the trusted certification for five consecutive years and can be Traceability to the SIMT National Measurement verification center.
5. Professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility.
6. Ergonomic shell, high-end mold one-time molding, anti-skid, lightweight, can resist a variety of solvents (patent number: ZL 2014 3 024 2920.5).
7. High-end nonconductive shell, high safety factor, to avoid electric shock.
8. The power supply adopts imported high-end management chips, and the maximum charge can reach 80 hours of continuous measurement.
9. Imported non-mechanical three-proof power switch, long life, good feel.
10. Elliptical angle, soft surface probe design, effectively prevent the measurement process from scratching the measured object.
Principle
The XP6 Glossiness Meter is based on the principle of Optical inspection reflection and evaluates the Gloss performance of materials by measuring the Glossiness value of the reflected light on the surface. The instrument adopts a tiny Measuring Area and window design, combined with an intelligent error compensation device to ensure the accuracy and Stability of the measurement data. It is suitable for gloss measurement of various Non-metallic surfaces.
Applications
Paints Coatings, Decoration Materials, Building Materials, Plastic Materials, Bamboo and Wood Products, Ceramic Products, Metal Polished Surfaces, Eletroplating Surfaces, Painting Surfaces, Leather Products, Film Paper, Printing inks, Stone and many other fields of material products and various Non-metallic surface gloss measurement.
Standards
ISO 2813、GB/T13891、GB9754、GB7706、GB8807、ASTM D2457、ASTM D523、JJG 696-2002
Steps
1. Start self-calibrating.
2. Align the probe with the surface of the object to be tested.
3. Press the measurement button for measurement.
4. Read and record measurement data.
Notice
• Operating temperature range is 15~ 40 ℃, storage temperature is -10 ℃~ 60 ℃.
• The relative humidity should be less than 85% without condensation.
• Make sure the instrument is fully charged before use.
• Avoid scratching the surface of the test object with the probe during measurement.
• Regularly calibrate instruments to maintain Measurement accuracy.
