Overview

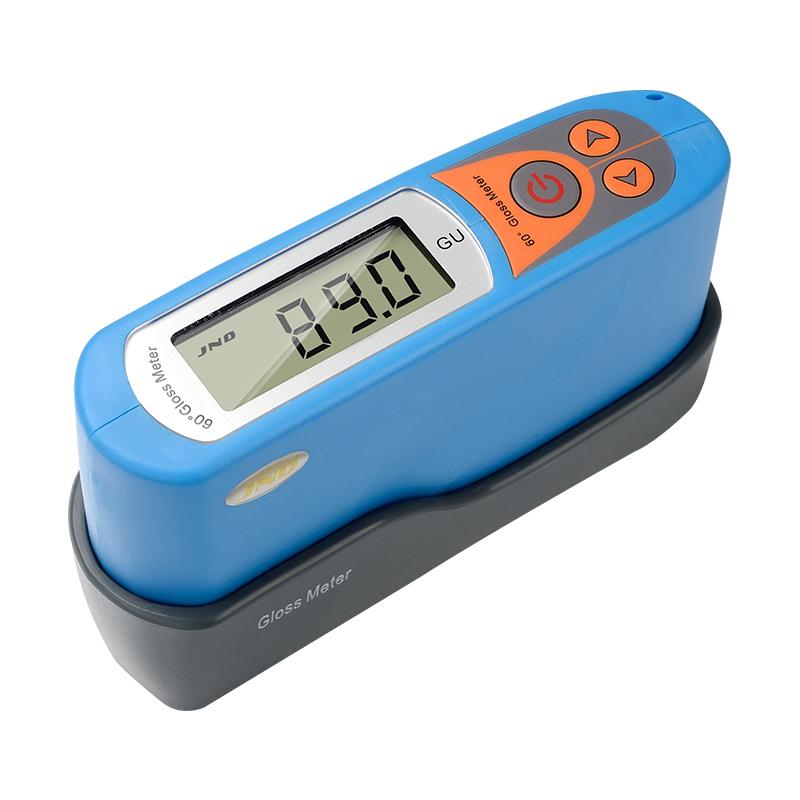

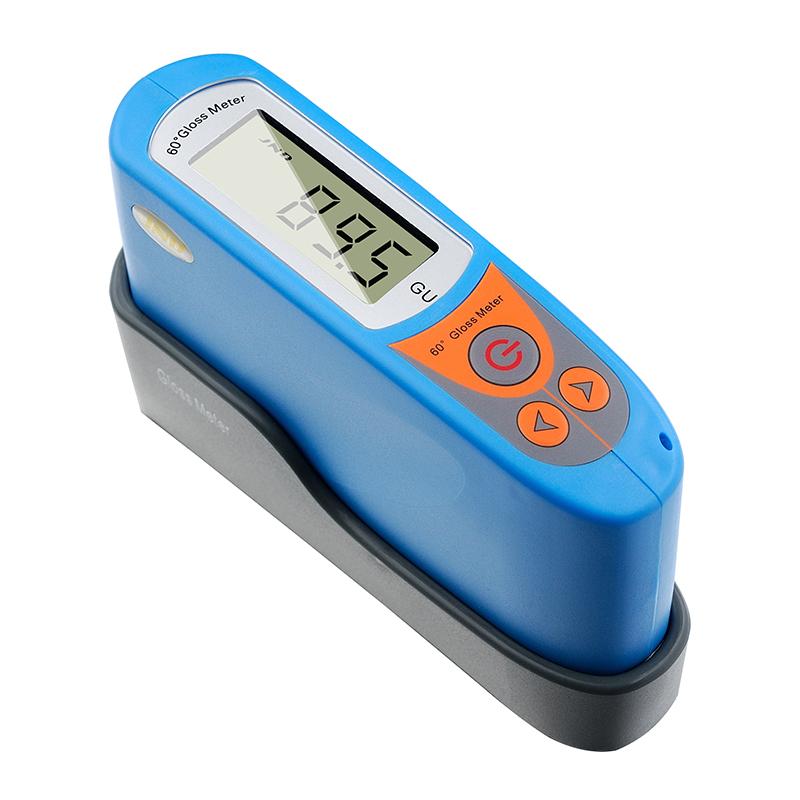

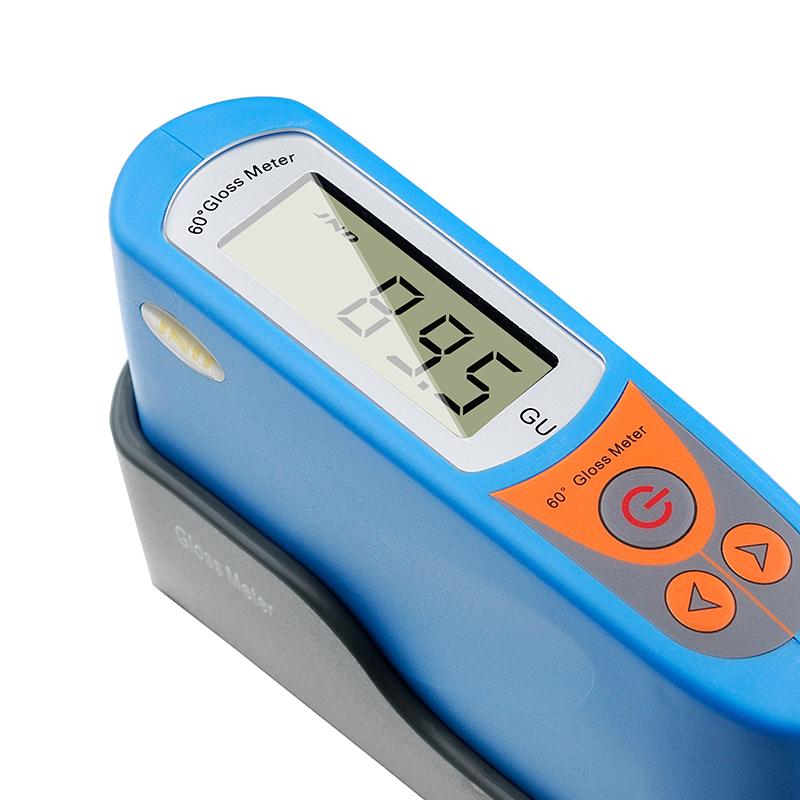

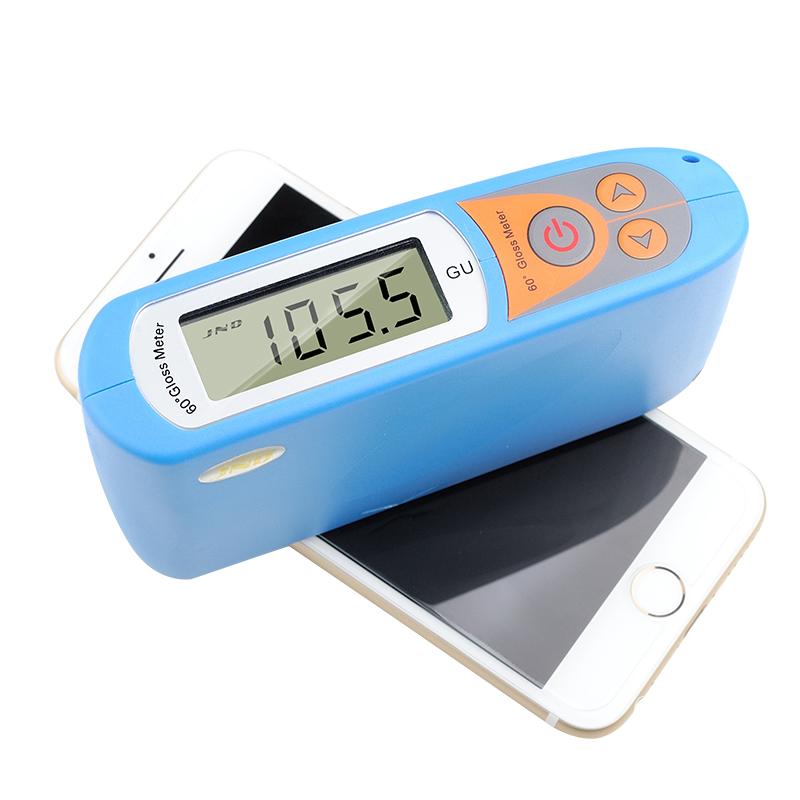

XA6 Portable Glossiness Meter is a Portable gloss measurement instrument designed and manufactured by JND brand with reference to international standard ISO 2813 and Chinese national standards GB/T13891, GB9754, GB7706, GB8807. Its technical parameters comply with the provisions of ASTM D2457 and ASTM D523 standards, and use micro Measuring Area and window. All performance indicators meet the requirements of the second-level working machine in the national standard JJG 696-2002 "Mirror Glossiness Meter and Glossiness Board" Measurement verification specification. The Gloss value of the instrument can be Traceability from the Glossiness benchmark of Shanghai Institute of Measurement and Testing Technology (SIMT).
Features
1. Small hole probe design, suitable for concave-convex curved surface and small area gloss measurement.
2. Intelligent boot self-calibrating, High Accuracy, High Stability, Instant test, Simple and convenient operation.
3. The new intelligent error compensation device design allows users to easily adjust without returning to the factory.
4. Traceability of measurement data to the "SIMT" National Measurement verification center through credible certification for five consecutive years.
5. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility.
6. Ergonomic shell, high-end mold one-time molding, anti-skid, lightweight, and can resist a variety of solvents. (Patent No.: ZL 2014 3 024 2920.5)
7. Pay attention to safety with high-end nonconductive shell, high safety factor, to avoid electric shock.
8. The power supply adopts imported high-end management chips for up to 80 hours of continuous measurement at a time, which is effective in the industry.
9. Adopt imported non-mechanical three-proof power switch, which has a long lifespan and a good feel.
10. Elliptical angle, soft surface probe design, effectively prevent the measurement process from scratching the measured object.
Principle
The Glossiness Meter uses a small Measuring Area and window, adopts a professional optical path design, performs gloss measurement under 60 ° Measurement Angles, Measurement range 0~ 199.5GU, Graduation 0.5GU, and ensures the Stability and accuracy of measurement data through intelligent error compensation device and self-Adjustment.
Applications
Paints Coatings, Decoration Materials, Building Materials, Plastic Materials, Bamboo and Wood Products, Ceramic Products, Metal Polished Surfaces, Eletroplating Surfaces, Painting Surfaces, Leather Products, Film Paper, Printing inks, Stone and many other fields of material products and various Non-metallic surface gloss measurement.
Standards
ISO 2813、GB/T13891、GB9754、GB7706、GB8807、ASTM D2457、ASTM D523、JJG 696-2002
Steps
1. Start self-calibrating
2. Instant test
3. Perform gloss measurements
Notice
• Operating temperature: 15~ 40 ℃
• relative humidity: < 85%, no condensation
Storage temperature: -10 ℃~ 60 ℃
• Use a 1.2~ 1.5V AA (No. 5) rechargeable or alkaline battery
• Avoid use in environments beyond the specified Humidity range
