Overview

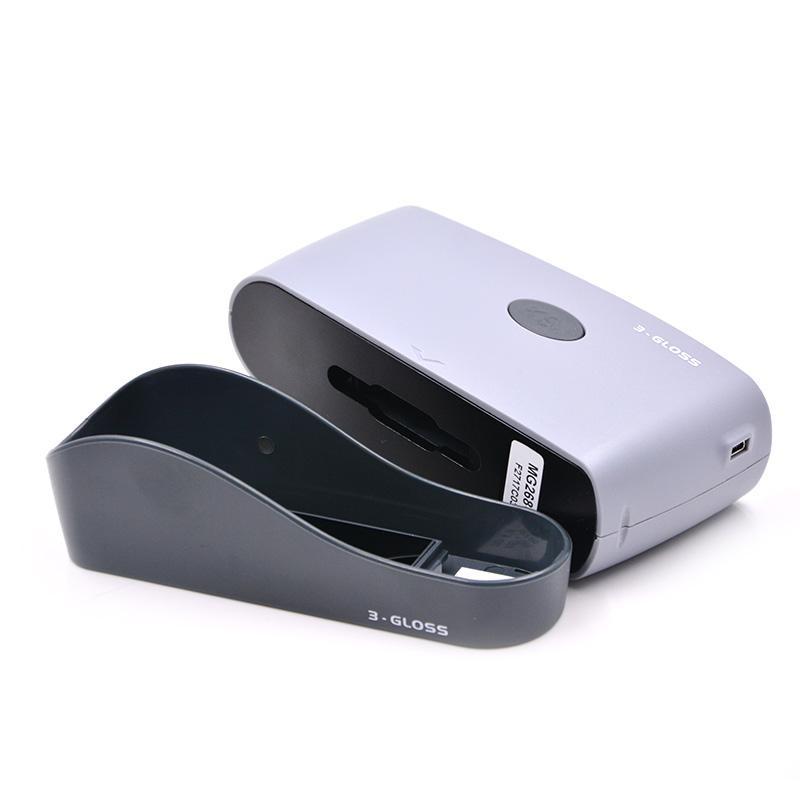

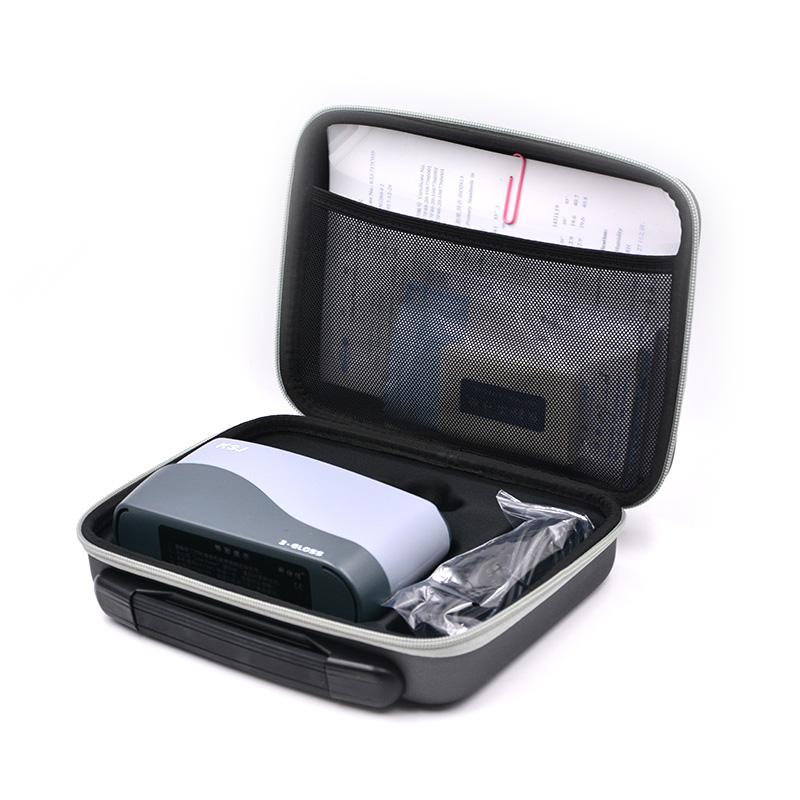

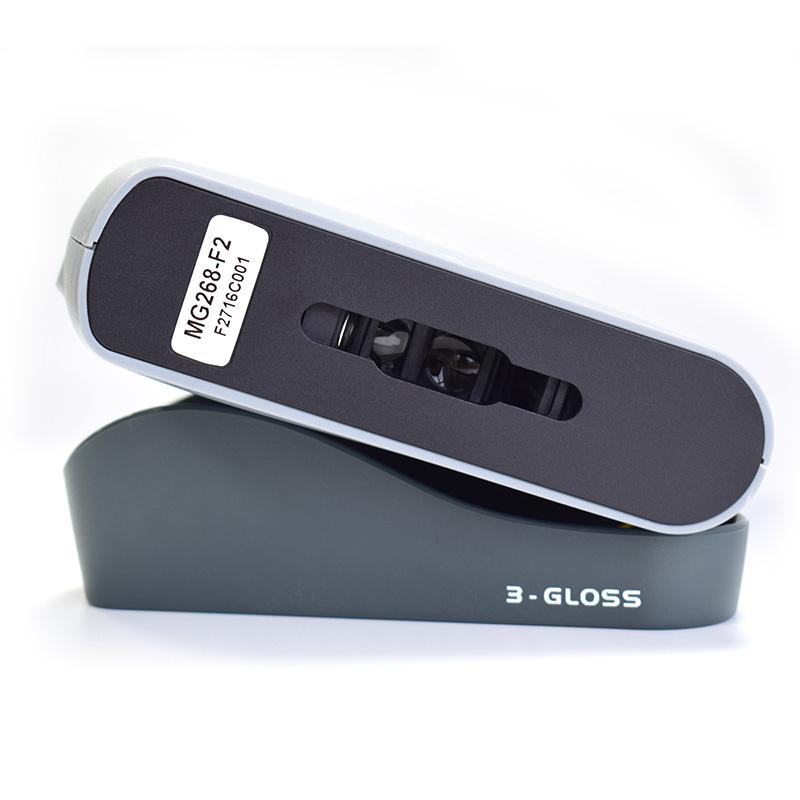

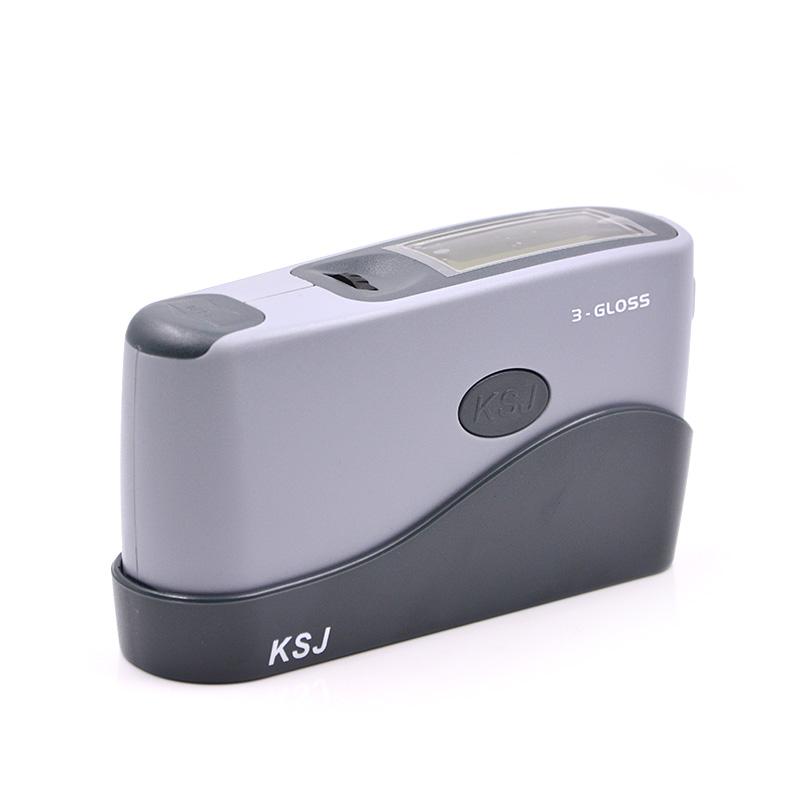

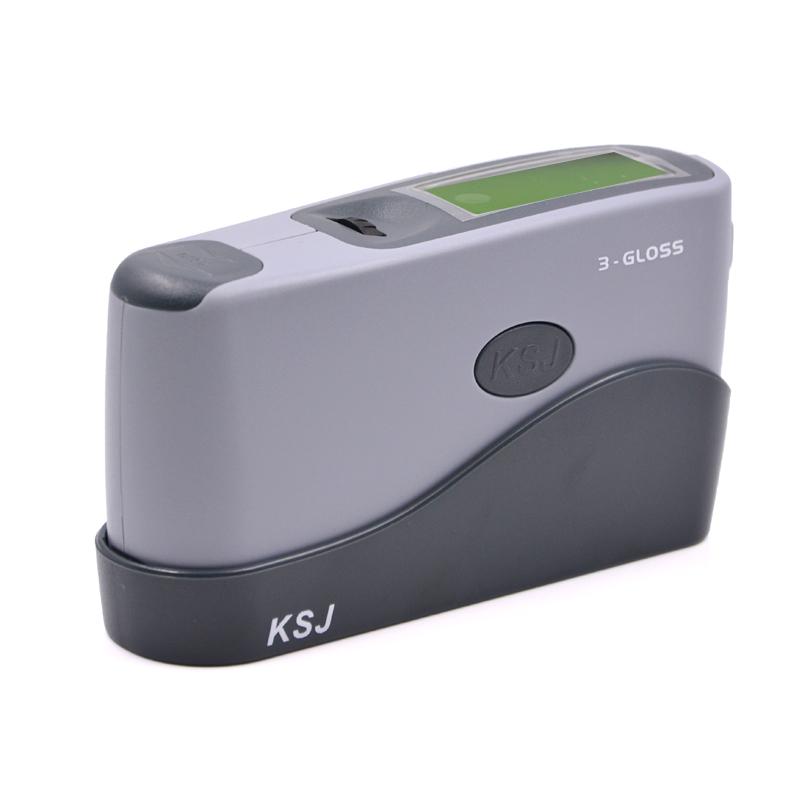

KSJ MG268-F2 smart Glossometer is a gloss measurement instrument designed and manufactured with reference to international standard ISO2813 and Chinese national standard GB/T9754. Its technical parameters comply with ASTM D523, GB/T13891, GB7706, GB8807 standards, and the performance indicators meet the requirements of the first-class working machine of the national JJG 696-2002 Measurement verification regulation. Traceability of Gloss can be obtained from the Glossiness national benchmark of Shanghai Institute of Measurement and Testing Technology.
Features
1. Multi-angle one-click measurement
2. Optional angle mode
3. Power-on self-diagnosis, self-school
4. Rich display interface: display the current Measured value, average value, group number and measurement number at the same time
5. measurement data are grouped in advance, with a maximum of 99 measurements per group
6. Measurement unit defaults to Gloss unit (GU), can be switched to percentage reflectance (%)
7. You can browse the measurement data by specifying the packet number
8. Immediate deletion of invalid measurements

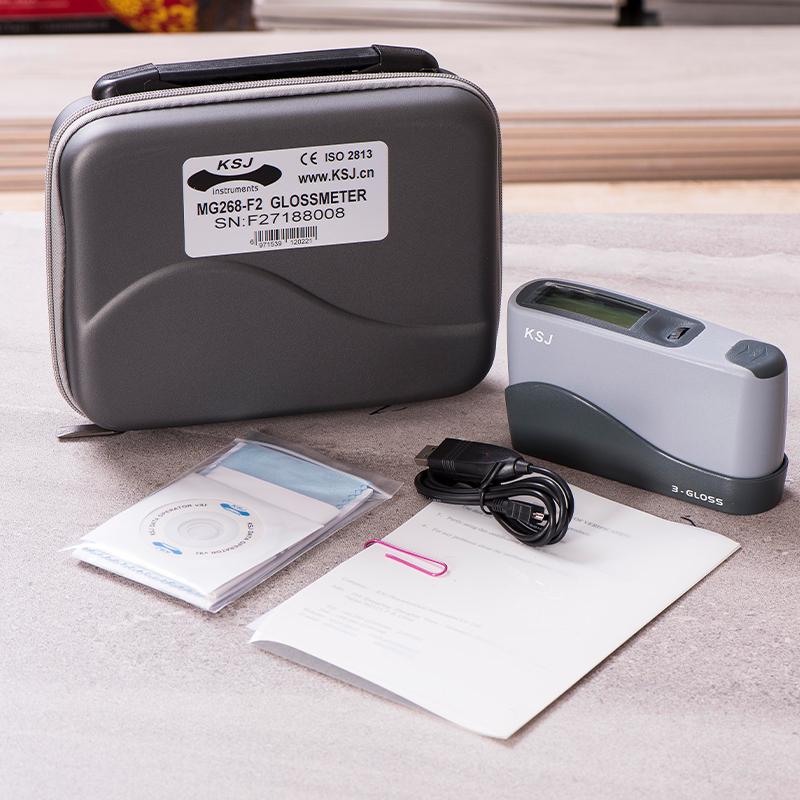

9. Comes with USB adapter and Gloss data processing software
10. With low power prompt, space full prompt function
11. With haze value calculation and percentage reflectance unit conversion function
12. Mass storage, can store 10,000 measurement data or 999 group data
Principle
The KSJ MG268-F2 smart Glossometer is based on the principle of gloss measurement. Illuminant irradiation of the sample surface at multiple angles (20 °/60 °/85 °) detects the reflected light intensity and calculates the Glossiness value. The instrument uses an intelligent processing system to realize one-button measurement, Data storage and unit conversion functions.
Applications
Paints Coatings, Decoration Materials, Building Materials, Plastic Materials, Bamboo and Wood Products, Ceramic Products, Leather Products, Film Paper, Printing inks, Auto Care, Molding Moulds
Standards
ISO2813、GB/T9754、ASTM D523、GB/T13891、GB7706、GB8807、JJG 696-2002
Steps
1. Power-on self-diagnosis and self-school
2. Select Measurement Angles Mode
3. Complete the measurement with one click
4. View the display interface data
5. Storage of measurement data in groups
6. Connect the software to process the data through the USB adapter
7. Delete invalid measurement data
Notice
• Operating temperature range is 10~ 40 ℃, Storage Temperature range is -10 ℃~ 60 ℃
• Use one AA (or LR6) alkaline dry battery or rechargeable battery, pay attention to the low power prompt
• Measuring Area size varies by angle: 20 ° is 9 * 10mm, 60 ° is 9 * 16mm, 85 ° is 5 * 39mm
• Process data in a timely manner when the storage space is full
• Ensure that the instrument is used in a standard environment to ensure measurement accuracy
