Overview

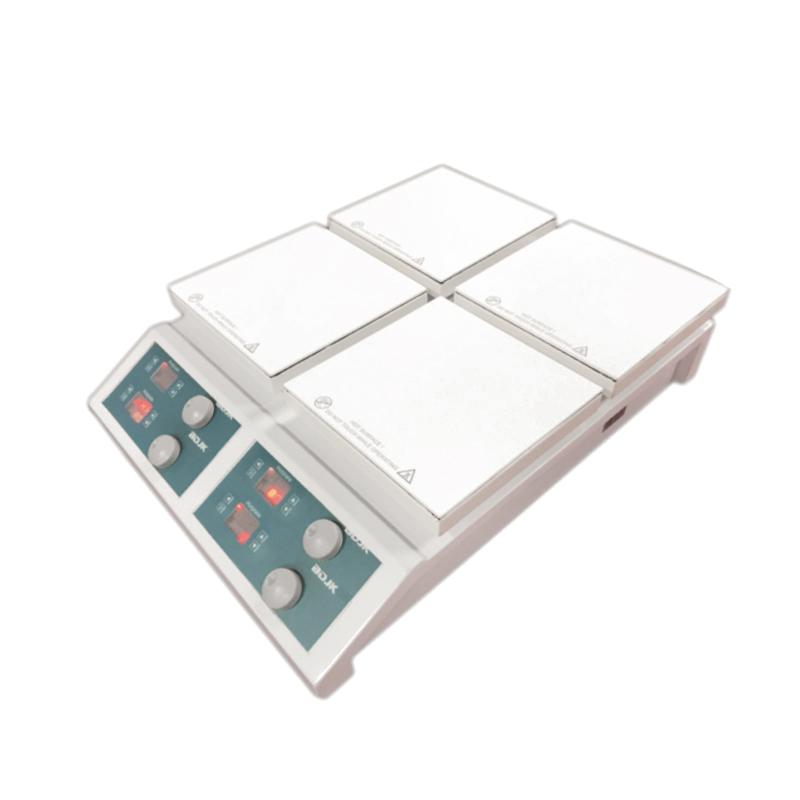

BDJK quadruple HMS-901D heating Magnetic Stirrer is powered by NanoHeat world-class thermal energy technology, no mechanical heating components, dry burning and no electromagnetic field interference. The device has ultra-fast heating capability, the temperature increases at a rate of 5 ° C per second, the plate surface temperature is uniform, and it only takes 8 minutes to heat up to 450 ° C. It is equipped with LED display, temperature setting, internal and external temperature Probe free switching and over-temperature alarm function.
Features
1. Adopt NanoHeat world-class thermal energy technology, no mechanical heating components, dry burning, no electromagnetic field interference and harm
2. Ultra-fast heating technology, the temperature increases at a rate of 5 ° C per second, the plate surface temperature is uniform, and it only takes 8 minutes to heat up at an extremely high speed of 450 ° C
3. LED display, the specified temperature can be set, and the built-in and external temperature Probe can be freely switched
4. Over-temperature alarm function, setting thermometer function
5. German Schott Microcrystalline Pottery and porcelain board surface, acid, alkali, corrosion resistance, easy to clean
6. Stirring performance is stable, using DC motor, low noise, long life, low speed and stable, high speed and strong
7. Speed digital display, stepless speed regulation
8. Free from magnetic interference and hazards, suitable for Glass, Pottery and porcelain and metal utensils
Principle
The equipment is heated by NanoHeat thermal energy technology implementation, without mechanical heating components, and uses microcrystalline Pottery and porcelain plates to conduct heat evenly. The Stir system uses a DC motor to drive the magnetic Stir to achieve stepless speed regulation, monitors the temperature through the internal and external temperature Probe, and LED displays and controls the set temperature to ensure that the heating and Stir process is stable and accurate.
Applications
Industrial, agricultural, chemical, biological and other experimental heating and Stirring
Steps
Connect the power supply, ensure that the voltage is 220V or 110V, and the frequency is 50/60Hz.
2. Stir in a container made of Glass, Pottery and porcelain or metal
3. Turn on the device and set the required temperature and speed through the LED display
4. Select Built-in or External Temperature Probe for Temperature Monitoring
5. Start the heating and Stir function, observe the speed and temperature display
6. Turn off the equipment after use, clean the Microcrystalline Pottery and porcelain board
Notice
- Ensure that the Ambient Temperature is within the range of 5 ° C to 40 ° C, and the relative humidity is lower than 90%
- Max. stirring Capacity not exceeding 5L per station, total load weight not exceeding 20L
- Stir length should not exceed 80mm
- Avoid long-term use in humid or corrosive environments
- Use a soft cloth when cleaning to avoid hard objects scratching the surface of Microcrystalline Pottery and porcelain
- In case of over-temperature alarm, immediately check the set temperature or stop using
