Overview

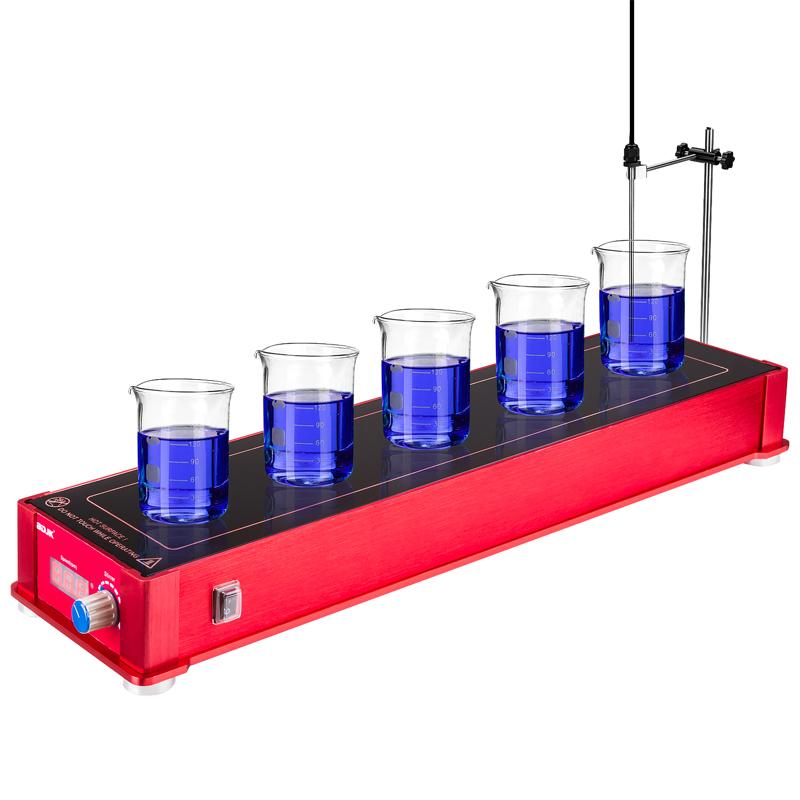

The HMS-10 multi-point Magnetic Stirrer is a multi-point digital Magnetic Stirrer of the BDJK brand, with 10 working positions and optional heating function. The product has a novel and beautiful design, easy operation, continuous adjustable Stir speed, and smooth and quiet operation of the instrument. The temperature of the heating plate surface can be arbitrarily set in the range of room temperature to 200 ° C, and the sample temperature can be heated up to 100 ° C. The heating module adopts nano-thermal energy technology, which heats quickly, has a large heating area and uniform heating. It is suitable for a large number of sample screening, foster, sample condensing, solvent evaporation and other experiments.
Features
1. The heating module adopts nano-thermal energy technology, no mechanical heating components, dry burning, no electromagnetic field interference and harm, large heating area, uniform heating, and extremely fast heating.
2. Stir 1-500ml standard or non-standard containers of various shapes and sizes.
3, using DC motor, stable performance, low noise, long life, low speed stable, high speed strong;
4. The fuselage is made of aluminum oxide alloy, and the appearance design is novel and beautiful;
5. The working panel adopts German Microcrystalline Pottery and porcelain, acid-resistant, alkali-resistant, high temperature-resistant, easy to clean.
Principle
The Magnetic Stirrer generates a swirl/spin magnetic field driven by a DC motor, so that the Stir placed in the container follows the magnetic field swirl/spin to realize the Stir mixing of the liquid. The model with heating function uses nano-thermal energy technology to heat the working panel, and heats the sample in the container through thermal conduction to achieve the synchronization of Stir and heating.
Applications
**, biology, petroleum, chemical industry, environmental protection, universities, R & D institutions, Inspection & Quarantine
Steps
1. Place the Stirrer on a stable work surface and connect the power supply.
2. Select the appropriate Stir according to the experimental requirements and put it into the container.
3. Place the container containing the sample in the corresponding position on the Stirrer working panel.
4. Turn on the power switch and adjust the speed knob to the required speed.
5. If heating is required, set the heating temperature and turn on the heating function.
6. After the experiment, first turn off the heating function, then turn off the Stir function, and finally disconnect the power supply.
Notice
• Before use, please ensure that the Ambient Temperature is within the range of 5 ℃~ 40 ℃
• The environment humidity should be less than 90%
• Max. Capacity of stirring shall not exceed 500ml
• Stir length should not exceed 40mm
Do not use in flammable and explosive environments
• Please use a soft cloth to wipe when cleaning the work panel to avoid the use of corrosive cleaners
Equipment should be well ventilated when running
• Non-professionals should not disassemble the equipment
