KSJ WGG60-EJ Single angle Glossmeter 60 ° Measurement range 0~ 999GU

Name: KSJ WGG60-EJ Single angle Glossmeter 60 ° Measurement range 0~ 999GU
Brand: KSJ
SKU: NB002172

Please contact customer service

Adopt 60 ° Measurement Angles, Measurement range 0~ 999GU, Measuring Area 18 * 36mm, Built-in rechargeable battery can be used continuously for more than 40 hours, Stability 1.2GU.

Model

Get Quote

Category : Gloss Meter

Brand : KSJ

SKU : NB002172

Service :The delivery and service By NBCLab.Com

Overview

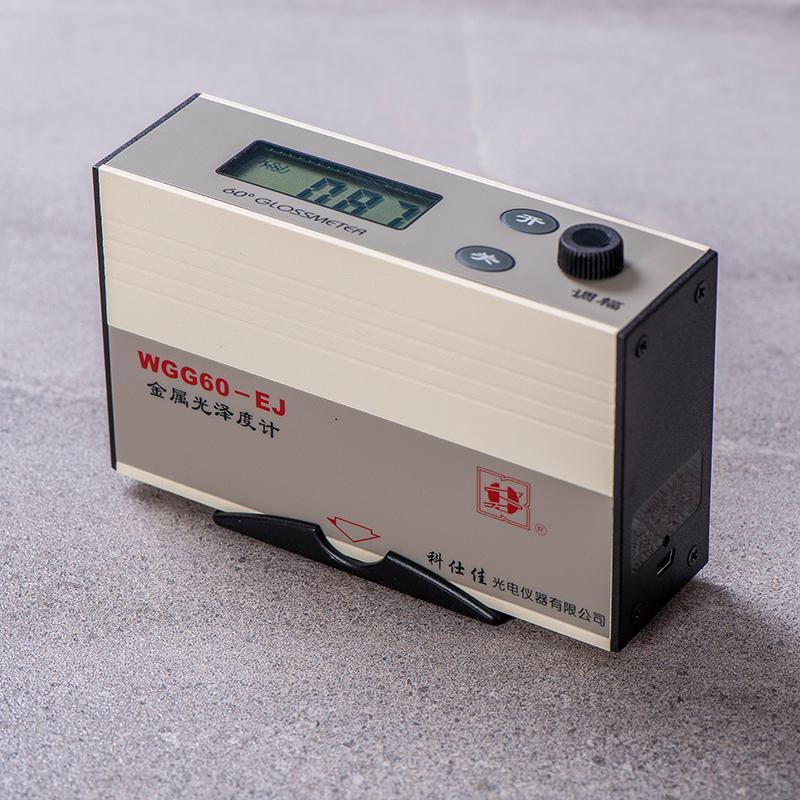

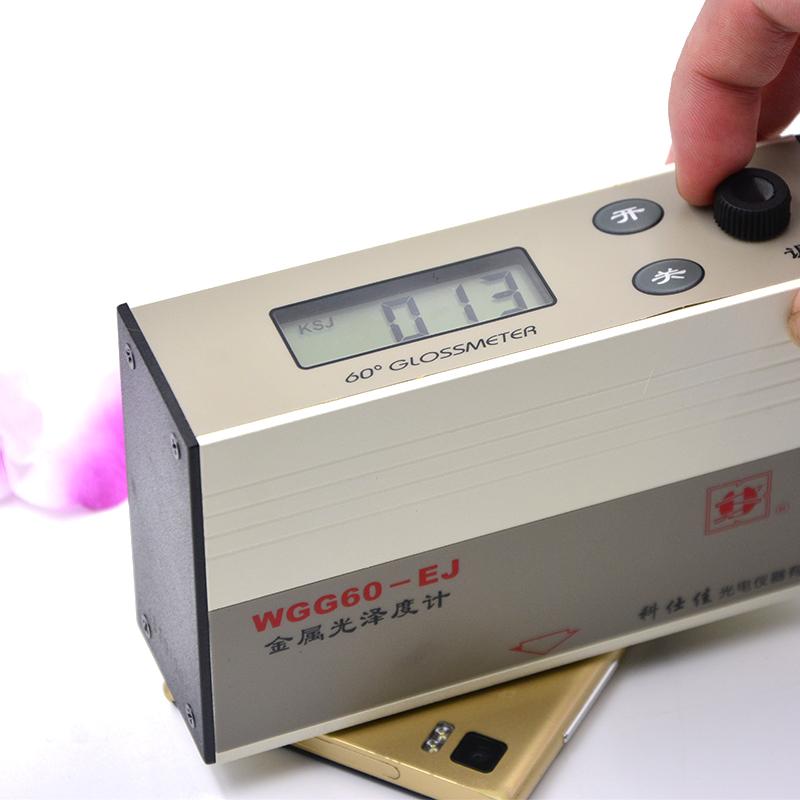

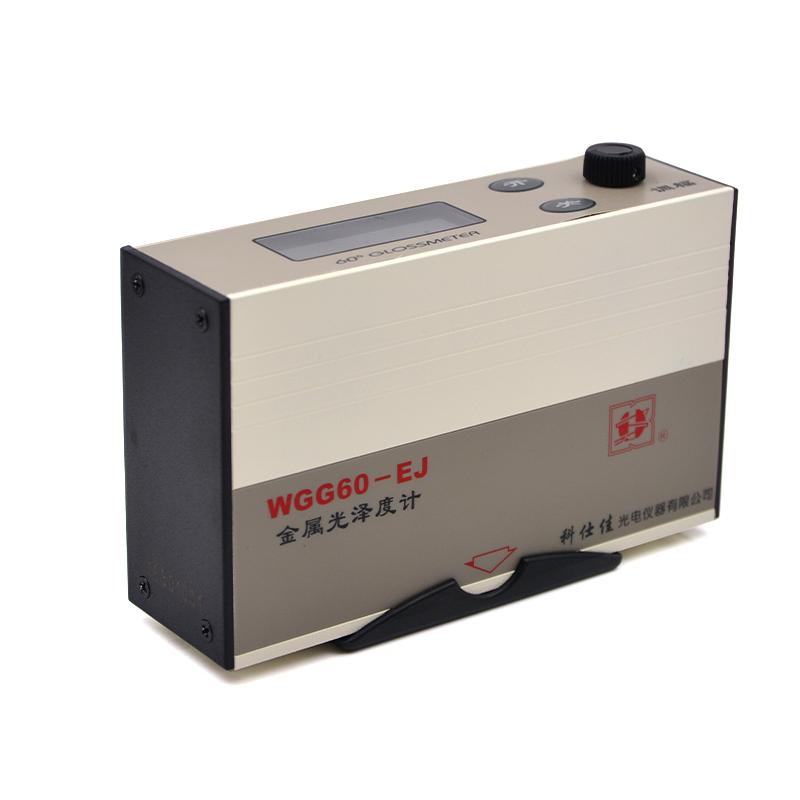

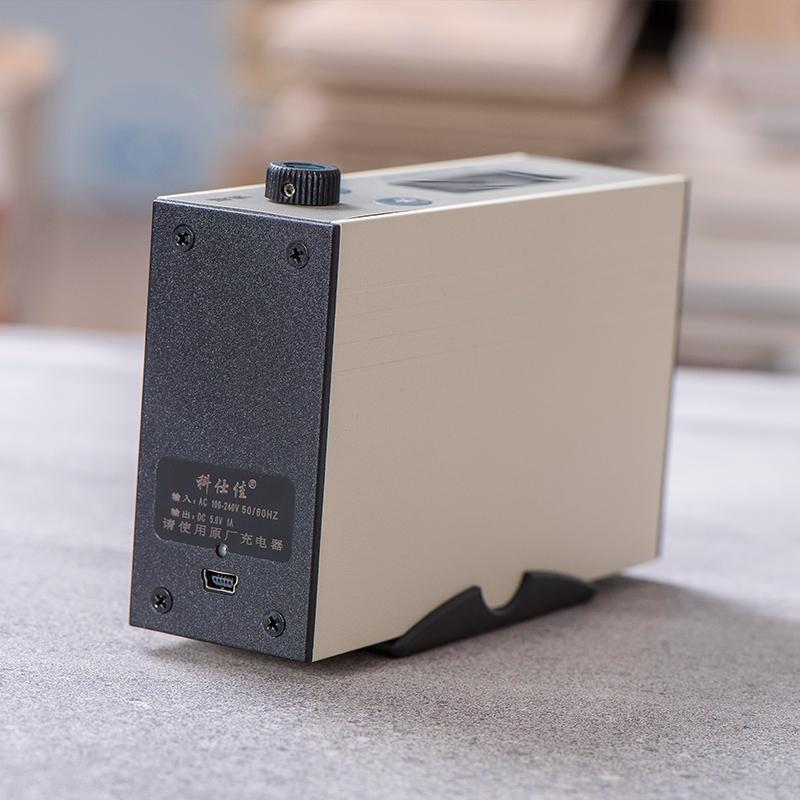

The KSJ WGG60-EJ single-angle glossmeter is a palm-sized, portable instrument with a built-in rechargeable battery pack. It can be used for more than 24 hours on a single charge. The instrument is well suited for Gloss measurement in various metal and Non-metallic planes.

Features

1. Palm size, easy to carry 2. Built-in rechargeable battery pack, long battery life 3. Gloss measurement for various metals and Non-metallic planes 4.3-Digit digital display with clear readings 5. Measurement range, covering 0~ 999GU

Principle

The WGG60-EJ single-angle glossmeter uses 60 ° Measurement Angles to calculate the Glossiness value by illuminating the sample surface with the Measuring Area and detecting the reflected light intensity, enabling accurate evaluation of the Gloss performance of various planar materials.

Standards

ISO2813、GB/T9754、JJG696-2002

Steps

1. Power on and prepare the instrument 2. Align the measurement port to the surface of the sample to be tested 3. Press the measurement button for measurement 4. Read the Glossiness value on the display 5. Shut down and save after use

Notice

• Ensure the measurement surface is clean and drying • Avoid use in a strong light environment • Regularly calibrate instruments to ensure Measurement accuracy • Use the matching charger when charging • Avoid high temperature and high humidity environment during storage

Measurement Angles
60°
Measurement Range
0~100GU；101~999GU
Measuring Area
18*36mm
Indication Error
±2GU
Graduation
1GU
Meet the standard
ISO2813、GB/T9754

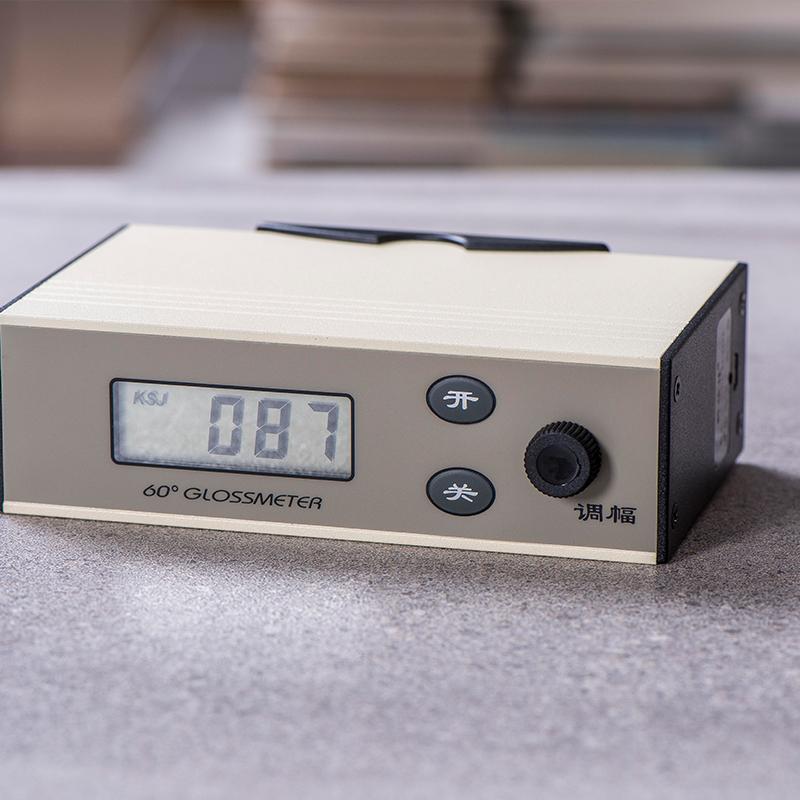

display screen
3-Digit digital display
weight
130*40*80mm
power supply
Built-in Ni-MH battery pack 4x1.2V, 600mAh

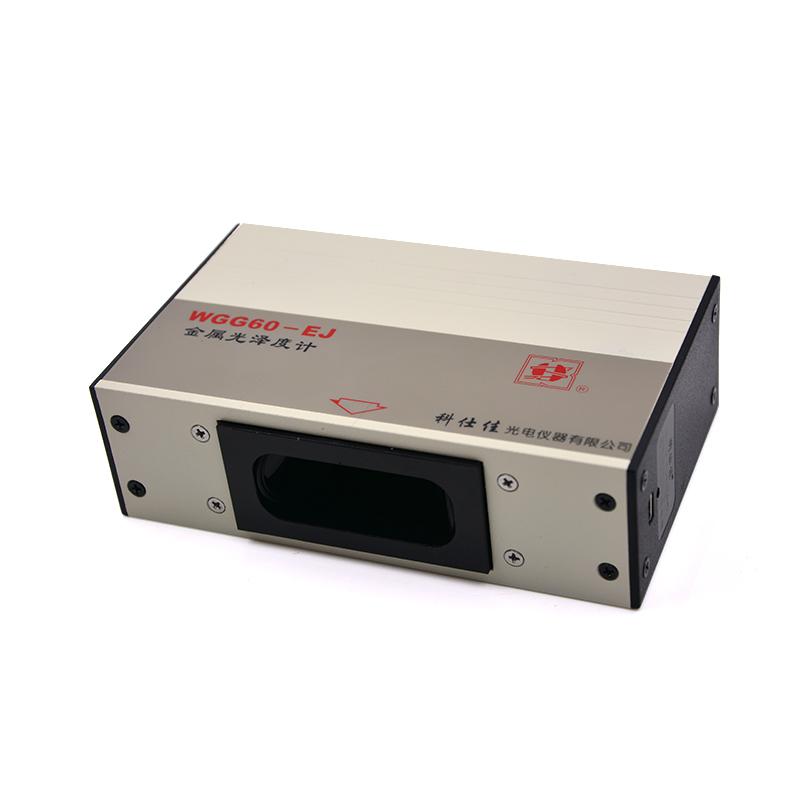

Measurement port Size
20*50mm
reading Range
0~999GU
Zero value error
1GU
Stability
1.2GU
Accuracy
+/- 1.5% Gloss unit
Operating Time
Power-on continuous use time > 40 hours
Charging time
14~16h
Charger
AC 187~ 242 (50Hz)
