Overview

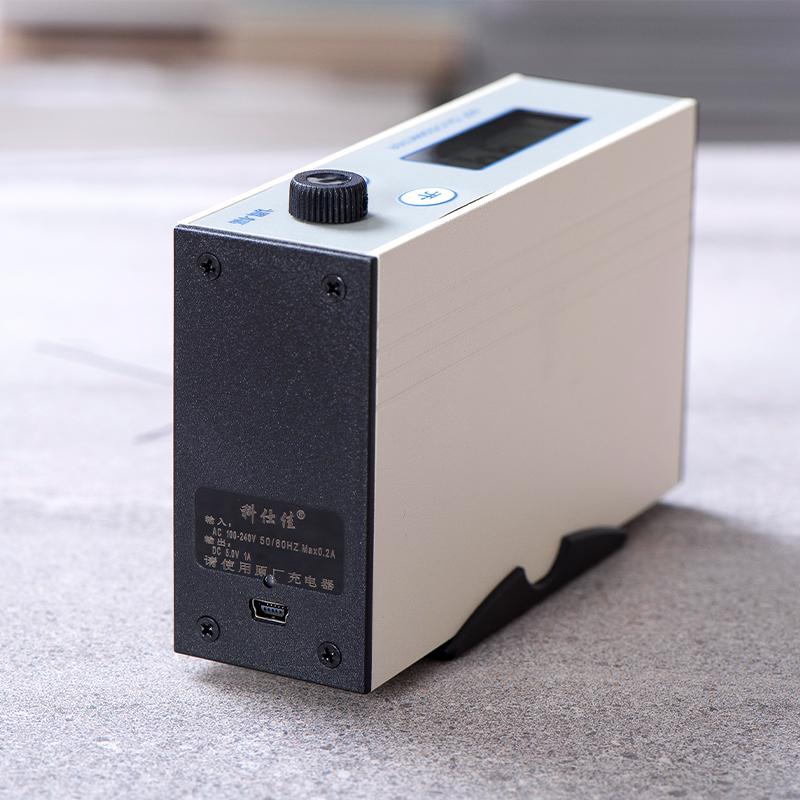

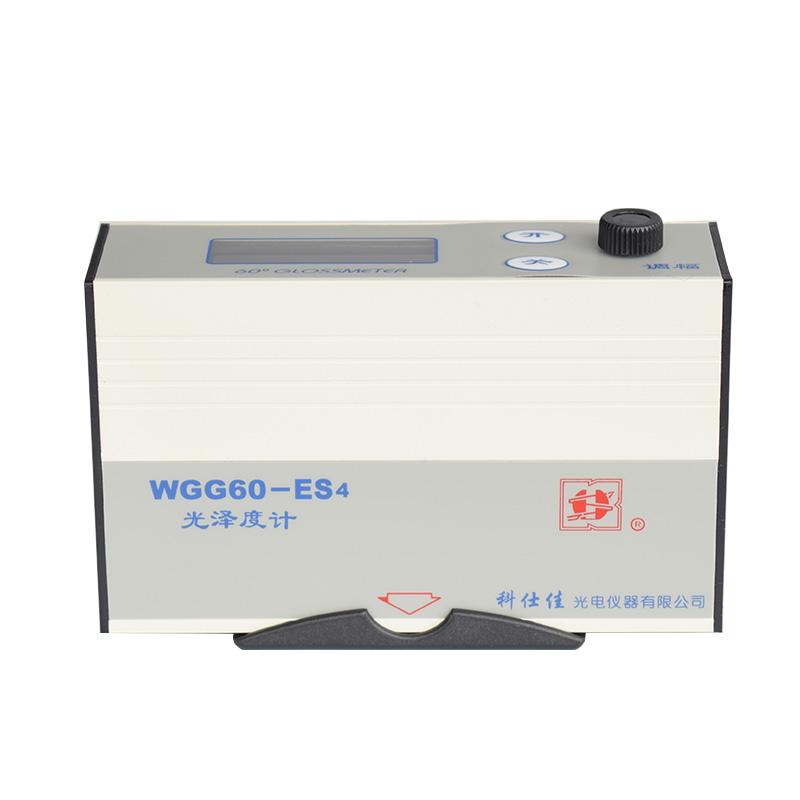

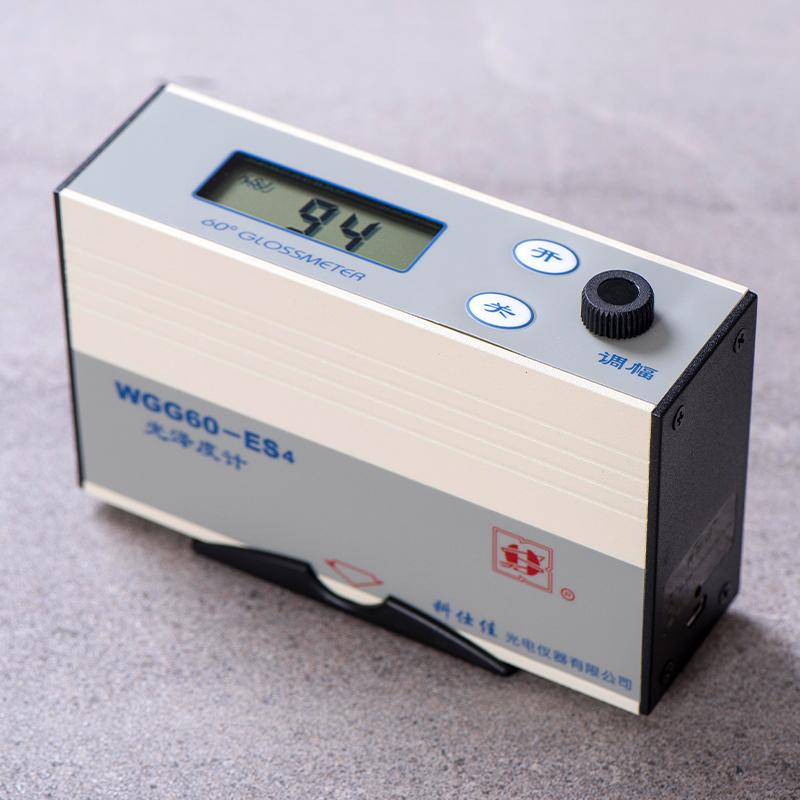

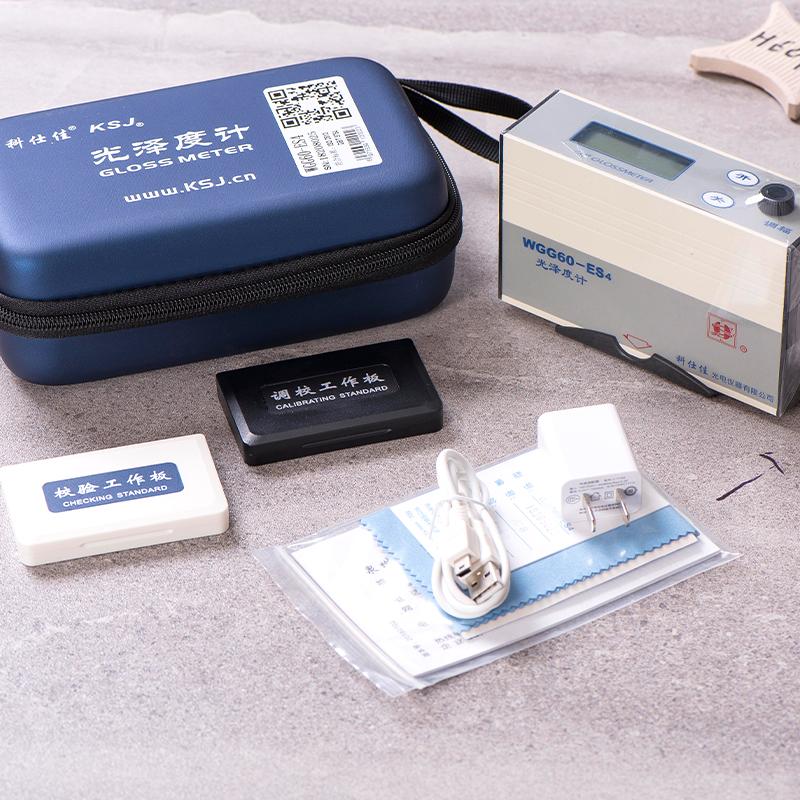

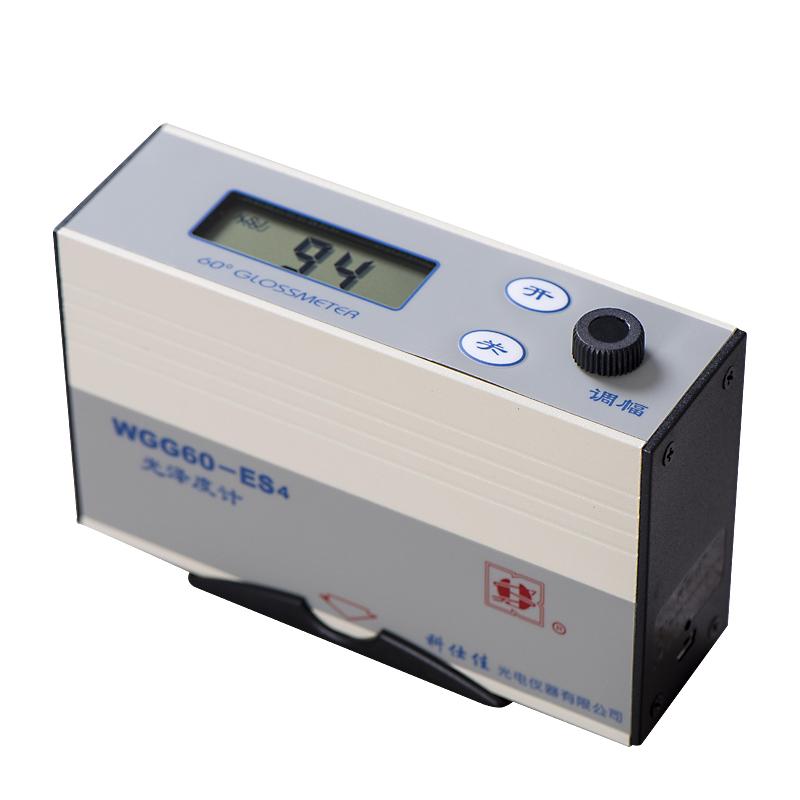

WGG60-ES4 Stone glossmeter is a KSJ brand Handheld measuring instrument, easy to carry in the palm size. Built-in rechargeable battery pack, it can be used for more than 24 hours on a full charge.
Features
1. Palm size, easy to carry
2. Built-in rechargeable battery pack, long battery life
3. Specially designed gloss measurement instrument for Stone
4. Measurement accuracy, Indication Error +/- 2GU
5. Good Stability, Stability 1GU
Principle

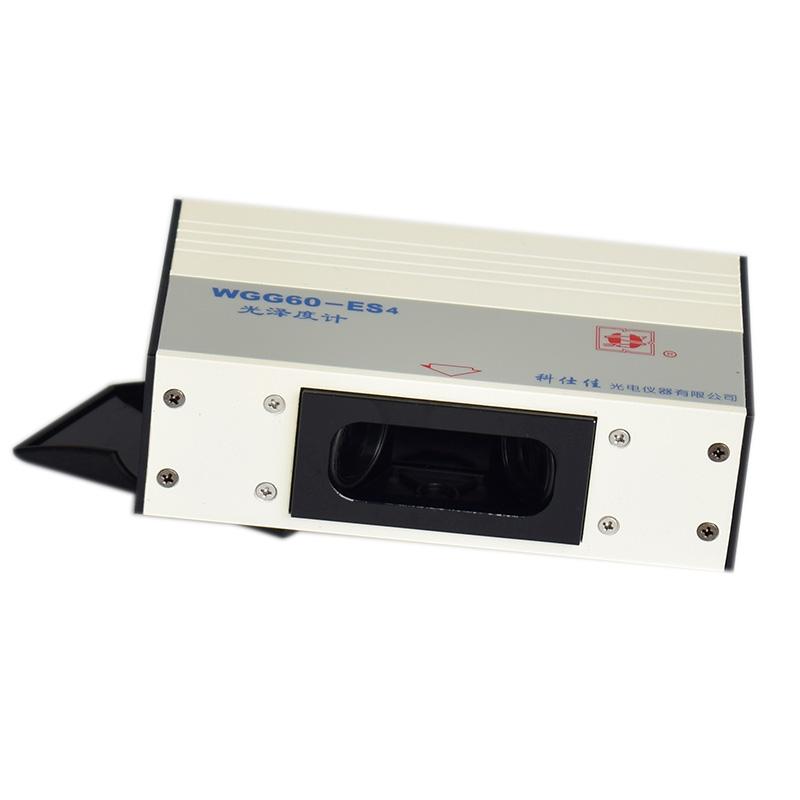

The instrument uses 60 ° Measurement Angles to detect the Glossiness of the Stone surface through the Optical inspection Measurement principle. The Measuring Area is 18 * 36mm, which can accurately reflect the Gloss characteristics of the Stone surface.
Applications
Gloss measurement of Marble, Granite, Terrazzo and other Stone surfaces
Standards
ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror-oriented Glossometer and Glossiness Board" Measurement verification procedures
Steps
1. Boot preparation: ensure that the instrument has sufficient power
2. Alignment measurement: align the measurement port with the surface of the Stone to be tested
3. Read data: Observe the display to obtain the Glossiness value
4. Record results: record measurement data
5. Shut down and save: turn off the instrument after use
Notice
• Make sure the battery is fully charged before use
• Keep the measurement port perpendicular to the Stone surface during measurement
• Avoid use in a strong light environment
• Measurement accuracy by calibrating instruments regularly
• Use the designated charger when charging, Charging time 14~ 16 hours
• Avoid high temperature and high humidity environment during storage
