Overview

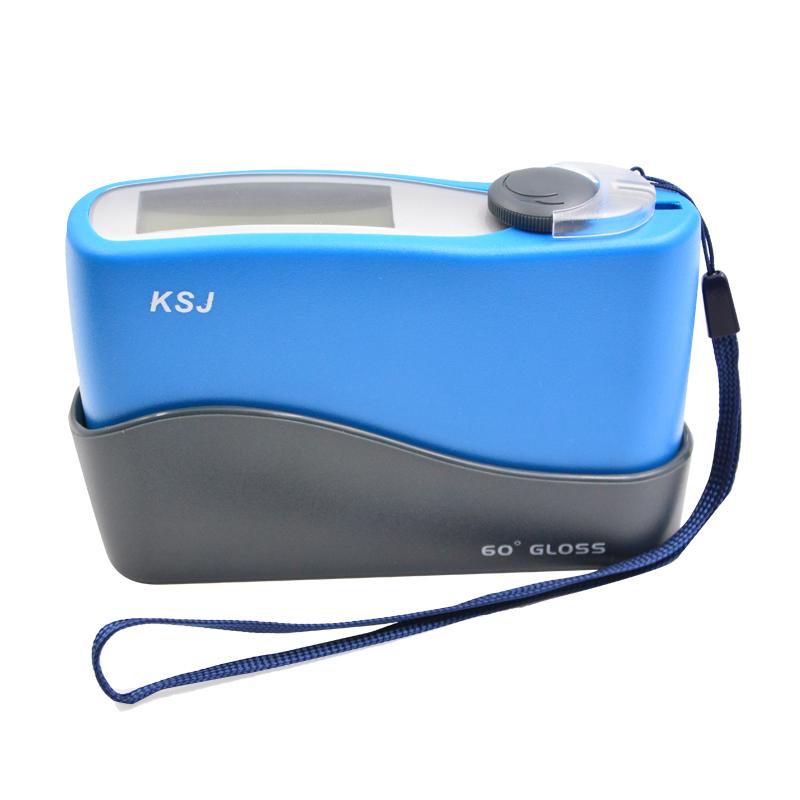

The KSJ MG6-SA Microporous Glossometer is a Portable Gloss measuring instrument with an integrated design, small size, beautiful Appearance, stable performance and easy use. It is suitable for Gloss measurement of facets and small curvature surfaces on various materials and objects, and is especially suitable for polishing mirrors.
Features
1. Single AA alkaline battery or rechargeable battery is equally easy to use, low energy consumption, single alkaline battery can last for more than 58 hours.
2. The whole set of instruments is designed in one piece, ready to use, easy to carry.
3. Special adjustment button protective cover, operation is more assured.
4. Anti-scratch coating treatment of the measuring port to prevent scratching the tested object.
5. Small size, Appearance beautiful, stable performance, easy to use.
Principle
The Glossometer through the measurement beam of light diameter 1.5mm, measurement window 4mmx2mm, 60 ° Measurement Angles on the material surface gloss measurement, reading range of 0~ 999GU, Graduation of 1GU.
Applications
Gloss measurement of facets and surfaces of small curvature on the surfaces of various materials and articles, Gloss measurement of various metal and Non-metallic materials and their coated platings, measurement of polished mirrors
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Steps
1. Install a single AA alkaline battery or rechargeable battery.
2. Boot-and-use, no complicated settings required.
3. Align the measurement port with the surface of the measured object for measurement.
Notice
• Ensure that the battery is fully charged before use, and the continuous use time of the alkaline battery is > 58h.
• Pay attention to the anti-scratch coating of the measuring port and avoid scratching with hard objects to protect the tested object.
• The adjustment button is equipped with a protective cover, please use it with care when operating.
• Make sure that the measurement port is in good contact with the surface during measurement to avoid errors.
