Overview

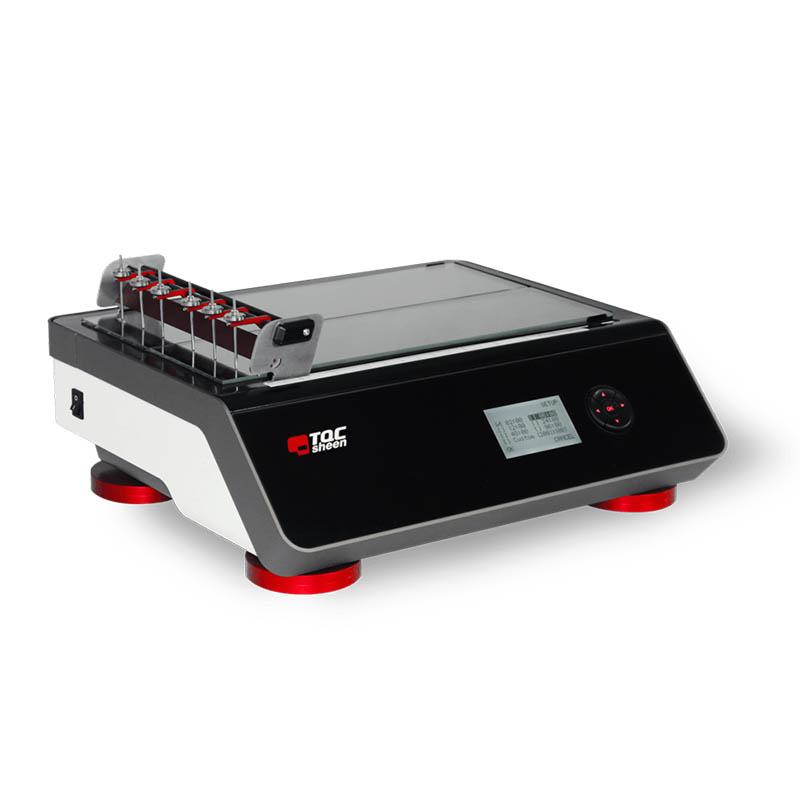

The drying time recorder (model AB3600) is a fully digitally controlled machine for defining the different stages of the drying process for paints and coatings, in accordance with the BK method. It is equipped with six tracks and two repeability-usable Glass beds, with the option of a narrow Glass bed, the results are easily checked through a digital display and an intuitive interface. The machine is powered by a 24V DC power supply, and the front panel is transparent Glass for easy cleaning.
Features
1. Temperature friendly design, operation temperature range -20 ° C to + 70 ° C, support testing in low -20 ° C environment, drive system Lubricant free to avoid the risk of thickening, display heating to improve low temperature visibility.
2. Wide and flexible time range, set from 1 minute to 200 hours, suitable for fast drying water-based paints and slow drying coatings, with high time accuracy and error less than 1% of the set time.
3. The compact structure complies with ASTM D5895, ISO 9117-4 and DIN EN 14022 standards, and is equipped with six tracks and a variety of Glass bed options for clear and easy operation.
Principle
The drying time recorder is based on the BK method and is digitally controlled to drive the pins to move across the paint surface, simulating different stages of the drying process. It uses six pins for trajectory testing on a Glass bed and automatically records the drying status according to a preset time range. Users can monitor intermediate or final results in real time through a digital display and interface.
Applications
Paints, coatings
Standards
ASTM D5895、ISO 9117-4、DIN EN 14022
Steps
Connect the 24V DC Power Adapter.
2. Place Glass Bed and Load Paint Sample.
3. Set the drying time range (1 minute to 200 hours) via the navigation button.
4. Start the machine and the needle automatically moves on the track.
5. Monitor the drying process with a digital display to check intermediate or final results.
Notice
• Ensure that the operating temperature is in the range of -20 ° C to + 70 ° C to avoid condensation.
• When using the provided Glass bed, you can choose a narrow Glass bed or a customized bed, pay attention to the maximum size limit (width 200mm, height 8mm, length 400mm).
The drive system is Lubricant-free and requires no additional maintenance, but it needs to be kept clean.
The display is automatically heated at low temperatures, but avoid extreme environments.
• The power supply must be 24V DC to ensure safe power supply.
