Overview

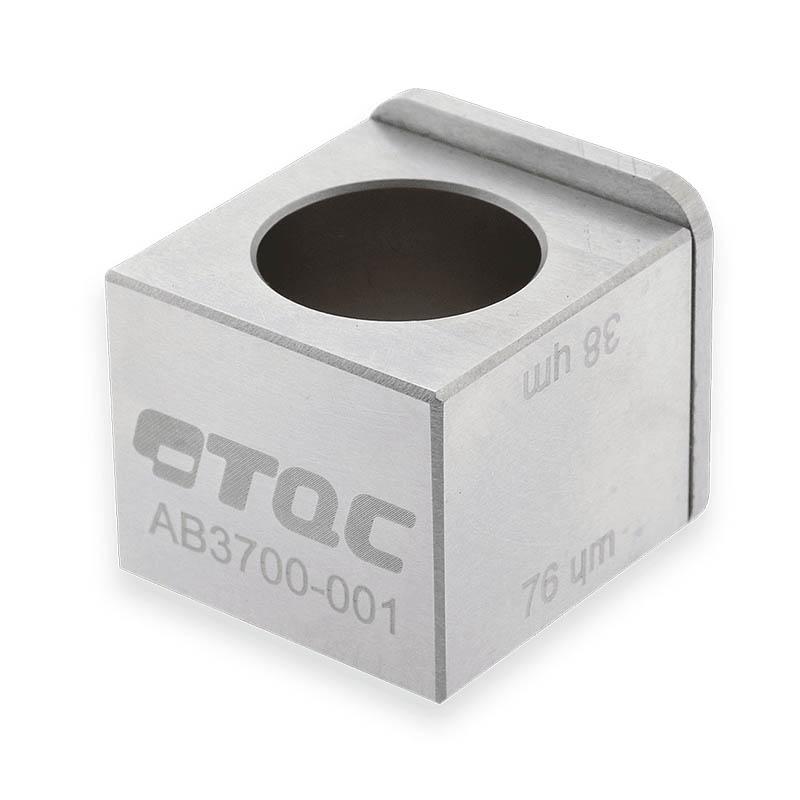

The TQC sheen AB3700 Film Applicator is a cube applicator for applying film of uniform film thickness. The product can be applied with 2 predetermined film thicknesses according to customer requirements and is particularly suitable for painting on test plates of Drying Time Recorder. The cube applicator comes standard with a guide plate. When used with a narrow Glass panel (AB3602), caster guides are not required. The guides can be easily removed with screws.
Features
1. Made of ASAB Stavax ESR stainless steel tool steel, subjected to zero degree vacuum hardening (+ 1756 ° C to -70 ° C) with hardness of HRC 55
2. With penetrating hardening characteristics, ensure that the metal is evenly hardened throughout the workpiece, prolong service life and maintain accuracy

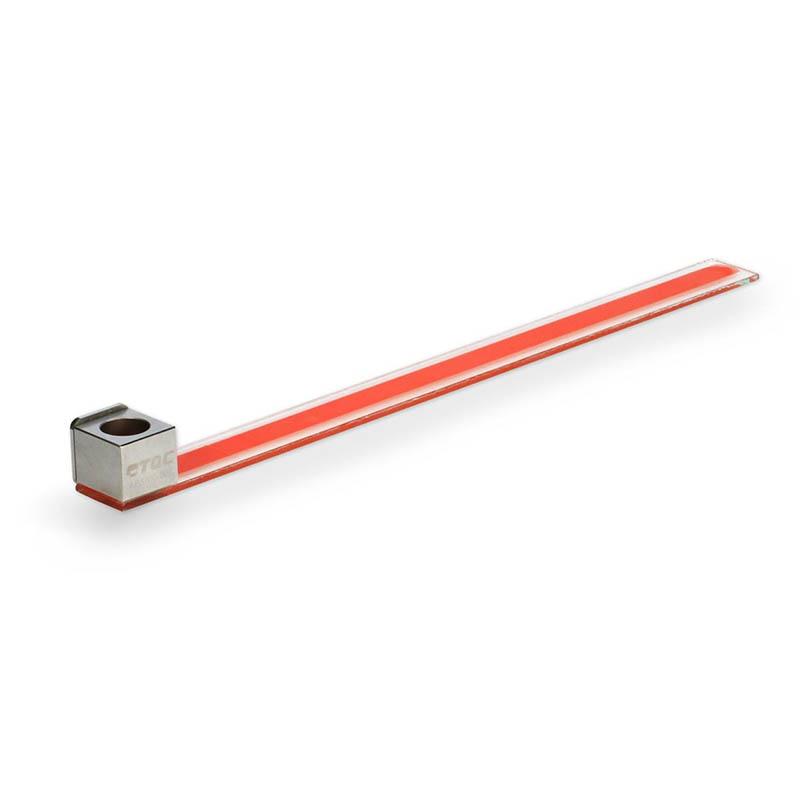

3. Standard equipped with guide plate, can be stretched directly on the narrow Glass panel, easy to operate

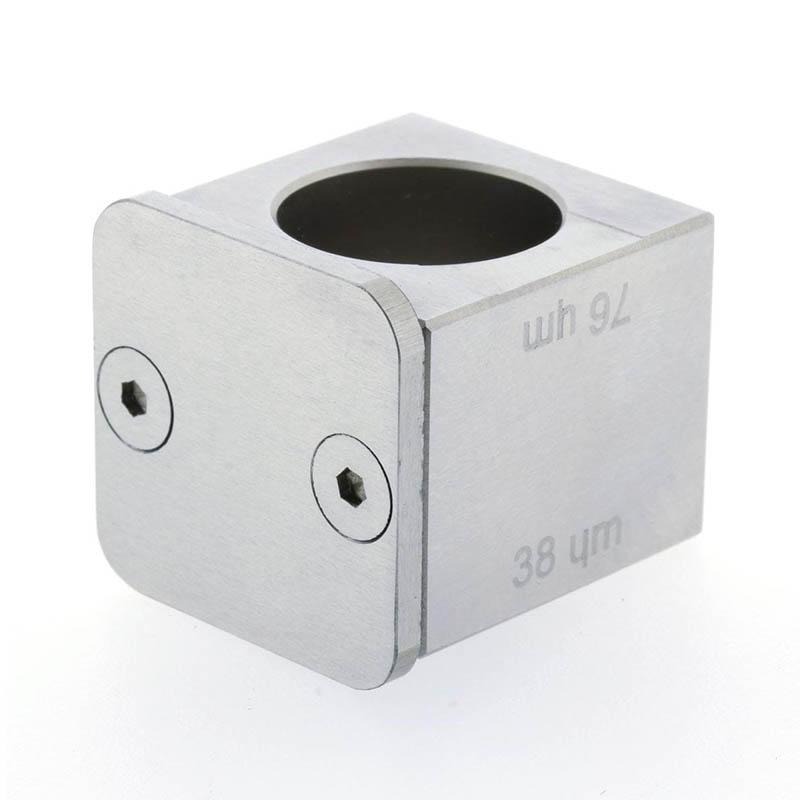

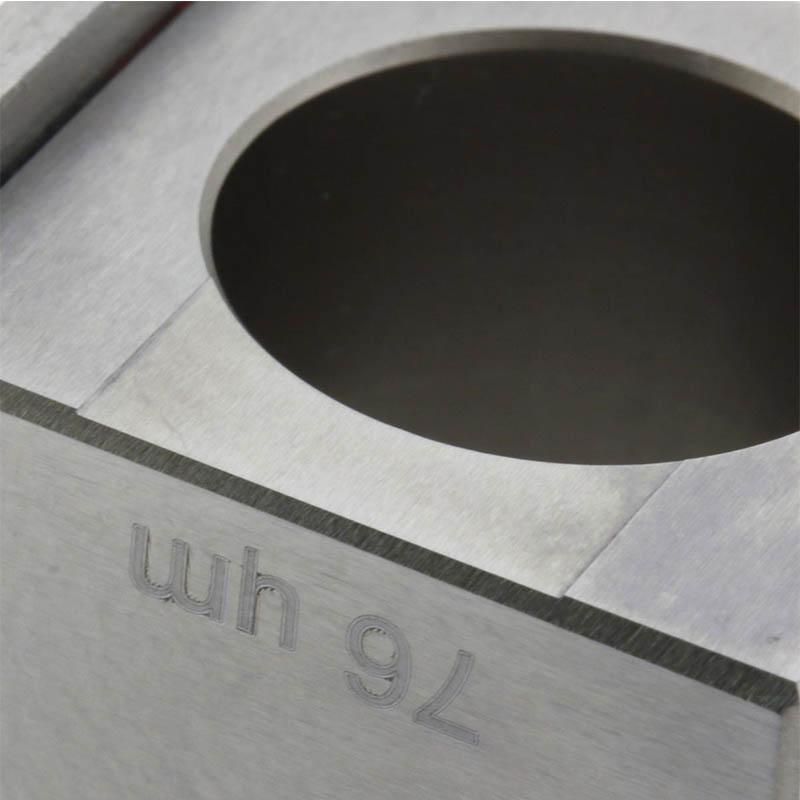

4. Cube double-sided design, providing 38/76μm two wet film thickness options
5. Spreader width 12mm, accuracy +/- 2μm, ensure film uniformity
Principle
The Film Applicator scrapes evenly on the surface of the test plate with a cube applicator, and controls the film film thickness with a predetermined film thickness gap. The guide plate ensures stable stretching on the narrow Glass panel for an accurate Spreader process.
Applications
Film Testing, Drying Time Recorder Test Board Painting
Steps
1. Place the cube applicator on the surface of the test board
2. Use guides to ensure stable stretching on narrow Glass panels
3. Evenly scrape paint film to predetermined Film thickness
4. Clean the equipment after completion
Notice
• Make sure the guide plate is firmly installed before use
• Avoid use on non-designated surfaces
• Regular cleaning and maintenance to maintain accuracy
Avoid collision and corrosion when storing
