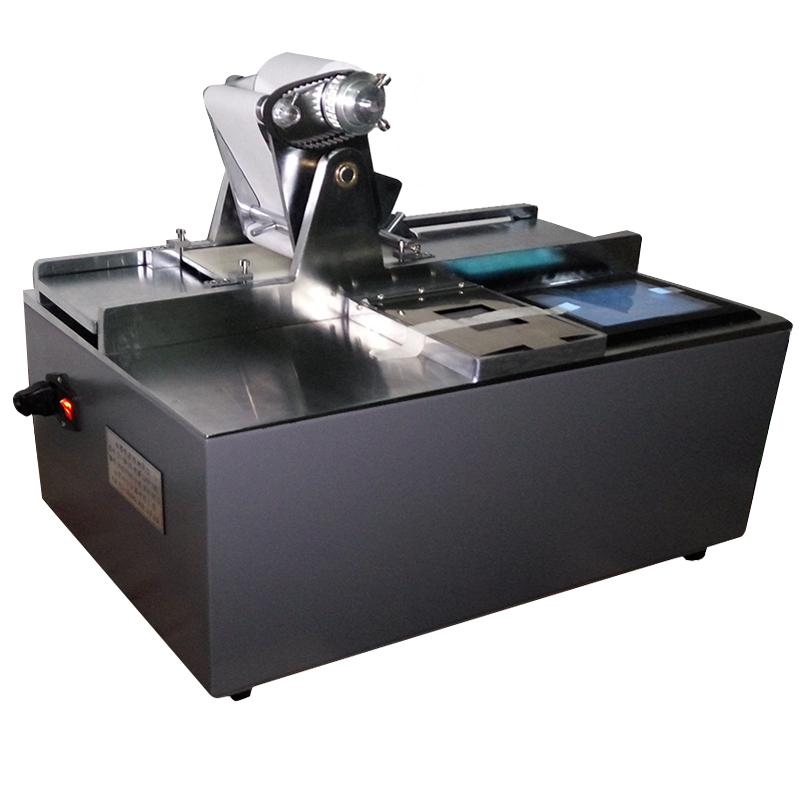

ZY-YM-20 Ink absorbency Tester printing Ink Absorption Tester 20cm ² Ink area

Name: ZY-YM-20 Ink absorbency Tester printing Ink Absorption Tester 20cm ² Ink area
Brand: zy
SKU: NB022862
Price: 2750.0 USD
Availability: PreOrder

$ 2750.00Ex works

Using 15.5cm/min ink wiping speed, equipped with 0.1mm ink coating platen, the test process is precisely controlled by 4.3 inch Touchscreen, which can accurately determine the absorption capacity of the material to the inks vehicle.

Model

ZY-YM-20

Get Quote

Category : Ink Absorption Tester

Brand : zy

SKU : NB022862

Service :The delivery and service By NBCLab.Com

Overview

Printing Ink Absorption Tester ZY-YM-20 is a domestic (CN) instrument for measuring the absorption performance of standard inks on paper or Cardboard over a certain time and area. It is mainly used to measure the performance of ink absorption on paper and Cardboard over a specified time and area. The Ink Absorption directly affects the penetration of inks to paper and the conjunctiva situation, and affects the drying and surface performance of paper ink film.

Features

1.Wiping speed: 15.5 +/- 25px/min 2. Inked platen opening area: 20 +/- 10px ² 3. Film thickness: 0.1 +/- 0.02mm 4. Ink absorption time: 120 +/- 5s 5. Human-machine interface: 4.3-inch color Touchscreen control self-developed system 6. Power supply: 220V/50Hz 7. Ambient Temperature: 20 +/- 10 ℃ 8. Working environment humidity: < 85% 9. dimensions: 490 * 280 * 350mm 10.Weight: 45kg 11. Power consumption: 110W

Principle

The instrument applies standard inks on the specified opening area through an ink-coated platen, and measures the absorption performance of inks on paper or Cardboard within a set time. Ink Absorption reflects the acceptance of inks by paper and the absorption capacity of vehicles, affecting the penetration of inks and the conjunctival process.

Standards

GB/T12911 "Determination of Absorbency of Cardboard inks"

ink erasing speed
15.5±25px/min
Opening area of ink-coated platen
20±10px²
Film thickness
0.1±0.02mm
Automatic control of ink absorption time
120±5s
Human Machine Interface
4.3\
power supply power
220v/50Hz、110W、1A
Operating temperature
20±10℃
relative humidity
＜85%
dimensions
490*280*350mm
weight
45kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
