Domestic (CN) ZY-KGZ-2 paper sample rapid drying, vacuum heating drying test equipment

Name: Domestic (CN) ZY-KGZ-2 paper sample rapid drying, vacuum heating drying test equipment
Brand: zy
SKU: NB022882
Price: 2590.0 USD
Availability: InStock

$ 2590.00Ex works

Vacuum heating drying technology, Vacuum Level up to -0.098MPa, pumping 80-120 liters/min, drying time is only 4-6 minutes, with intelligent PID temperature control and over-temperature alarm function, easy and safe operation.

Model

ZY-KGZ-2

Get Quote

Category : Other Instruments

Brand : zy

SKU : NB022882

Service :The delivery and service By NBCLab.Com

Overview

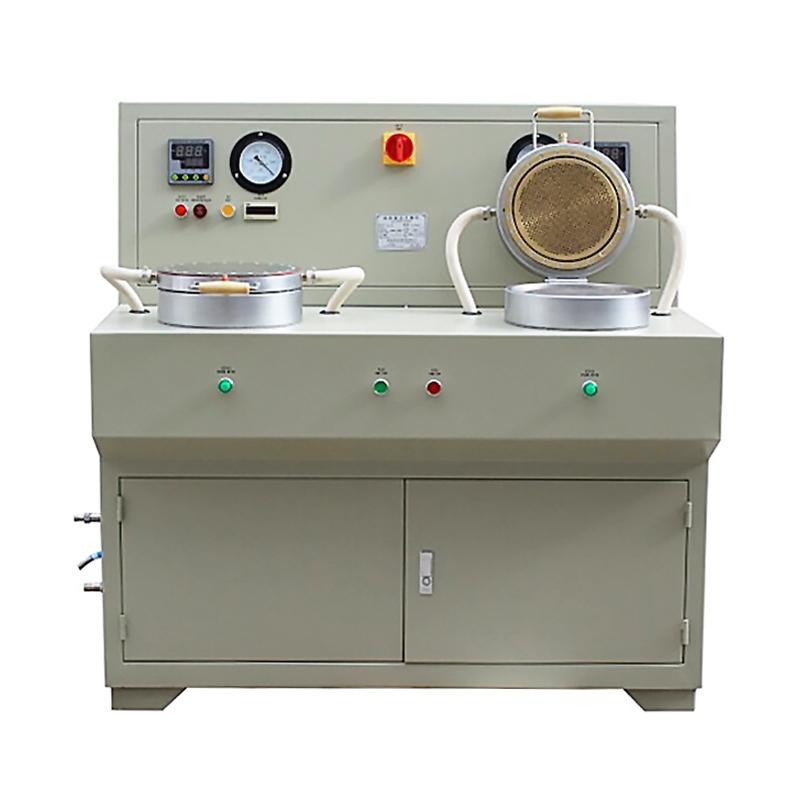

The pattern rapid drying machine (model: ZY-KGZ-2) is a domestic (CN) test equipment mainly used for rapid vacuum heating drying of wet paper samples with a diameter of not more than φ 200mm. It is suitable for identifying Pulp performance and formulating Refining process specifications. The equipment can also be used for vacuum drying of Miscellaneous similar film thickness below 10mm and diameter less than 200mm.

Features

1. High Temperature Control Accuracy, High Vacuum Level, Large Extraction Volume. 2. Vacuum heating drying method is adopted, and the drying speed is fast. 3. Do not use circulating water to chill down during intermittent use. 4. The heating element adopts an integrated heating plate, which has a long lifespan and is easy to replace. 5. Provide glycerin heating and Hot Plate heating in two ways. 6. Vacuumpump adopts three-stage centrifugal design with a diameter of 150mm and 28-tooth large impeller, and the motor power is 2.2KW to ensure high Vacuum Level and large pumping capacity. 7. The temperature control system adopts intelligent PID control, with short circuit, disconnection, over-temperature alarm function, high measurement and control accuracy, safe and reliable. 8. The vacuum system uses electromagnetic control for easy operation.

Principle

In the vacuum environment, heating elements (optional glycerin heating or Hot Plate heating) are used to provide heat to accelerate water evaporation, while Vacuumpump extracts air to reduce environment pressure and improve drying efficiency.

Applications

Pulp performance appraisal, Refining process specification formulation, Vacuum drying of thin fiber samples

Specimen diameter
≦200mm
Vacuumpump Vacuum Level
-0.092~-0.098MPa
Vacuumpump pumping capacity
80~ 120 liters/min
Drying temperature
≤120℃
vacuum pressing force
≈0.1MPa
drying time
(Basis Weight 30-80g/m2): 4-6 minutes
heating power
1.5Kw*2
Vacuumpump motor power
2.2Kw
dimensions
1200*710*1200mm
