Overview

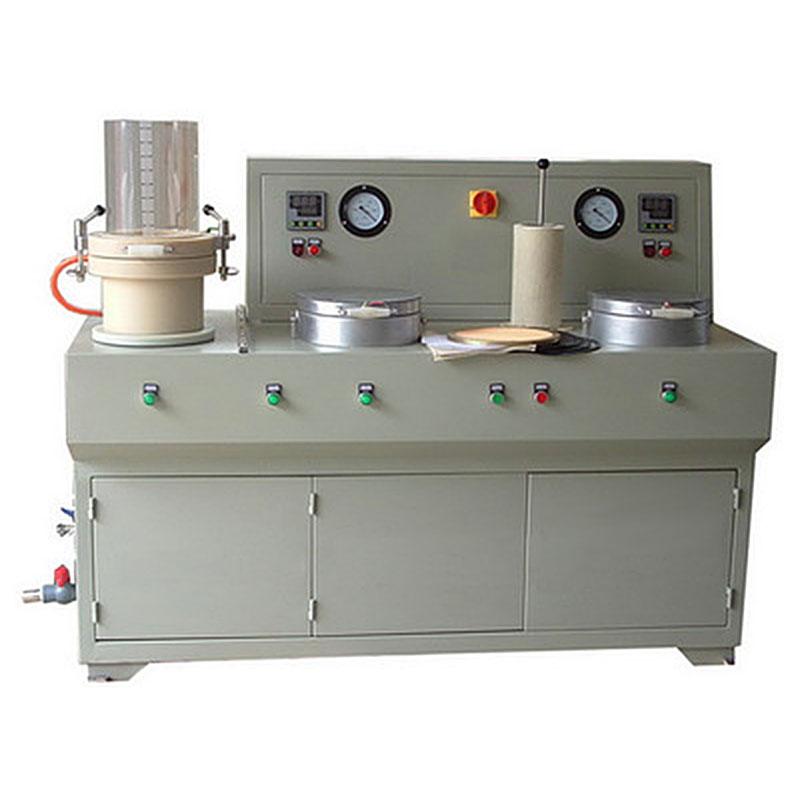

Sheet shaper (model ZY-CZ-1) is an experimental equipment with integrated sheet and vacuum drying functions, which is suitable for research and experiments in paper research institutes and paper mills. The equipment can copy Pulp into a paper pattern of φ 200mm, and perform physical strength inspection after drying on the dryer to identify Pulp raw material performance and Refining process specifications.
Features
1. Copy sheet and vacuum drying integrated design, white water circulation system; 2. Electric sizing, compressed gas homogenization and manual homogenization function; 3. Electric valve water discharge, Vacuumpump assisted suctionfiltration molding, can copy ultra-thick paper samples; 4. Equipped with resilience suction and compression device in the drying body, the paper sample drying Film thickness can reach 10mm; 5. Vacuumpump adopts automatic anti-oil return device; 6. Using three-stage centrifugal special Vacuumpump, based on the principle of Venturi tube and centrifugal vacuum technology, it has the characteristics of high negative pressure, small size, compact structure, large air extraction volume, high Vacuum Level, no maintenance and strong environmental adaptability.
Principle
The device uses electric sizing and compressed gas or manual homogenization Pulp, and uses Vacuumpump to assist suctionfiltration forming to copy the paper sample, and then vacuum drying in the dryer. Vacuumpump uses the Venturi tube principle and centrifugal vacuum technology to generate high negative pressure to ensure rapid drying and forming of the paper pattern.
Applications
Research and Experiment of Paper Research Institutes and Paper Mills
Steps
1. Prepare Pulp and start the equipment; 2. Use electric or manual sizing and homogenization; 3. Form the pattern by Vacuumpump assisted suctionfiltration; 4. Place the sample in the dryer for vacuum drying; 5. Remove the sample after drying for physical strength inspection.
Notice
* Equipment requires continuous water supply; * drying temperature must not exceed 120 ° C; * pay attention to the safety of Vacuumpump and heating system during operation; * regularly check equipment parts to ensure normal operation; * pay attention to equipment protection when used in harsh environments.
