Domestic (CN) ZY-CP-1 Sheet Former, Sheet Reader, 200mm DiaMeter Simple Sheet Reader

Name: Domestic (CN) ZY-CP-1 Sheet Former, Sheet Reader, 200mm DiaMeter Simple Sheet Reader
Brand: zy
SKU: NB022885
Price: 1379.0 USD
Availability: InStock

$ 1379.00Ex works

Equipped with a 200mm diaMeter pick-up cylinder and an 8-liter capacity, the manual Stirrer works in tandem with an 80-mesh forming filter for uniform Pulp distribution and efficient dehydrating.

Model

ZY-CP-1

Get Quote

Category : Other Instruments

Brand : zy

SKU : NB022885

Service :The delivery and service By NBCLab.Com

Overview

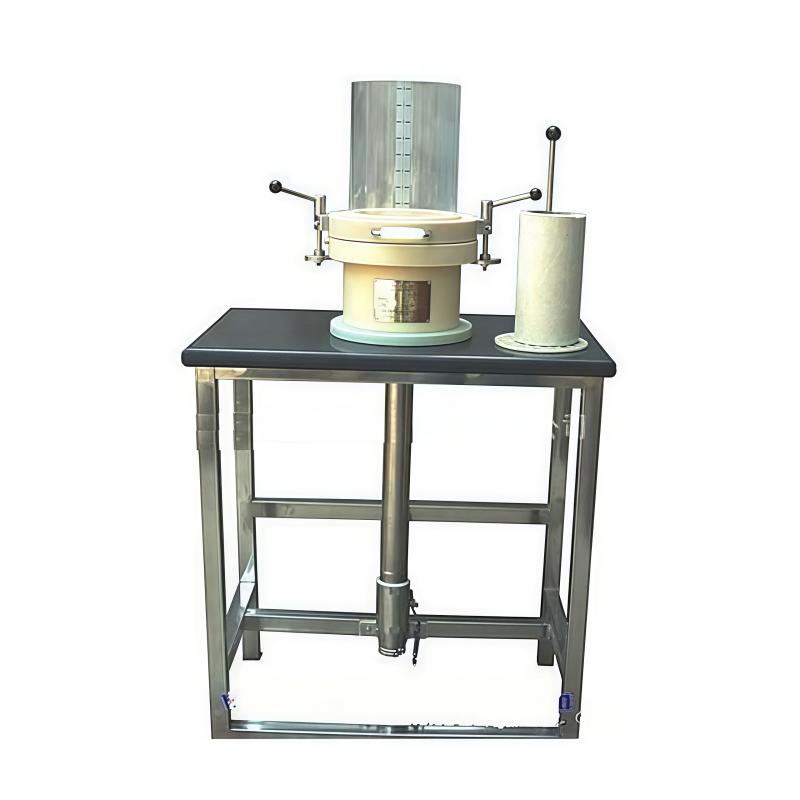

The ZY-CP-1 Sheet Former is a simple sheet copying device that can copy Pulp into sheets with a diameter of 200mm. The device has a capacity of 8 liters and dimensions of 940 * 600 * 1400mm.

Features

1. The diameter of the extraction cylinder is 200mm and the capacity is 8 liters 2. Equipped with manual Stirrer, 80 mesh forming filter and platen roller 3. Compact shape, size 940 * 600 * 1400mm

Principle

Pulp is uniformly mixed by manual Stirrer, and then filtered with an 80 mesh forming filter, compacted by a platen roll to form a 200mm diameter sheet.

Steps

1. Put Pulp into Copy Cylinder 2. Use Manual Stirrer to Stir Pulp Evenly 3. Through the molding filter to filtrate the molding 4. Compact the sheet with a platen roller Step 5 Remove the formed sheet

Picking cylinder diameter
200mm
Overtake capacity
8 liters
dimensions
940*600*1400mm
Manual Stirrer
1 piece
Molded filter
80 mesh 1 piece
platen roller
1 piece
