Overview

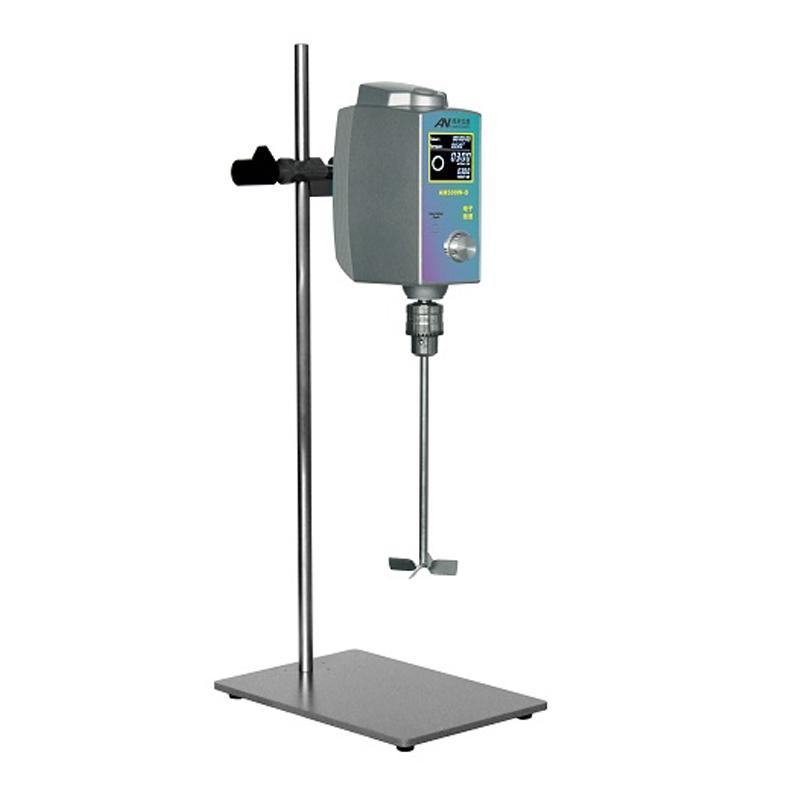

The AN AM300W-O laboratory electric Stirrer is driven by a brushless DC motor and is suitable for Stir mixing of low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise and maintenance-free. The Stir speed is controlled by a microprocessor, which can effectively compensate for the speed changes caused by load changes and Power frequency fluctuations in a timely manner, and the constant speed is reliable.
Features
1. Driven by brushless DC motor, maintenance-free
2. Microprocessor control speed, constant speed and reliable
3. Built-in automatic overload protection device
4. Knob control, easy to operate
5. Stepless adjustment of speed
6. Digital Display Settings and Actual Output Stirring RPM
7. Run timing control
8. Stirring of High viscosity Medium and Stock
Principle
Stir and mix is the process of combining materials from several different sources under the action of external energy. Stir can be applied to homogenize compatible liquids, as well as to dissolve and mix solid particles in liquids. Adjusting the equilibrate for differences in temperature or concentration makes the Stir process more efficient. Accelerating the stirring speed of the liquid speeds up the dissolving process and increases the speed of chemical reactions.
Applications
Schools, universities, biotechnology, chemical, food, and other industries
Steps
1. Connect power supply AC 100~ 240V
2. Select the Impeller and fix it to the quick turn chuck
3. Set the speed range through the combined control knob 30~ 2000rpm
4. Set Timer Range 1~ 6000min
5. Stirrer
6. Observe the rotational speed data displayed by the LCD
7. Turn off the power after the experiment is completed
Notice
• Permissible Ambient Temperature ≤ 40 ℃
• Allowable relative humidity ≤ 80%
• Stirring capacity does not exceed 50L
• Maximum viscosity does not exceed 50000mPa.s
• Pay attention to the status of overload protection function
• Make sure the Impeller is firmly fixed
