Overview

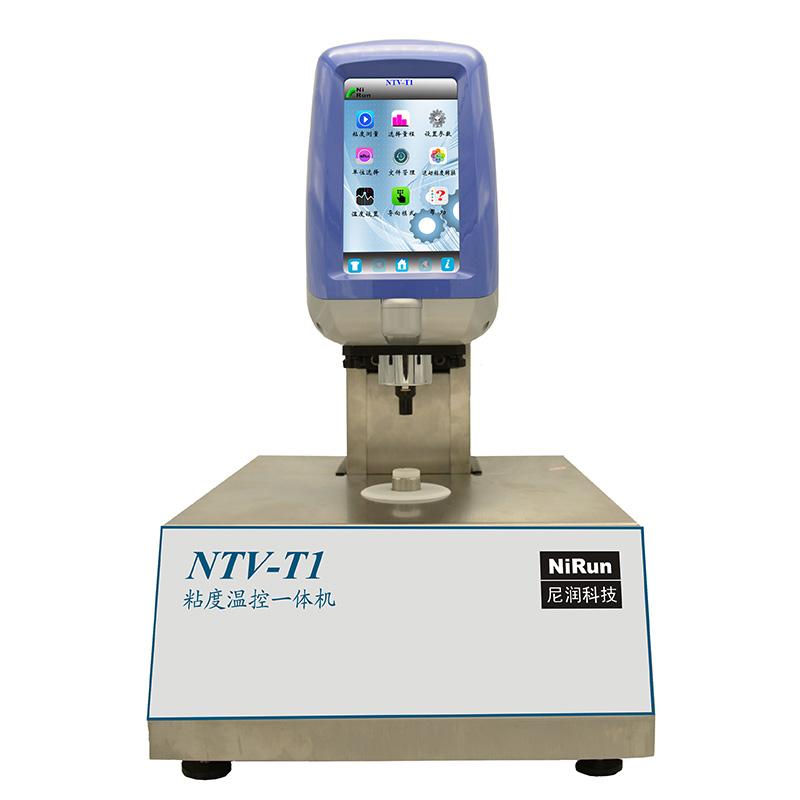

The viscosity temperature control machine is a device that integrates viscosity measurement and temperature precision control, breaking through the market SHANGFEN body machine combination method. The system is composed of a 7-inch Touchscreen host, a small sample adapter, an SC4 rotor and a temperature controller. The sample dosage is only 2-16ml. The cylindrical geometry of the SC4 rotor ensures accurate viscosity measurement, and the electric lift control is accurately positioned. Easy to load, unload and clean.
Features
1. Integrated viscosity measurement and temperature control in one, breaking through the limitations of the split machine.
2. Sample usage is small, only 2-16ml, SC4 rotor provides accurate viscosity measurement.
3. Electric control lifting, accurate positioning, easy loading, unloading and cleaning.
4. The small sample cartridge is tightly connected with the thermostat to accurately thermostatic, reduce temperature inhomogeneity and shorten the thermostatic time.
5. Comes with password protection temperature and viscosity correction coefficient, allowing users to correct themselves.
6. Support continuously variable speed measurement viscosity, input speed directly reflects the full scale.
7. Support external U disk data storage, single point, continuous, timing storage is optional.
Principle
The viscosity measurement system is combined with the SC4 rotor through a small sample adapter to perform sample thermostatic under the control of a thermostat. Stir action of the rotor and a small sample volume reduce temperature inhomogeneity and achieve fast thermostatic. The system controls the Rotor speed through stepless transmission, measures viscosity data, and allows the user to correct the temperature and viscosity coefficient. The data can be stored by USB flash drive.
Applications
Chemical, pharmaceutical, food, petroleum, paint, scientific research laboratories
Steps
1. Connect the power supply and turn it on.
2. Install a small sample cartridge and SC4 rotor.
3. Set temperature parameters for sample thermostatic.
4. Select RPM and start viscosity measurement.
5. Save the data to the USB flash drive as needed.
Notice
• The sample dosage is controlled within the range of 2-16ml.
• Make sure the rotor is installed correctly to avoid measurement errors.
• Power frequency check before operation.
• Regularly clean the sample cartridge and rotor to maintain accuracy.
• Keep correction factors safe when using password protection.
