Overview

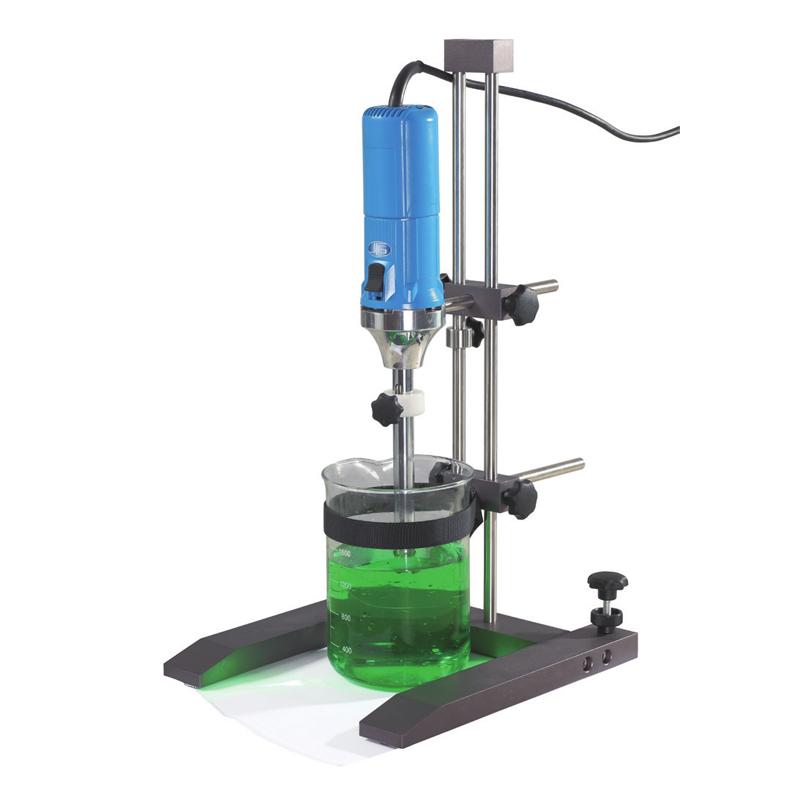

B-500-B homogeneous Disperser is a handheld/bracket support small rapid tissue homogenization, dispersion and emulsification device, using a claw high shear head structure, speed up to 30000rpm, suitable for 0.1-50 ml, 10-5000ml, 100ml-8000ml, 100-40000ml liquid/liquid, liquid/solid samples.
Features
1. Disperse sample viscosity up to 10000mPas.
2. Any set of stators and rotors can be interchanged, sharing the same dispersing shaft, saving costs.
3. High-mass 316L stainless steel dispersion head, corrosion resistance, high temperature disinfection resistance.
4. Automatic overload protection function extends the life of the motor.
5. The speed can be adjusted continuously for 6 gears, ensuring a good dispersion effect.
6. Triple safety measures: overload protection, smooth start, safety switch.
Principle
The sample is cycled into the narrow space between the stator and rotor in high-speed relative motion, and is quickly cut and crushed. Tissues such as muscle, liver, breast, etc. can be completely homogenized in 10-30 seconds.
Applications
Biology, gene research, tissue crushing, cell plasticization, pathological analysis, oil-water emulsification, nanomaterial dispersion, dairy homogenization, coalescence reaction, daily cosmetics, inks coatings, fine chemicals, pesticides, prospecting, environmental protection, energy
Steps
1. Select the dispersion head suitable for the sample volume.
2. Place the sample in a container.
3. Turn on the device and adjust to the desired speed gear.
4. Perform homogenization, dispersion or emulsification.
5. Turn off the device after processing is complete.
Notice
• Power frequency matching (110-120V/60Hz or 220-240V/50-60Hz) before use.
• Pay attention to the safety switch and overload protection function when operating.
• Only used in 0-40 ℃, 85% relative humidity environment.
• Avoid long-term overload operation to extend equipment life.
• Be aware of equipment capacity limitations when handling high viscosity samples.
