Overview

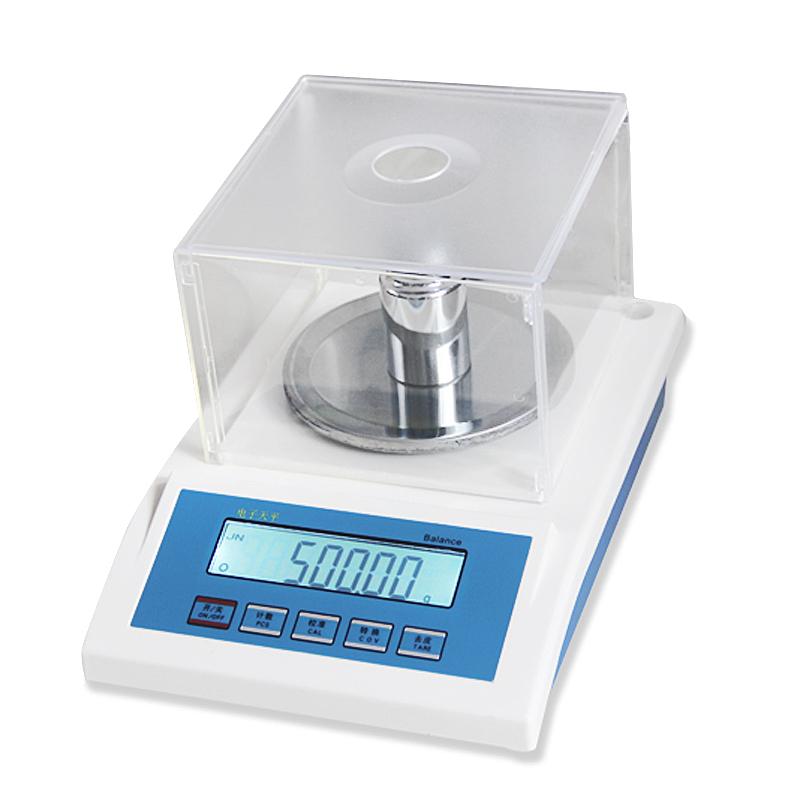

JY6002 Electronic Balance is a mass measuring instrument of JINGQI brand. It uses strain sensor technology and has the characteristics of simple structure and low cost. It is suitable for accurate weighing and mass analysis.
Features
1. Adopt high stability strain Sensor, after high and low temperature aging treatment, to ensure accurate weighing under harsh working conditions.
2. Equipped with limit protection device to prevent Sensor overload damage.
3. The software system intelligently matches the Sensor to ensure product conformity.
4. Linear and partial load error compensation system to reduce human error.
5. STN high contrast ratio LCD display, the display is clear and sharp.
6. Can be powered by a 9V dry battery.
7. Fully transparent design, larger weighing range, external power supply, backlight intelligent control, LCD large font display.
Principle
Electronic Balance detects the mass of the object through the strain sensor, which deforms when stressed and converts it into electrical signal output to achieve accurate weighing.
Applications
Scientific research institutions, colleges and universities, biology, industrial and mining enterprises, and other fields
Steps
1. Automatic boot detection.
2. Perform auto calibration or linear calibration (weight needs to be configured).
3. Place objects for basic weighing and support peeling function.
4. Adjust the number of samples when using the counting function.
5. Select g, kg, ct, oz, lb for unit conversion.
6. Connect the computer or printer to output data through the RS232 interface.
Notice
• Power frequency is 220V/50Hz +/- 1Hz.
• Pay attention to limit protection when overloading to avoid damage to the Sensor.
• Complete weights are required for linear calibrating.
• Automatic alarm in case of failure, timely treatment.
• Pay attention to the battery status when using dry battery power.
