Overview

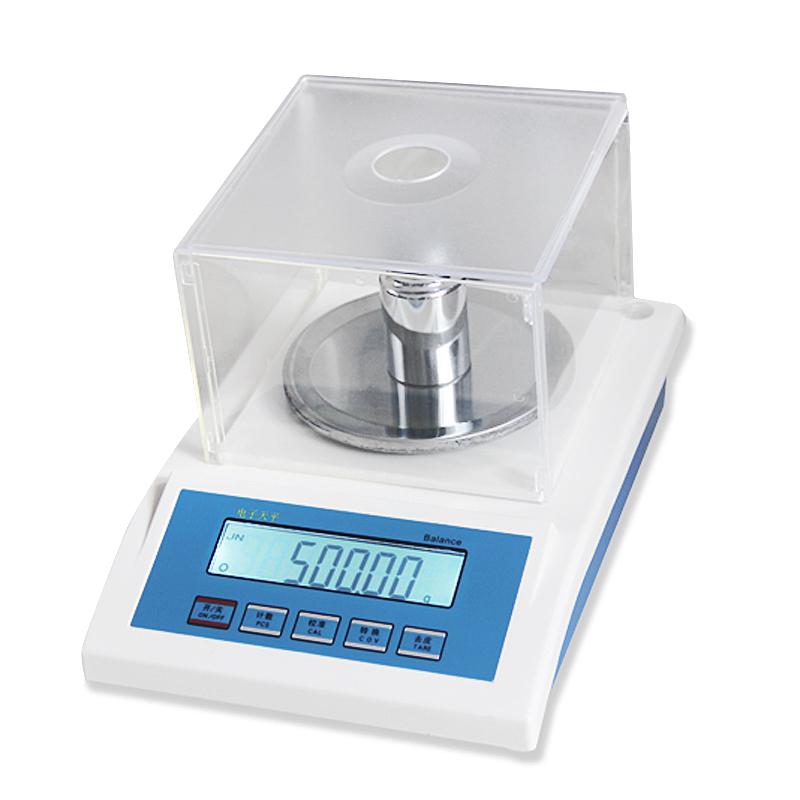

The JY20002 Electronic Balance is a mass measuring instrument from the JINGQI brand that uses technologies such as strain sensors for accurate weighing and mass analysis.
Features
1. High stability strain Sensor, after high and low temperature aging treatment to ensure accurate weighing under harsh conditions
2. Equipped with Limit Protection Device to Prevent Sensor Overload Damage
3. The software system intelligently matches the Sensor to ensure product conformity
4. Linear and partial load error compensation system to reduce human error
5. STN high contrast ratio LCD display, clear and sharp display
6. Support 9V dry battery power supply
7. Fully transparent design
8. Weighing range is wider
9. External power supply
10. Backlight intelligent control, clear reading
11. LCD large font display
Principle
Electronic Balance measures the mass of objects through induction technologies such as strain Sensor. The strain Sensor has a simple structure and low cost, but its accuracy is limited.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Automatic boot detection
2. auto calibration (external calibrated)
3. Linear calibrated (complete set weight needs to be configured)
4. Basic weighing
5. Weighed and peeled in full
6. Automatic zero return
7. Counting function, adjustable sample number
8. Unit conversion (g, kg, ct, oz, lb)
9. Connect a computer or microprinter (via RS232 interface)
10. Automatic fault alarm
Notice
* Linear calibrated set weight required
* Power frequency 220V/50Hz +/- 1Hz
* Attention Sensor Overload Protection
* Pay attention to battery specifications when using dry battery power
