Overview

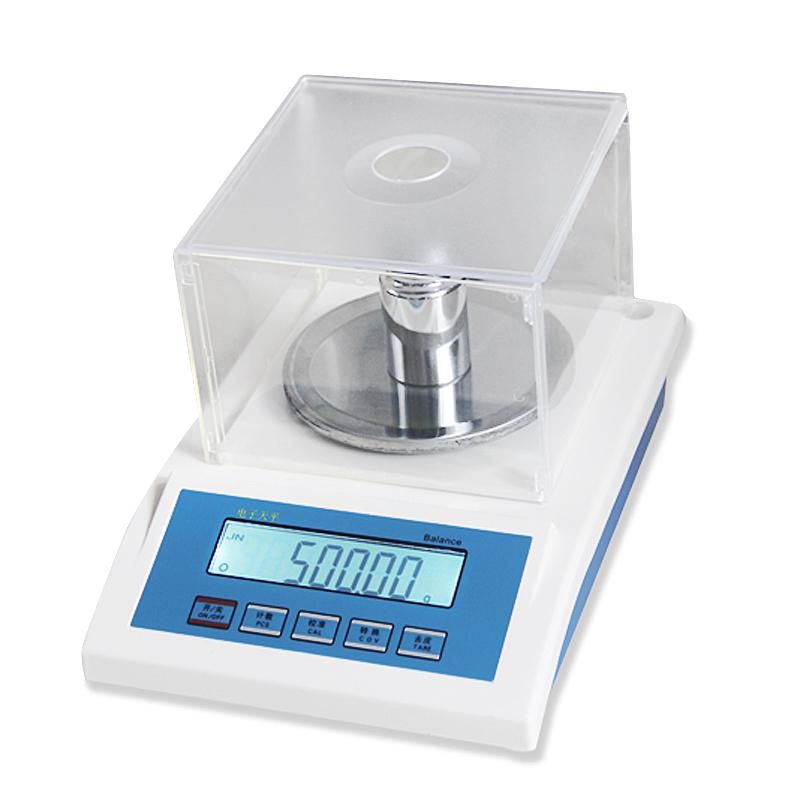

JY30002 Electronic Balance is a precision weighing instrument of JINGQI brand, using strain sensor technology, simple structure and low cost, for accurate weighing of object mass and mass analysis.
Features
1. High stability strain Sensor, after high and low temperature aging treatment to ensure accurate weighing under harsh conditions
2. Equipped with Limit Protection Device to Prevent Sensor Overload Damage
3. The software system intelligently matches the Sensor to ensure product conformity
4. Linear and partial load error compensation system to reduce artificial weighing errors
5. STN high contrast ratio LCD display, clear and sharp display
6. Support 9V dry battery power supply
7. Fully transparent design, larger weighing range, external power supply, backlight intelligent control, LCD large font display
Principle
Electronic Balance detects the mass of an object through a strain sensor, which converts the mass signal into an electrical signal for processing and display.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Automatic boot detection
2. Perform auto calibration (external calibrated) or linear calibrated (weight required)
3. Select the weighing unit (g, kg, ct, oz, lb)
Step 4 Place items for weighing
5. Can use peeling, counting and other functions
6. Optional RS232 interface to connect to computer or printer to output data
Notice
• Power frequency 220V/50Hz +/- 1Hz
• Linear calibrated sets of weights need to be configured
• Pay attention to Sensor limit protection to avoid overloading
• Pay attention to the battery power when using dry battery power
