Overview

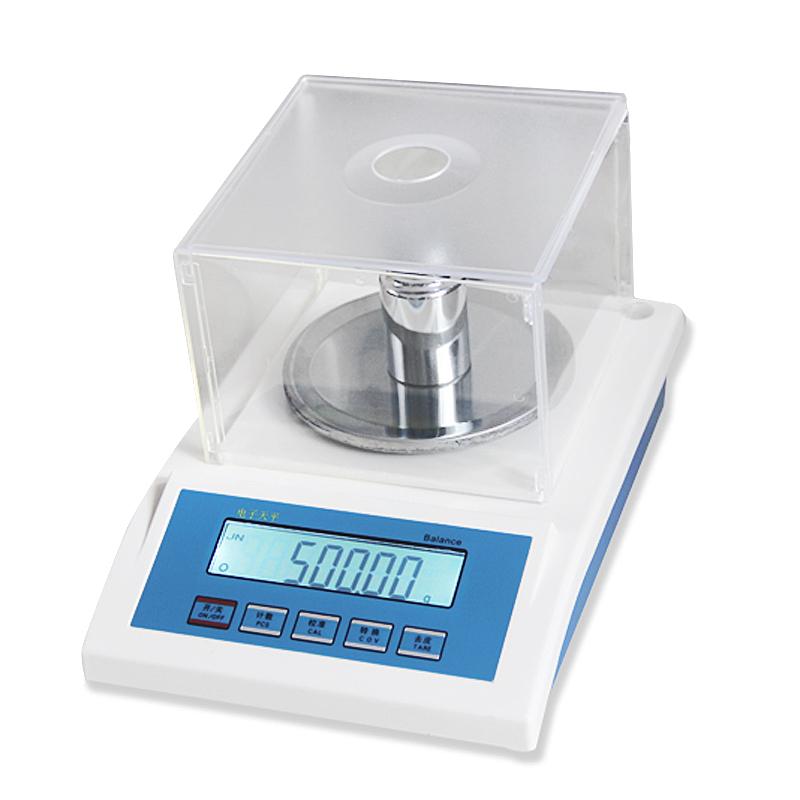

The YP30001 Electronic Balance is a precision weighing instrument from the JINGQI brand for accurately weighing the mass of objects. It uses strain sensor technology, which is simple in structure and low in cost, and is suitable for mass measurement and analysis in a variety of fields.
Features
1. Adopt high stability strain Sensor, after high and low temperature aging treatment, to ensure accurate weighing under harsh working conditions.
2. Equipped with limit protection device to prevent Sensor overload damage.
3. The software system intelligently matches the Sensor to ensure product conformity.
4. Linear and partial load error compensation system to reduce artificial weighing errors.
5. STN high contrast ratio LCD display, the display is clear and sharp.
6. Support 9V dry battery power supply, external power supply design.
7. Fully transparent design, wider weighing range, backlight intelligent control, LCD large font display.
8. With a variety of functions: full scale peeling, basic weighing, automatic zero return, adjustable counting function, unit conversion (g, kg, ct, oz, lb), automatic boot detection, auto calibration, linear calibrate, RS232 interface connection, two printouts, automatic fault alarm.
Principle
Electronic Balance detects the mass of an object through a strain sensor, which converts the mass signal into an electrical signal for processing and display. This model uses a strain sensor, which has a simple structure and low cost, but limited accuracy.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Automatic boot detection.
2. Perform auto calibration or linear calibration (weight needs to be configured).
3. Place objects for weighing, support peeling, automatic zero return and counting functions.
4. Use the unit conversion function to select the desired unit.
5. Optional connection to a computer or printer to output data.
Notice
* Power frequency is 220V/50Hz +/- 1Hz before use.
* Avoid overloading to prevent damage to the Sensor.
* Linear calibrated sets of weights are required.
* Note that 9V dry batteries are used when the battery is powered.
