Overview

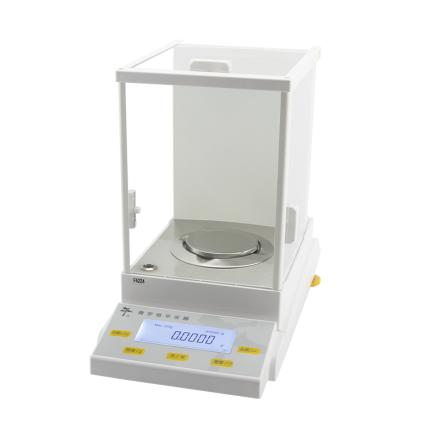

The FA1104N Electronic Balance is a precision weighing instrument from the JINGQI brand for accurate mass measurement of objects. The product uses technologies such as strain Sensor, which is simple in structure and low in cost, and is suitable for mass analysis in a variety of scenarios such as laboratories.
Features
1. FA-N series electronic analytical Balance is accurate, stable, multi-functional and automated, meeting all laboratory mass analysis requirements;
2. Adopt high-performance MCS-51 single-chip microprocessor control to ensure high Accuracy of weighing results;
3. With RS232C standard signal output port, it can be connected to printers, computers and other equipment for extended use;
4. Fully transparent design, wider weighing range, external power supply, backlight intelligent control, LCD large font display;
5. Functions include automatic correction, adjustable integration time, adjustable Sensitivity, fault alarm, hanging weighing, de-tare weight, cumulative weighing, weighing unit conversion, counting function, printing function.
Principle
Electronic Balance uses strain Sensor, capacitive Sensor or electromagnetic equilibrating Sensor for mass measurement. The strain Sensor is simple in structure and low in cost, but has limited accuracy. It converts mass into electrical signal for processing.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Connect the power supply (voltage 220V/50Hz +/- 1Hz or 110V/60Hz);
2. Turn on Balance and perform automatic correction;
3. Place the object to be weighed on the pan (size φ 80mm);
4. Read the display results, you can use tare weight, cumulative weighing and other functions;
5. Optional connection printer or computer via RS232C interface expansion.
Notice
* Power frequency matching (220V/50Hz +/- 1Hz or 110V/60Hz);
* Automatic calibration before use to ensure accuracy;
* Avoid overloading weighing (range 0~ 110g);
* Keep the pan clean to prevent affecting the measurement results;
Check RS232C interface compatibility when connecting external devices.
