Overview

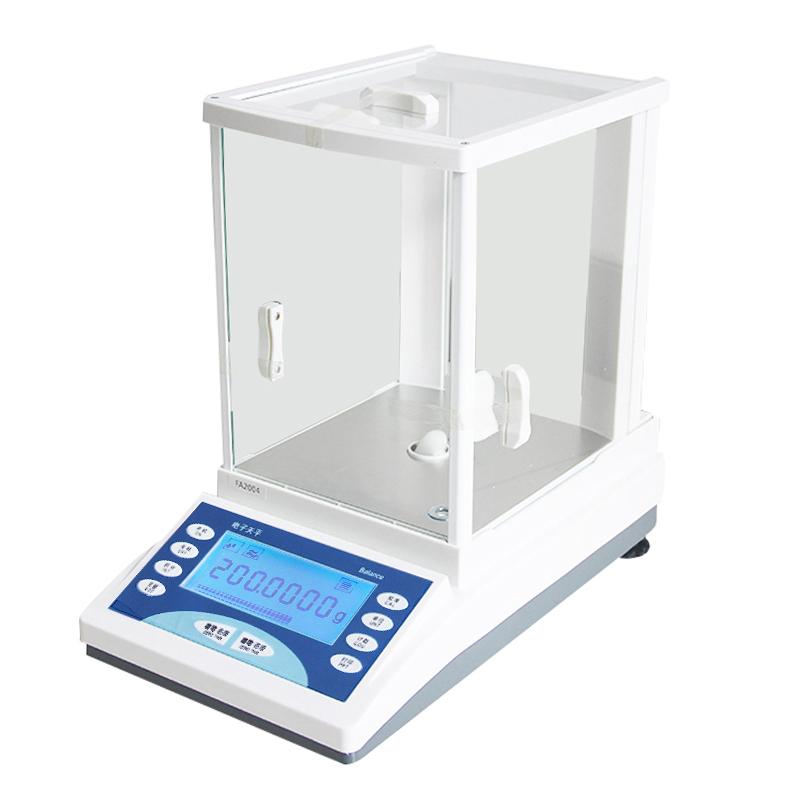

The FA1204N Electronic Balance is a precision weighing instrument from the JINGQI brand. It uses strain, capacitive or electromagnetic equilibrating Sensor technology for accurate measurement of object mass. The product has a simple structure and low cost, meeting the basic needs of the laboratory for mass analysis.
Features
1. FA-N series electronic analytical Balance is accurate, stable, multi-functional and automated, meeting all laboratory mass analysis requirements;
2. Adopt high-performance MCS-51 single-chip microprocessor control to ensure high Accuracy of weighing results;
3. With RS232C standard signal output port, it can be directly connected to printers, computers and other equipment for extended use;
4. Fully transparent design, wider weighing range, external power supply, backlight intelligent control, LCD large font display;
5. Support automatic correction, adjustable integration time, adjustable Sensitivity, fault alarm, hanging weighing, tare weight, cumulative weighing, weighing unit conversion, counting function, printing function.
Principle
Electronic Balance detects the mass of the object through a strain sensor, a capacitive sensor or an electromagnetic equilibrate sensor. The strain sensor is simple in structure, low in cost, but has limited accuracy. It is controlled by a high-performance MCS-51 single-chip microprocessor to ensure weighing Accuracy.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Connect the power supply and turn on Balance;
2. Perform automatic calibration to ensure accuracy;
3. Place the object to be weighed on the pan;
4. Read the display results, and perform operations such as tare weighting and cumulative weighing;
5. Optional connection to a printer or computer to expand functions through the RS232C interface.
Notice
* Power frequency meets specifications (220V/50Hz +/- 1Hz or 110V/60Hz);
* Automatic calibration before use to maintain accuracy;
* Avoid overloading and weighing, within the range of 0 to 120g;
Periodically check Sensor and Interface connections;
* Use in a clean environment to prevent dust from affecting performance.
