Overview

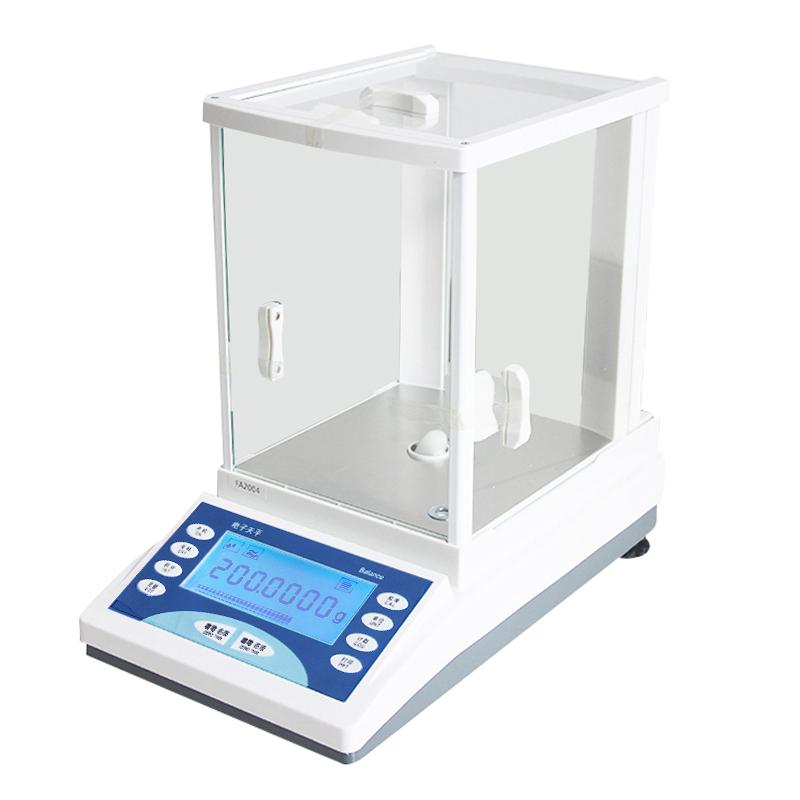

FA1604N Electronic Balance is a JINGQI brand instrument for accurately weighing the mass of objects. It uses strain Sensor, Capacitive Sensor or electromagnetic equilibrating Sensor, where the strain Sensor is simple in structure, low cost but limited accuracy.
Features
1. Set accurate, stable, multi-functional and automated in one, to meet all laboratory mass analysis requirements;
2. Adopt high-performance MCS-51 single-chip microprocessor control to ensure high Accuracy;
3. With RS232C standard signal output port, can be connected to printers, computers and other equipment;
4. Fully transparent design;
5. Weighing range is wider;
6. External power supply;
7. Backlight intelligent control, clear reading;
8. LCD large font display;
9. Automatic correction;
10. The integration time is adjustable;
11. Sensitivity adjustable;
12. Fault alarm;
13. Hanging weighing;
14. To tare weight;
15. Cumulative weighing;
16. Weighing unit conversion (grams, carats, ounces);
17. Counting function;
18. Print function.
Principle
Electronic Balance by strain Sensor, Capacitive Sensor or electromagnetic equilibrating Sensor to measure the mass of the object, wherein the strain Sensor structure is simple, low cost but limited accuracy.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Connect the power supply (voltage 220V/50Hz +/- 1Hz or 110V/60Hz/12W);
2. Turn on and wait for Balance self-test;
3. Place the object to be weighed on the pan (size φ 80mm);
4. Read the display results (weighing range 0~ 160g, readability accuracy 0.1mg);
5. Optional use of automatic correction, de-tare weight, cumulative weighing, unit conversion, counting or printing functions;
6. Connect external devices such as printers or computers through the RS232C interface.
Notice
* Power frequency matching (220V/50Hz +/- 1Hz or 110V/60Hz/12W);
Avoid overloading, and the weighing range should not exceed 160g.
* Regular automatic calibration to maintain accuracy;
* Clean the pan after use to prevent contamination from affecting the measurement;
Pay attention to fault alarm prompts and deal with abnormal situations in a timely manner.
Ensure safe fixation when hanging and weighing.
Check RS232C interface compatibility when connecting external devices.
