Overview

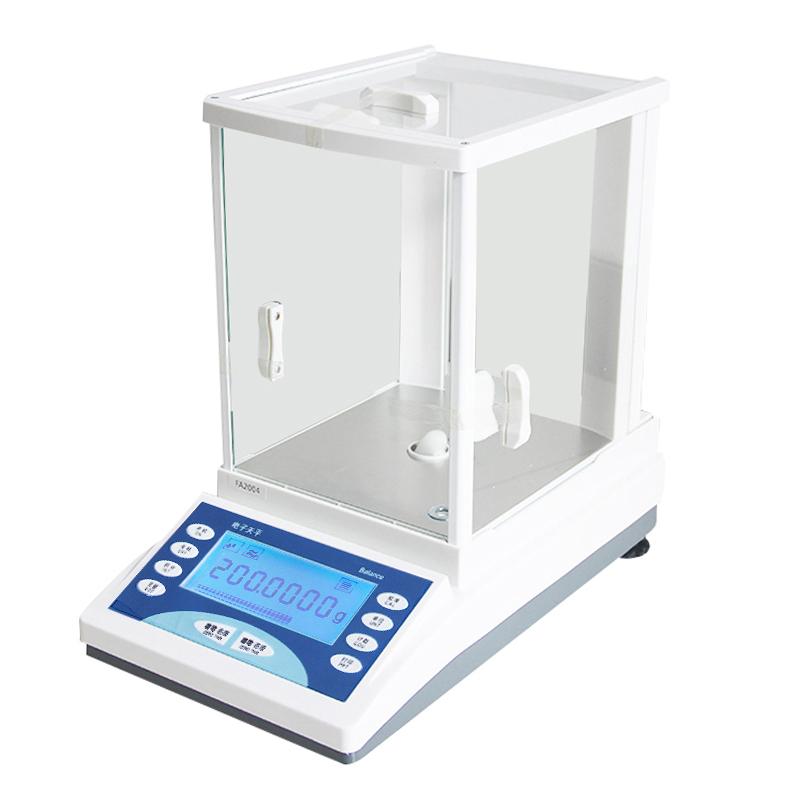

FA2004N Electronic Balance is a JINGQI brand of professional Electronic Balance, used to accurately weigh the mass of objects. The product uses advanced technologies such as strain Sensor, which has the characteristics of simple structure and low cost, and is suitable for mass measurement and analysis in various laboratories.
Features
1. FA-N series electronic analytical Balance is accurate, stable, multi-functional and automated, meeting all laboratory mass analysis requirements;
2. Adopt high-performance MCS-51 single-chip microprocessor control to ensure high Accuracy of weighing results;
3. With RS232C standard signal output port, can be directly connected to printers, computers and other equipment;
4. Fully transparent design;
5. Weighing range is wider;
6. External power supply;
7. Backlight intelligent control, clear reading;
8. LCD large font display;
9. Automatic correction;
10. The integration time is adjustable;
11. Sensitivity adjustable;
12. Fault alarm;
13. Hanging weighing;
14. To tare weight;
15. Cumulative weighing;
16. Weighing unit conversion (grams, carats, ounces);
17. Counting function;
18. Print function.
Principle
Electronic Balance uses strain Sensor, capacitive Sensor or electromagnetic equilibrating Sensor for mass measurement. The strain Sensor has simple structure, low cost, but limited accuracy.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Connect the power supply (220V/50Hz +/- 1Hz or 110V/60Hz);
2. Balance power on;
3. Place the object to be weighed on the pan (size φ 80mm);
4. Read the mass data on the display screen;
5. If you need to expand the function, you can connect the printer or computer through the RS232C interface.
Notice
* Power frequency meets specifications (220V/50Hz +/- 1Hz or 110V/60Hz);
The weighing range should not exceed 0 to 200g.
* Avoid overloading to protect the Sensor;
* Regular automatic calibration to ensure accuracy;
* Clean the pan after use and keep the equipment drying;
In case of malfunction alarm, check and contact a professional promptly.
