Overview

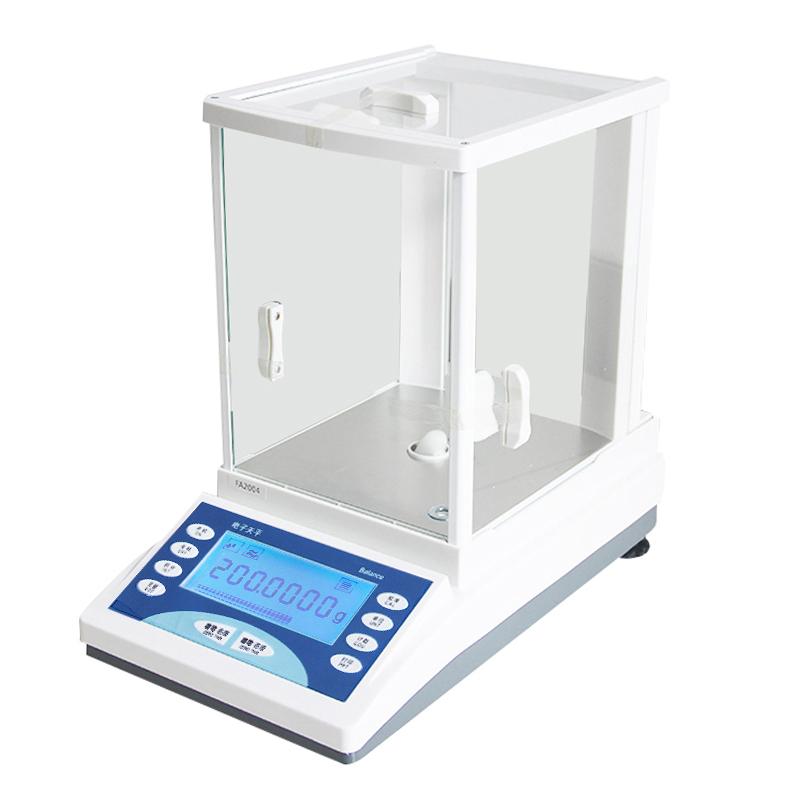

FA2104N Electronic Balance is a precision weighing instrument of JINGQI brand for accurate measurement of object mass. It adopts the design of strain Sensor, etc., with simple structure and low cost, and is suitable for mass analysis in various fields.
Features
1. FA-N series electronic analytical Balance is accurate, stable, multi-functional and automated, meeting all laboratory mass analysis requirements;
2. Adopt high-performance MCS-51 single-chip microprocessor control to ensure high Accuracy of weighing results;
3. With RS232C standard signal output port, it can be directly connected to printers, computers and other equipment for extended use;
4. Fully transparent design, wider weighing range, external power supply, backlight intelligent control, LCD large font display;
5. Functions include automatic correction, adjustable integration time, adjustable Sensitivity, fault alarm, hanging weighing, de-tare weight, cumulative weighing, weighing unit conversion, counting function, printing function.
Principle
Electronic Balance detects the mass of objects through sensors (such as strain sensors). Strain sensors are simple in structure and low in cost, but have limited accuracy.
Applications
Scientific research institutions, colleges and universities, biological, industrial and mining enterprises, and other fields
Steps
1. Connect the power supply (voltage 220V/50Hz +/- 1Hz or 110V/60Hz);
2. Open Balance and wait for initialization;
3. Place the object to be weighed on the pan (size φ 80mm);
4. Read the display results, you can use tare weight, cumulative weighing and other functions;
5. If you need to expand, connect the printer or computer through the RS232C interface.
Notice
* Power frequency meets specifications (220V/50Hz +/- 1Hz or 110V/60Hz) to avoid voltage instability;
* The weighing range does not exceed 210g, the accuracy is 0.1mg, do not overload;
Automatic calibration is performed before use to ensure accuracy.
* Keep the pan clean to avoid affecting the weighing results;
When connecting external devices, check RS232C interface compatibility.
In case of malfunction alarm, check and deal with it in time.
